Corvette Stingray, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Image Display Camera System
>>
Wiring Schematics and Routing Diagrams
>>
Image Display Camera Schematics
>>

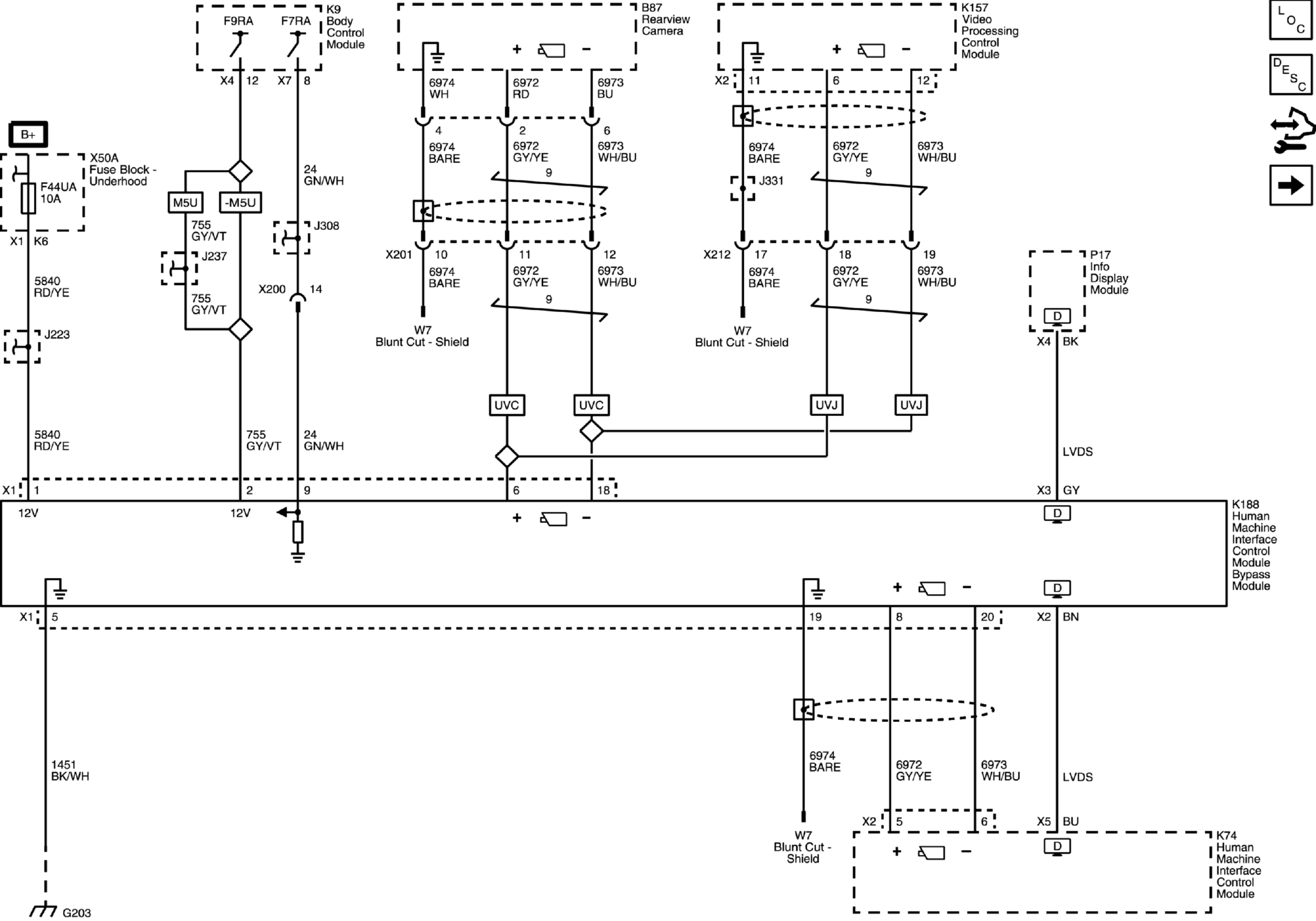

HMI Control Module Bypass Module (UVC/UVJ-EXP)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
HMI Control Module Bypass Module (UVC/UVJ-EXP)
