Digital Radio Transceiver Module Antenna Replacement

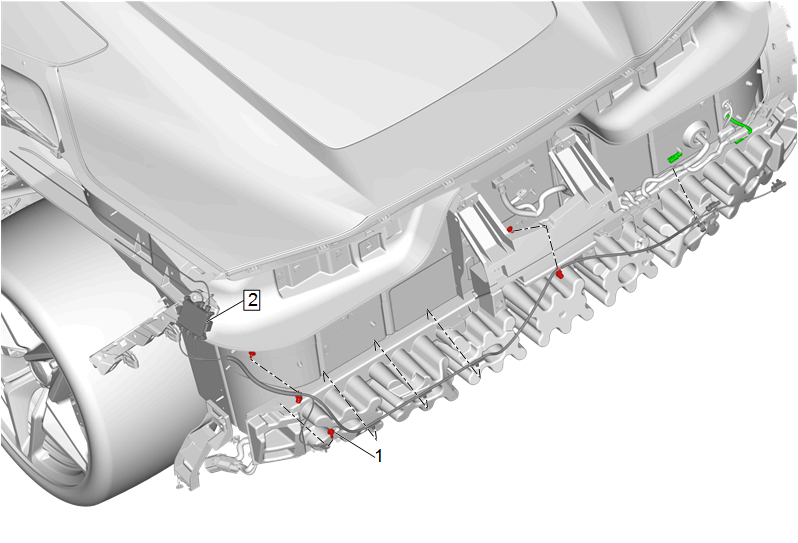

| Callout | Component Name |
|---|---|
| Preliminary Procedure Quarter Outer Panel Replacement - Left Side (Coupe)Quarter Outer Panel Replacement - Left Side (Convertible) |
|
| 1 | Radio Antenna Amplifier Bolt
CAUTION:
Tighten 14N.m (124 lb in) |
| 2 | Digital Radio Transceiver Module Antenna Procedure
|
