Front Intake Air Duct Replacement

Courtesy of GENERAL MOTORS COMPANY

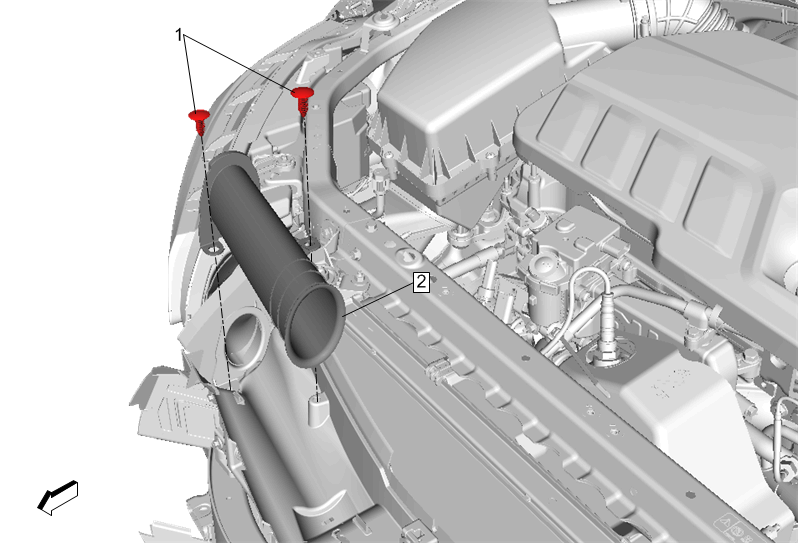

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Front Intake Air Duct Retainer [2x] CAUTION: Refer to Fastener Caution .
2	Front Intake Air Duct
