Installation Procedure
WARNING: This page is about a different car, the 2018 GMC Canyon and 2018 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

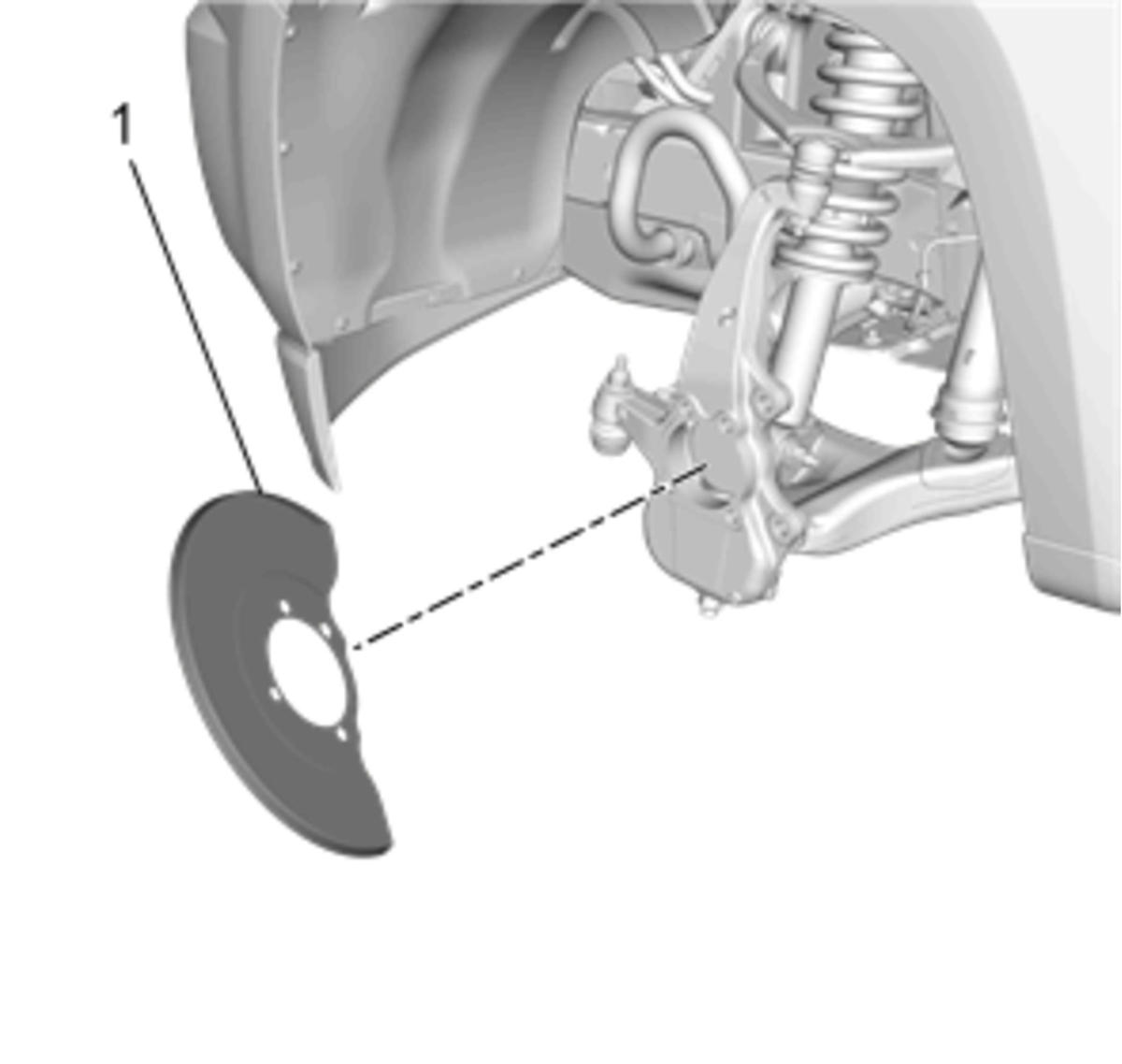

Install the front brake shield (1).

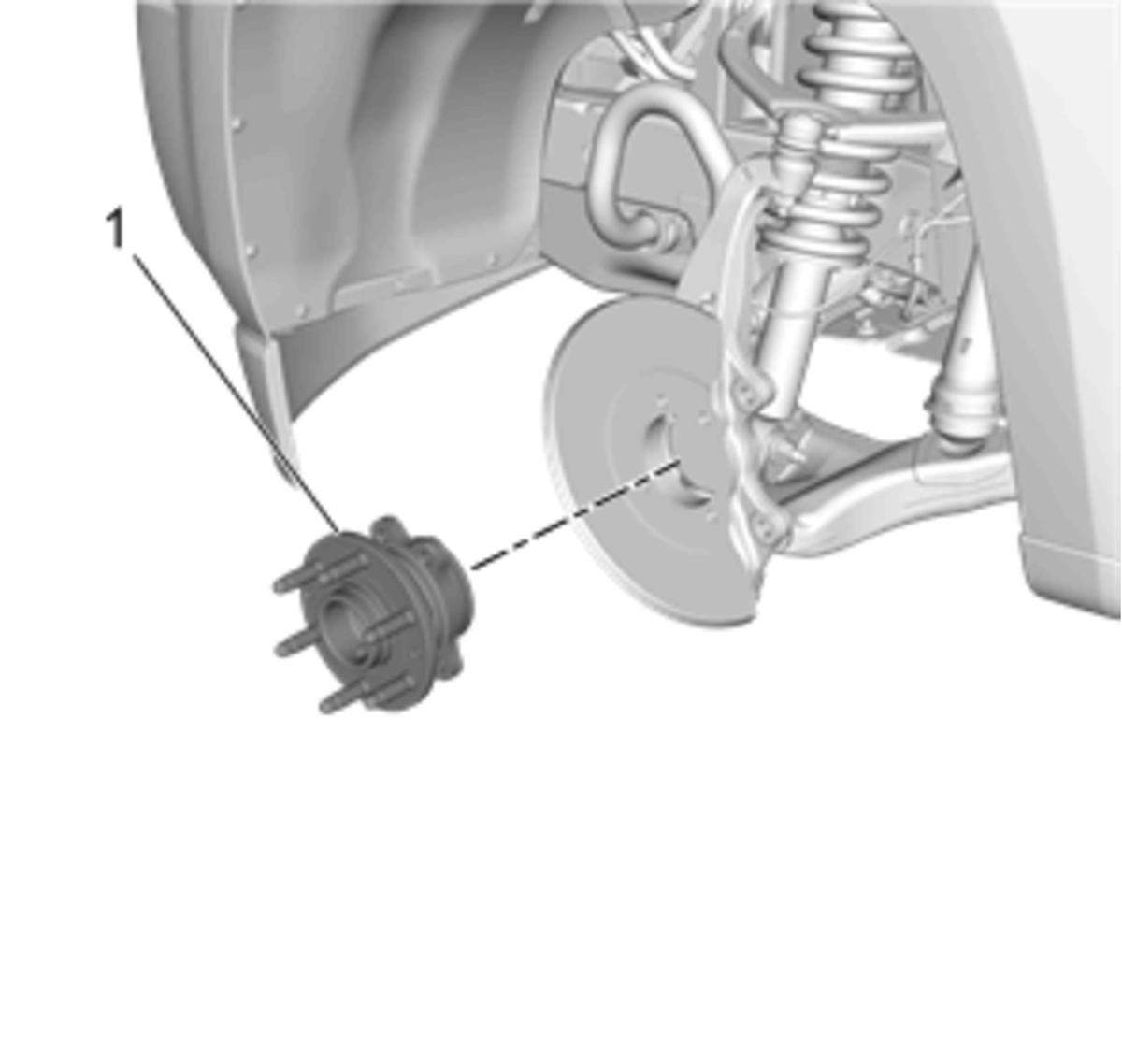

Install the front wheel bearing and hub assembly (1). Refer to Front Wheel Bearing and Hub Replacement (4WD, Without ZR2)Front Wheel Bearing and Hub Replacement (2WD, Without ZR2)Front Wheel Bearing and Hub Replacement (4WD, With ZR2) .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
