Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Canyon and 2018 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

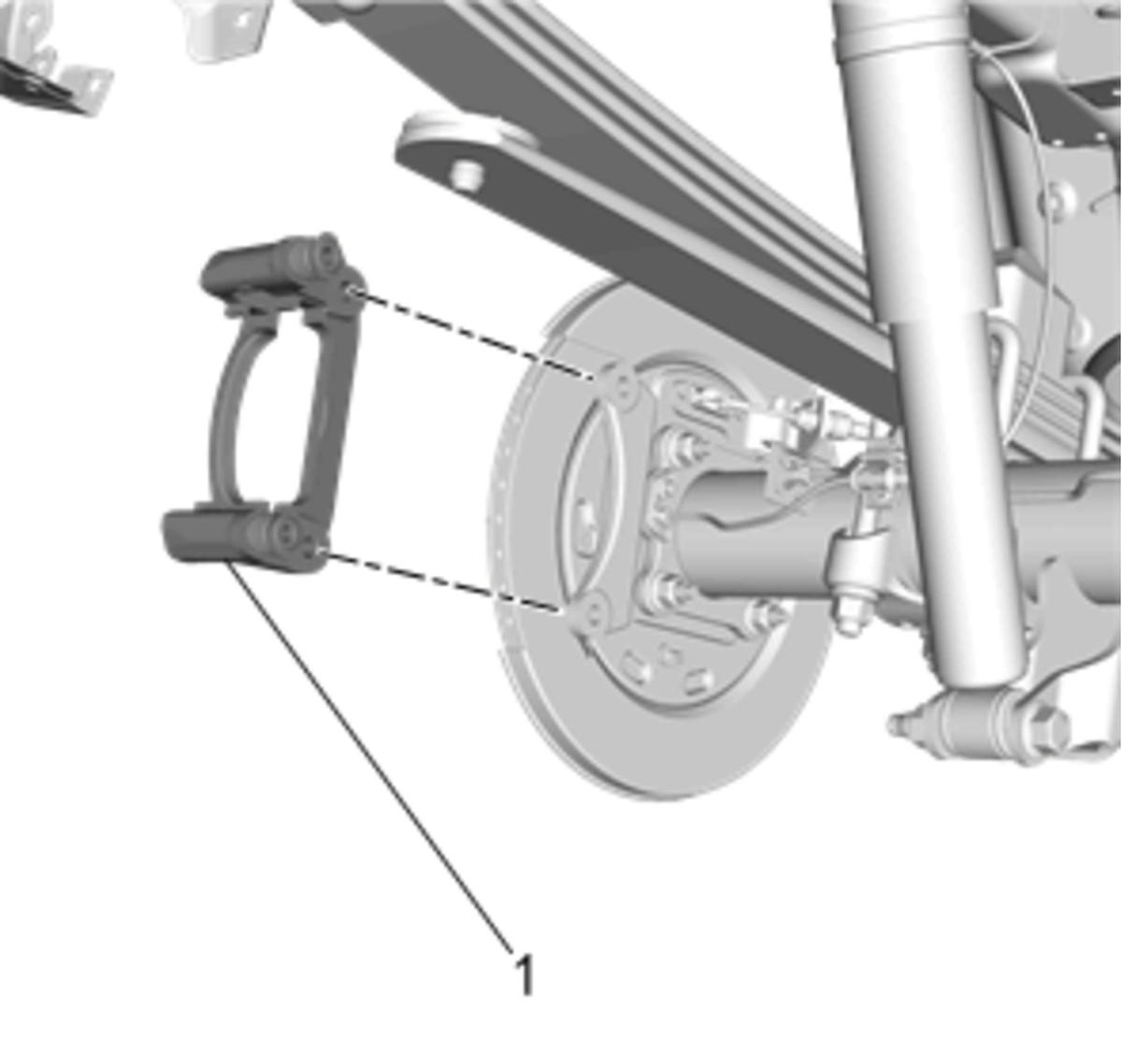

  1. GM3686446Courtesy of GENERAL MOTORS COMPANY

    Install the rear brake caliper bracket (1).

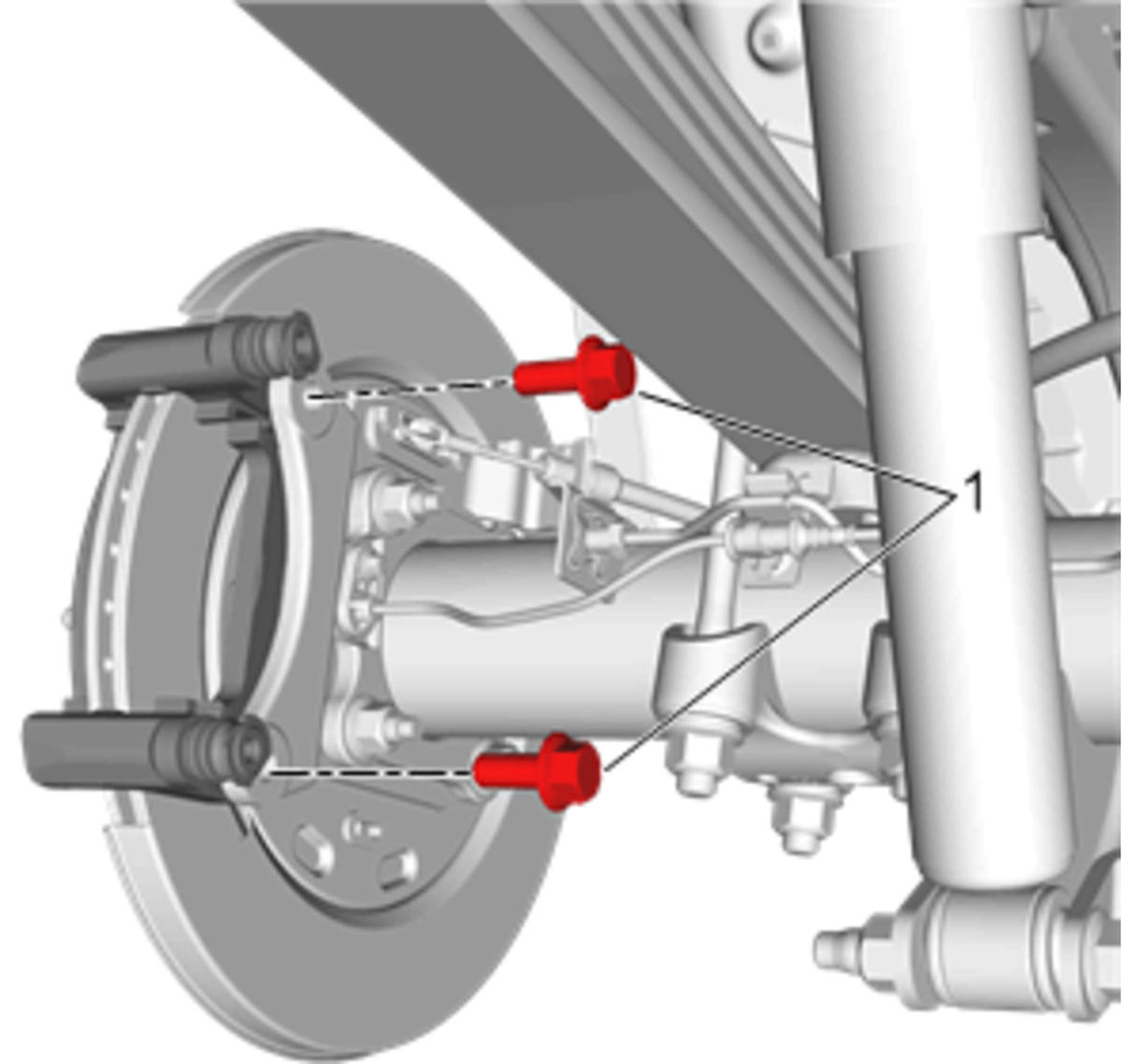

  2. GM3686444Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install new brake caliper bracket bolts (1) and tighten to 100 N.m (74 lb ft) + 15-30 degrees.

  3. Install the rear disc brake pads. Refer to Rear Disc Brake Pads Replacement .
  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
