Liftgate Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

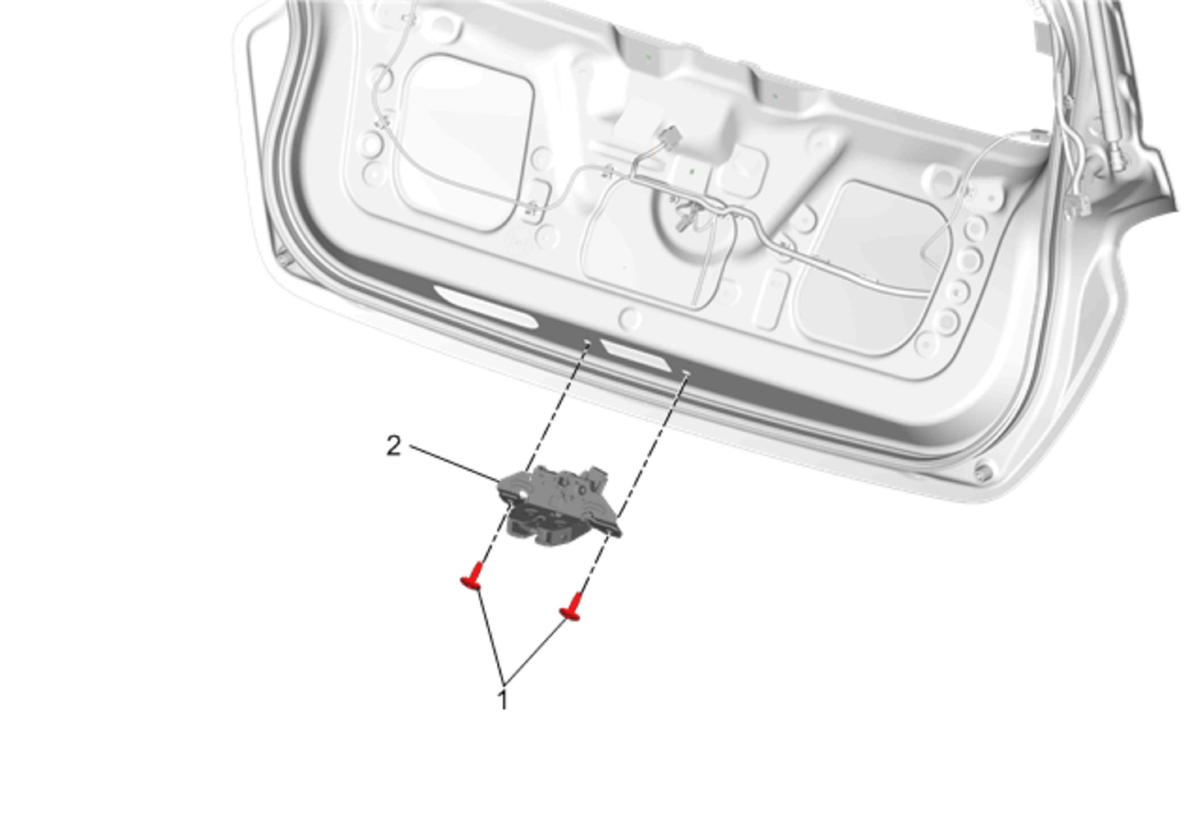

Callout	Component Name
Preliminary Procedure Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement .
1	Liftgate Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
2	Liftgate Latch Assembly Procedure Disconnect electrical connector.
