Brake Pedal Position Sensor Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

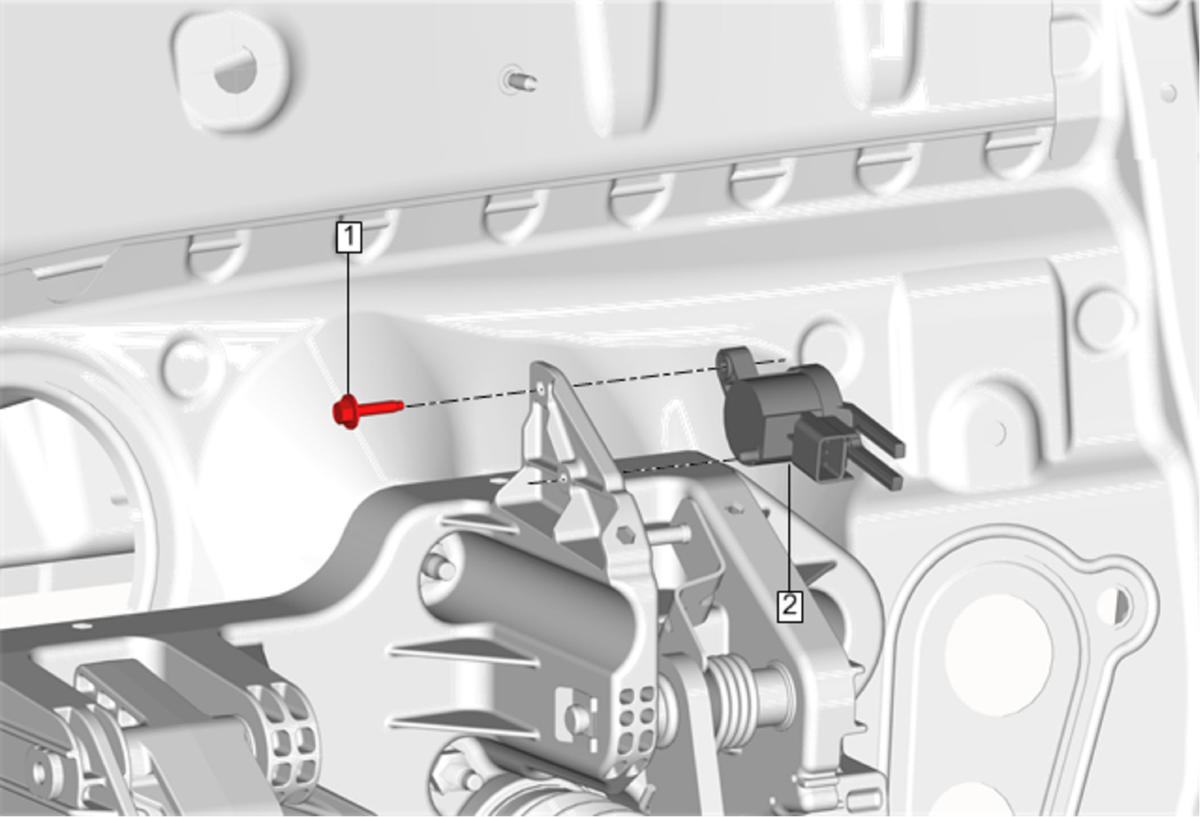

Fig 1: Brake Pedal Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the steering column. Refer to Steering Column Replacement .
1	Brake Pedal Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Brake Pedal Position Sensor Procedure Disconnect the electrical connector. Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .

Callout

Component Name

Preliminary Procedure
Lower the steering column. Refer to Steering Column Replacement .

Brake Pedal Position Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
3 N.m (27 lb in)

Brake Pedal Position Sensor

Procedure

Disconnect the electrical connector.
Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
