Removal Procedure

  1. Remove Engine Control Module. Refer to Engine Control Module Replacement
  2. Remove Auxiliary Battery. Refer to Auxiliary Battery Replacement (9C1)
  3. Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Left Side (Chevrolet)

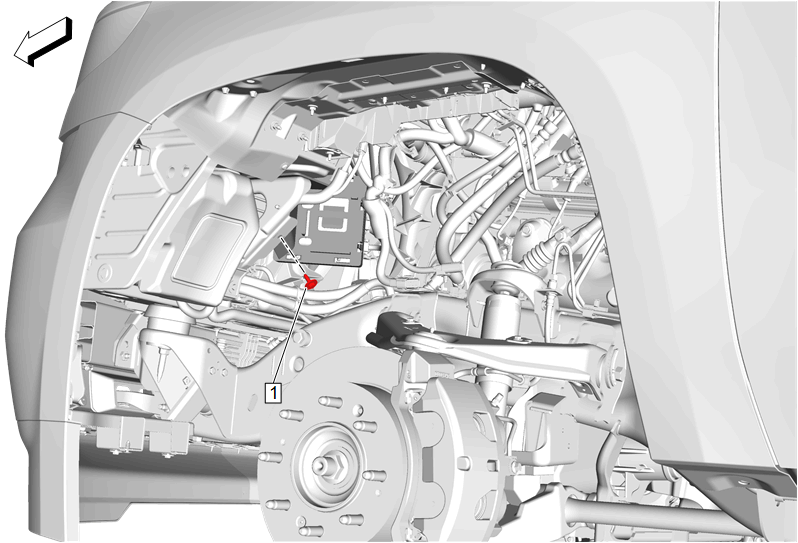

    4. Fig 1: Engine Control Module Bracket Bolt
    GM5035211Courtesy of GENERAL MOTORS COMPANY
  4. Remove Engine Control Module Bracket Bolt (1)

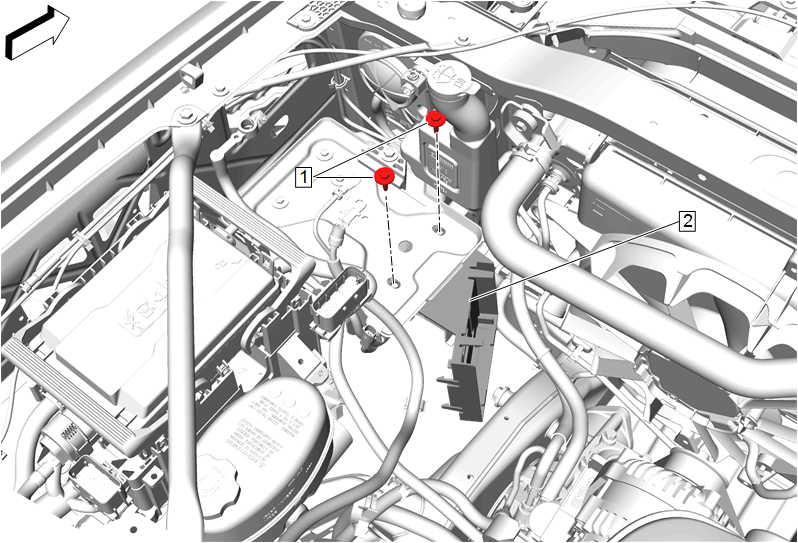

    5. Fig 2: Battery Tray Bolts And Engine Control Module Bracket
    GM5035215Courtesy of GENERAL MOTORS COMPANY
  5. Remove Battery Tray Bolts (1) (Qty: 2)
  6. Remove Engine Control Module Bracket (2)
