Ignition Coil Replacement - Bank 2

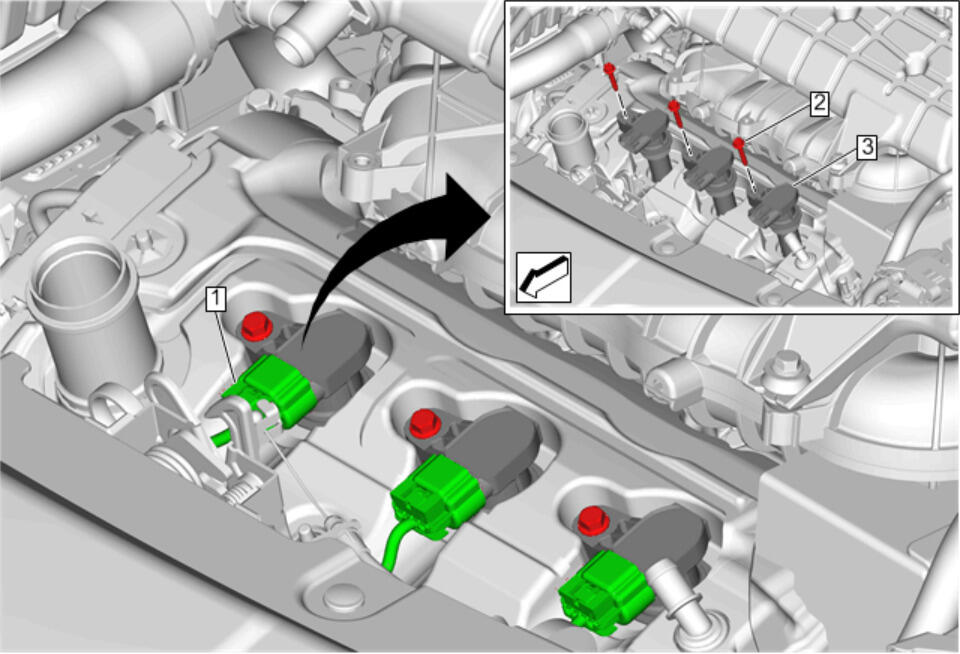

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front positive crankshaft ventilation tube. Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Air Cleaner Outlet Duct to Camshaft Cover)Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Intake Manifold to Camshaft Cover) |
|
| 1 | Electrical Connector [3x] Procedure Disconnect the electrical connectors. |
| 2 | Ignition Coil Bolt [3x]
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Ignition Coil [3x] |
