Forward Collision Alert Display Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

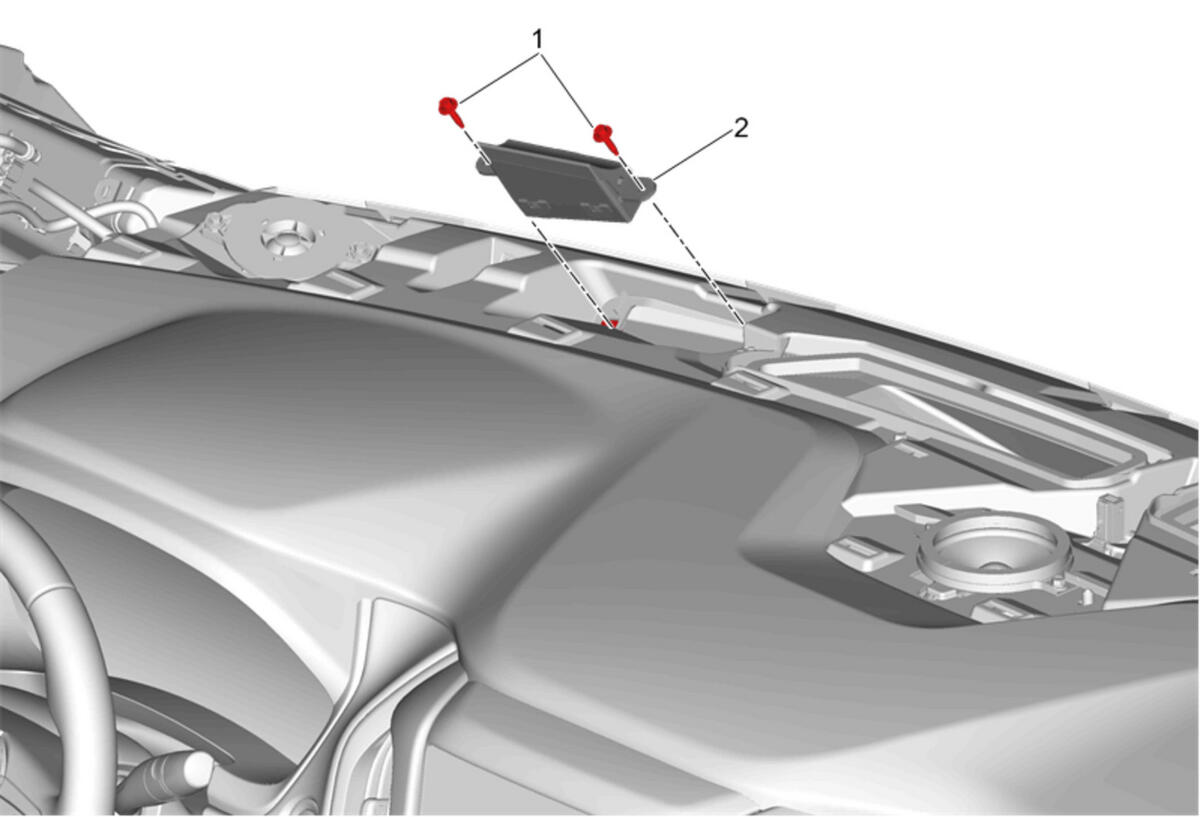

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Extension Replacement |
|
| 1 | Forward Collision Alert Display Bolt [2x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Forward Collision Alert Display Procedure Disconnect the electrical connector. |
