Ignition and Start Switch Replacement

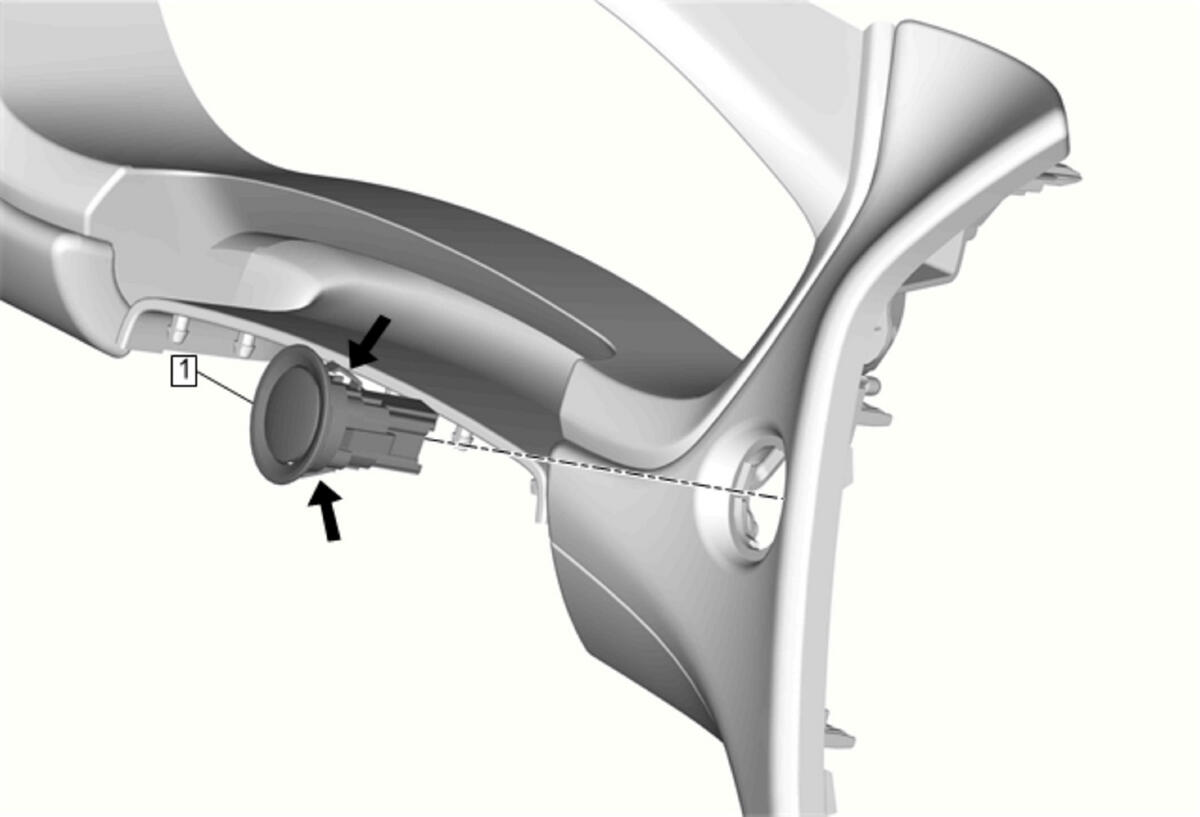

GM4746081Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Trim Plate Applique Replacement - Left Side
1 Ignition and Start Switch
Procedure
Release the retaining tabs and remove the ignition and start switch from the trim piece.
