Air Cleaner Assembly Replacement

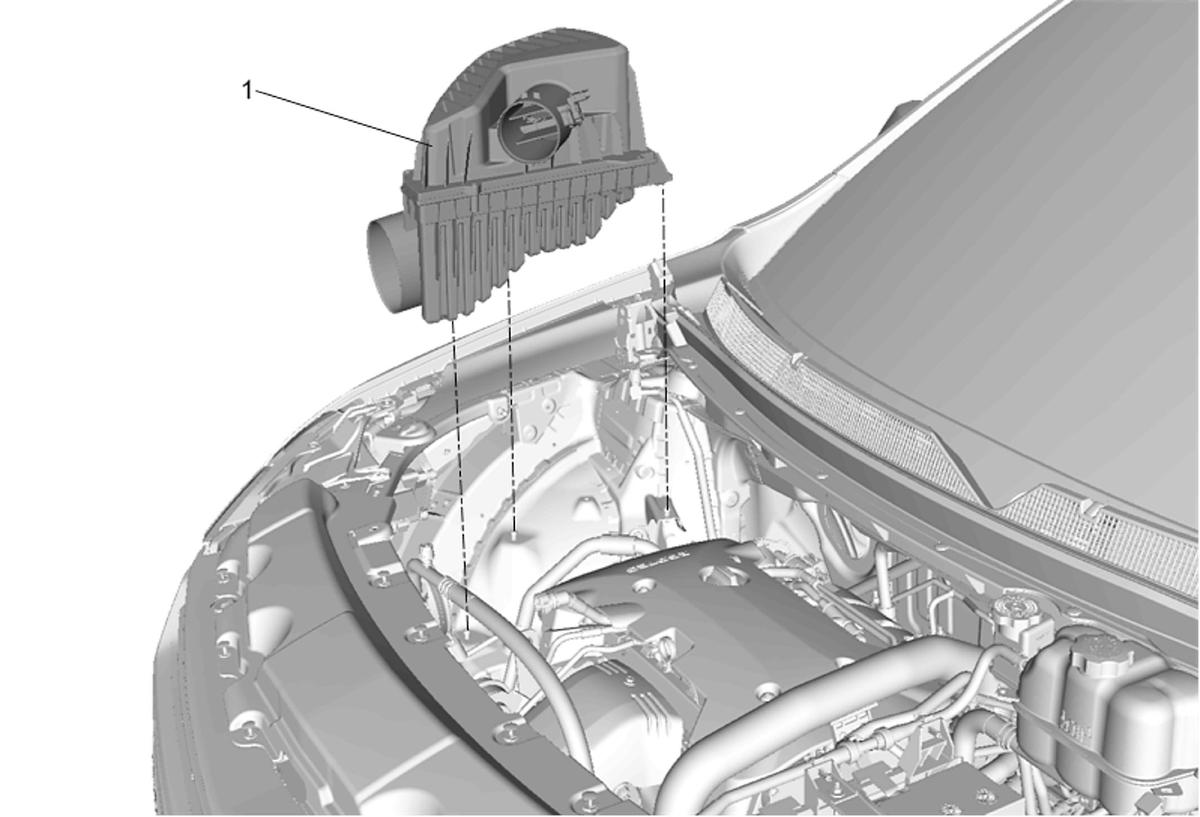

GM4839647
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Outlet Duct Replacement (Non-Tamperproof) Air Cleaner Outlet Duct Replacement (Tamperproof)
  2. Disconnect the electrical connector.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
