Intake Air Splash Shield Replacement

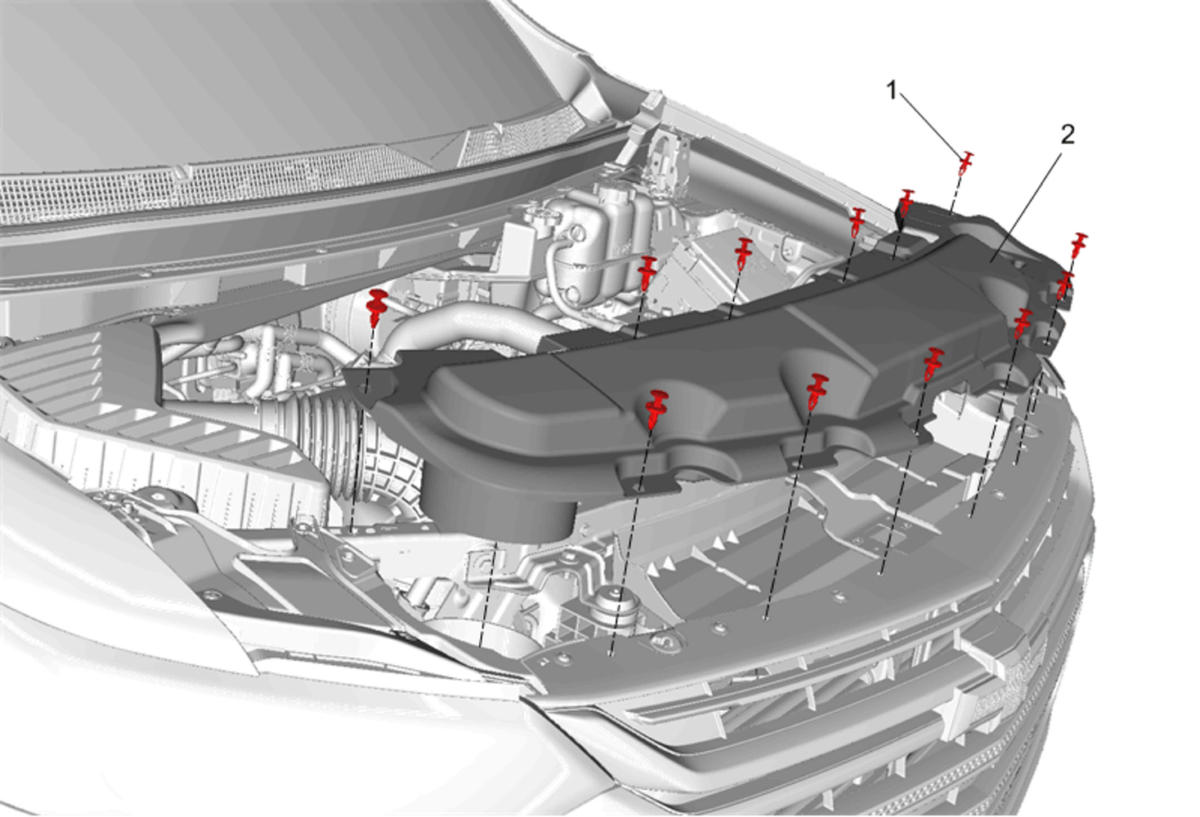

GM4839651
Callout Component Name
1 Intake Air Splash Shield Retainer [12x]
CAUTION:

Refer to Fastener Caution .
2 Intake Air Splash Shield
