Knock Sensor Replacement (Sensor 1)

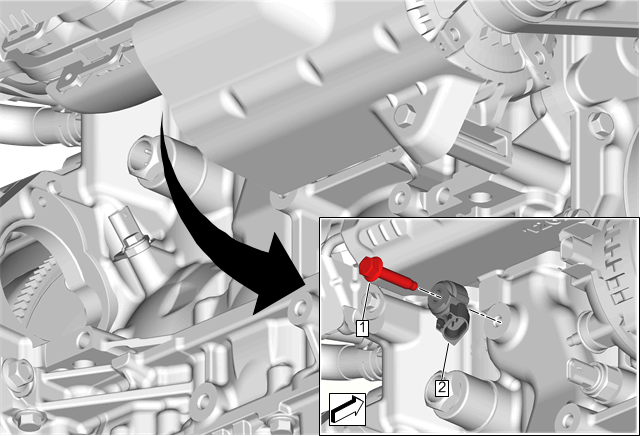

Callout	Component Name
Preliminary Procedures Starter Replacement (LTG - All Wheel Drive)Starter Replacement (LTG - Front Wheel Drive) Disconnect the electrical connector.
1	Knock Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Knock Sensor

Callout

Component Name

Preliminary Procedures

Knock Sensor Bolt

CAUTION:

Tighten
25 N.m (18 lb ft)

Knock Sensor
