Radio Control Assembly Replacement

Courtesy of GENERAL MOTORS COMPANY

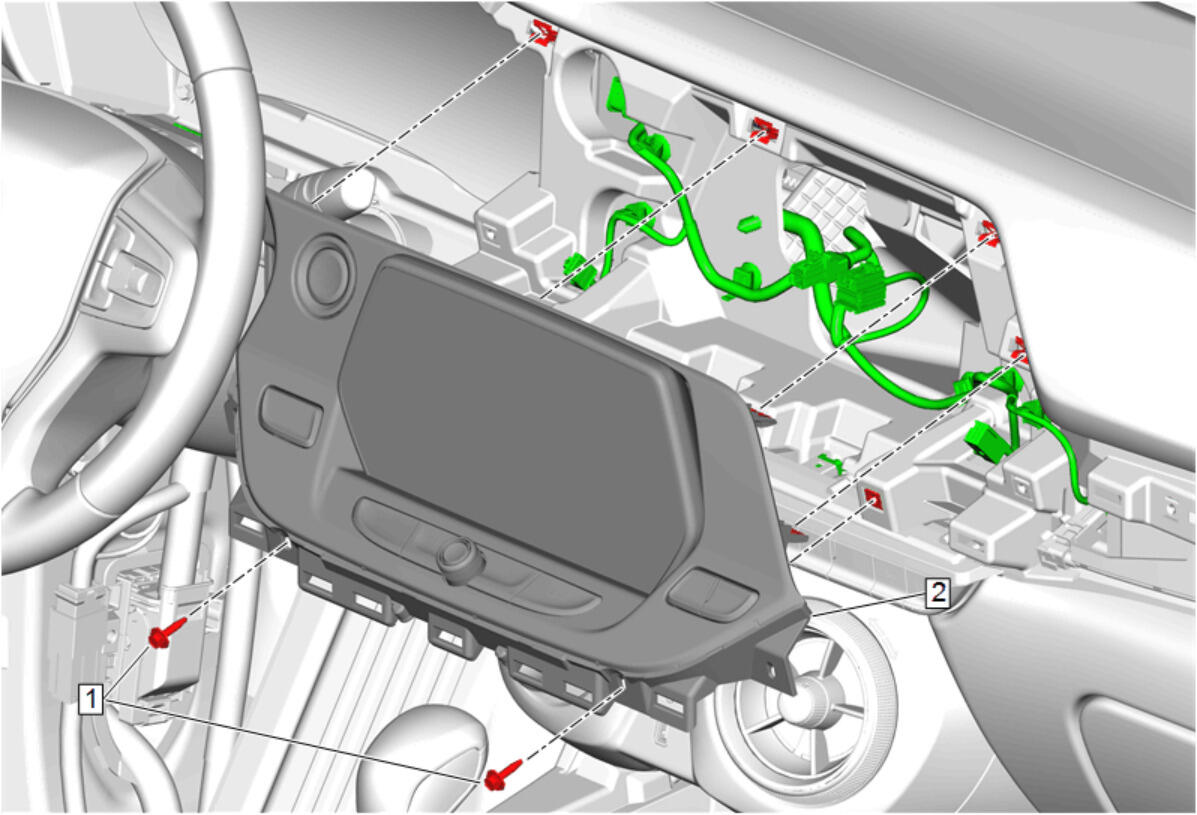

Callout	Component Name
Preliminary Procedure Instrument Panel Cluster Trim Plate Replacement
1	Radio Control Bolt [2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Control Assembly Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Radio Control Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Control Assembly

Procedure
