Installation Procedure

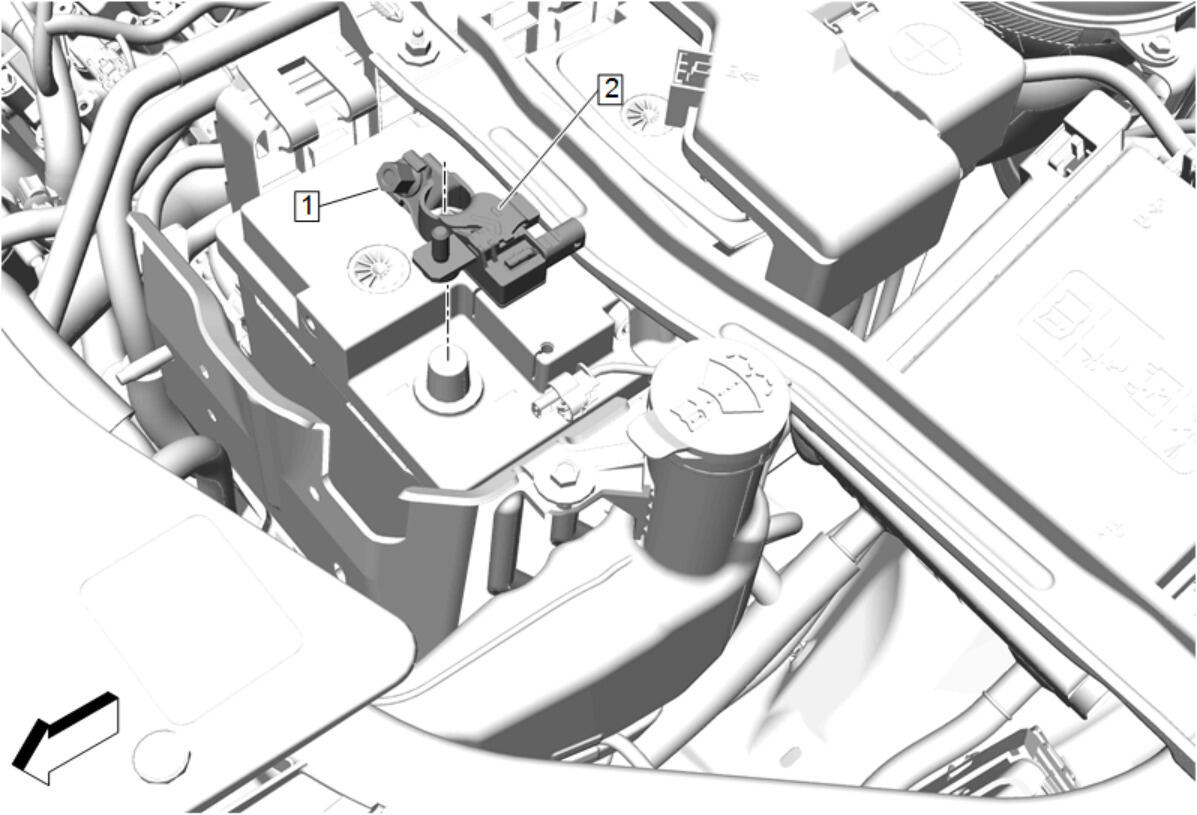

  1. GM5141109Courtesy of GENERAL MOTORS COMPANY

    Battery Monitor Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Post Clamp Nut (1) - Tighten 4.5 N.m (40 lb in)

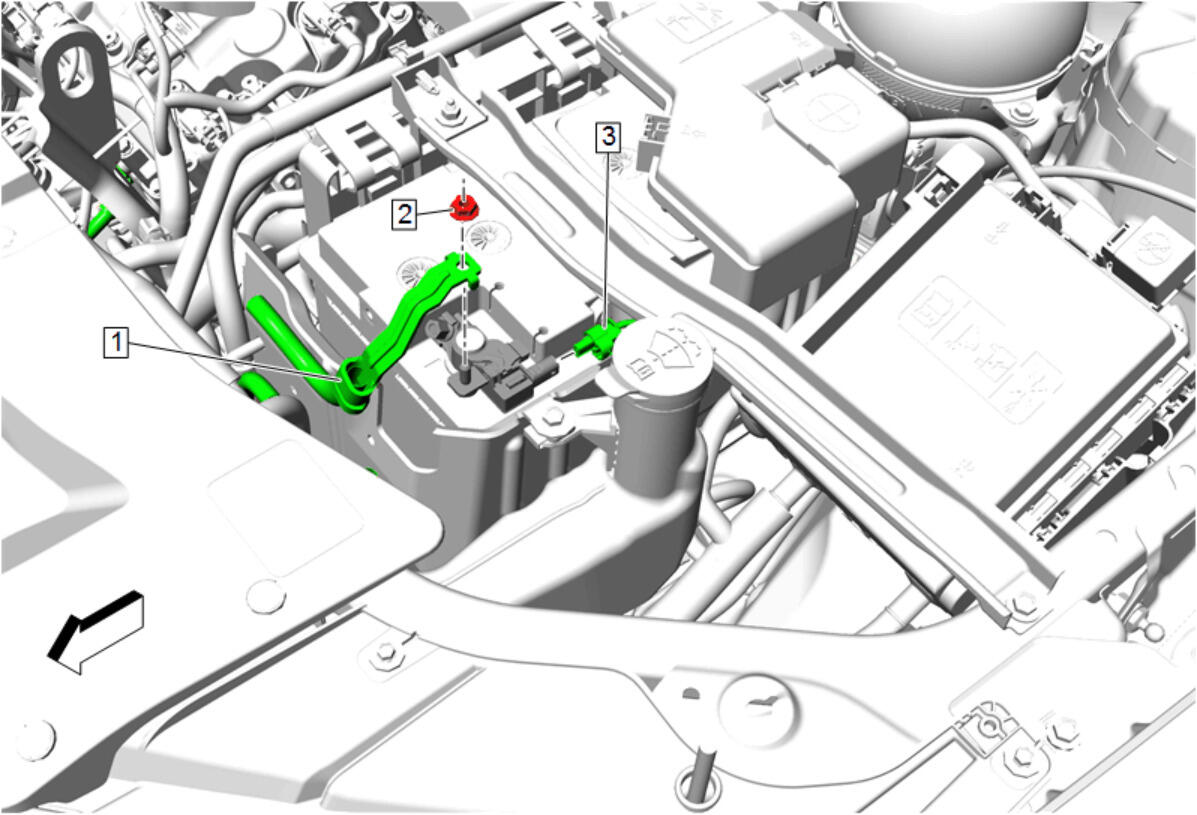

  3. GM5141096Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (1) - Install

  4. Battery Negative Cable Nut (2) @ Battery Monitor Module - Install and tighten 12 N.m (106 lb in)
  5. Electrical Connector (3) - Connect
