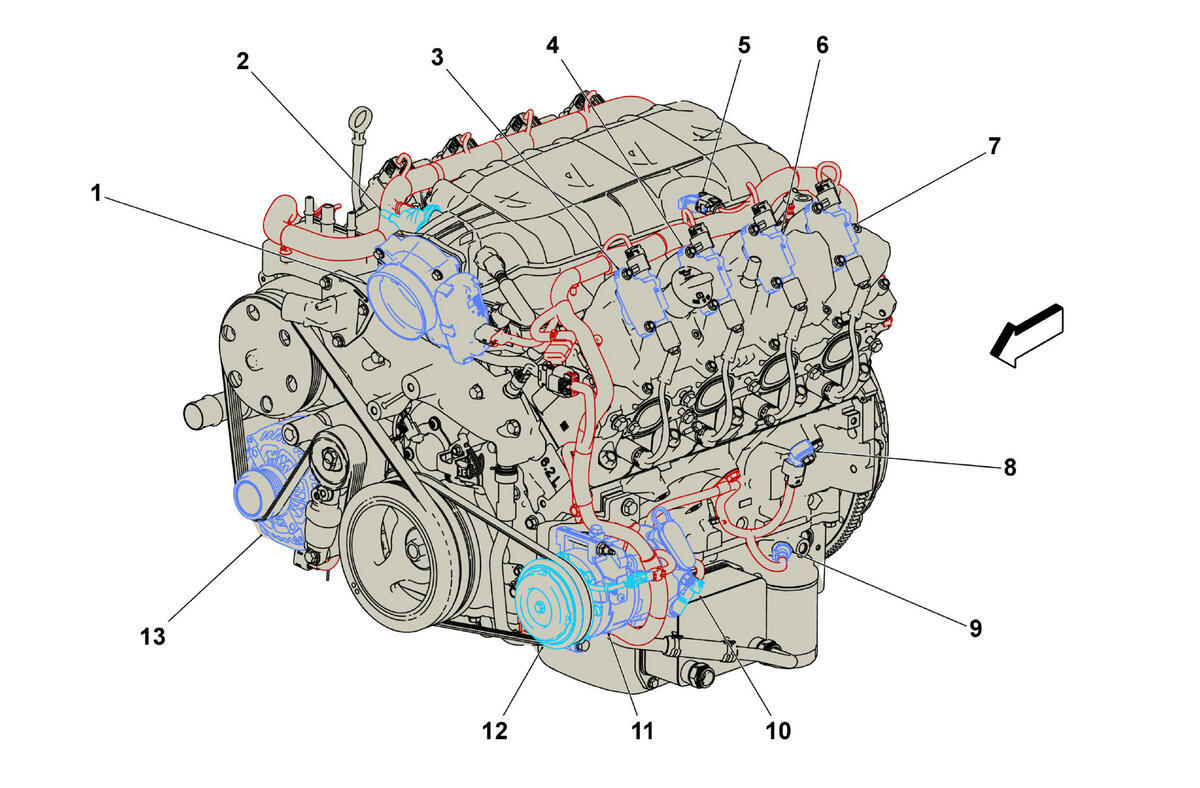

Engine Components - Left Front (LT1/LT4)

Courtesy of GENERAL MOTORS COMPANY

Items
1. Q38 Throttle Body Q38 Throttle Body
2. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
3. T8A Ignition Coil 1 T8A Ignition Coil 1 (LGX)T8A Ignition Coil 1 (LT1/LT4)T8A Ignition Coil 1 (LTG)
4. T8C Ignition Coil 3 T8C Ignition Coil 3 (LGX)T8C Ignition Coil 3 (LT1/LT4)T8C Ignition Coil 3 (LTG)
5. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LGX)B74 Manifold Absolute Pressure Sensor (LT1)B74 Manifold Absolute Pressure Sensor (LTG)
6. T8E Ignition Coil 5 (LGX/LT1/LT4) T8E Ignition Coil 5 (LGX)T8E Ignition Coil 5 (LT1/LT4)
7. T8G Ignition Coil 7 (LT1/LT4) T8G Ignition Coil 7 (LT1/LT4)
8. B68A Knock Sensor 1 B68A Knock Sensor 1
9. B36 Engine Oil Temperature Sensor (LT1/LT4) B36 Engine Oil Temperature Sensor (LT1/LT4)
10. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
11. G1 A/C Compressor
12. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch
13. G13 Generator G13 Generator X1 G13 Generator X2
