Front Compartment Fuse Block Cover Replacement

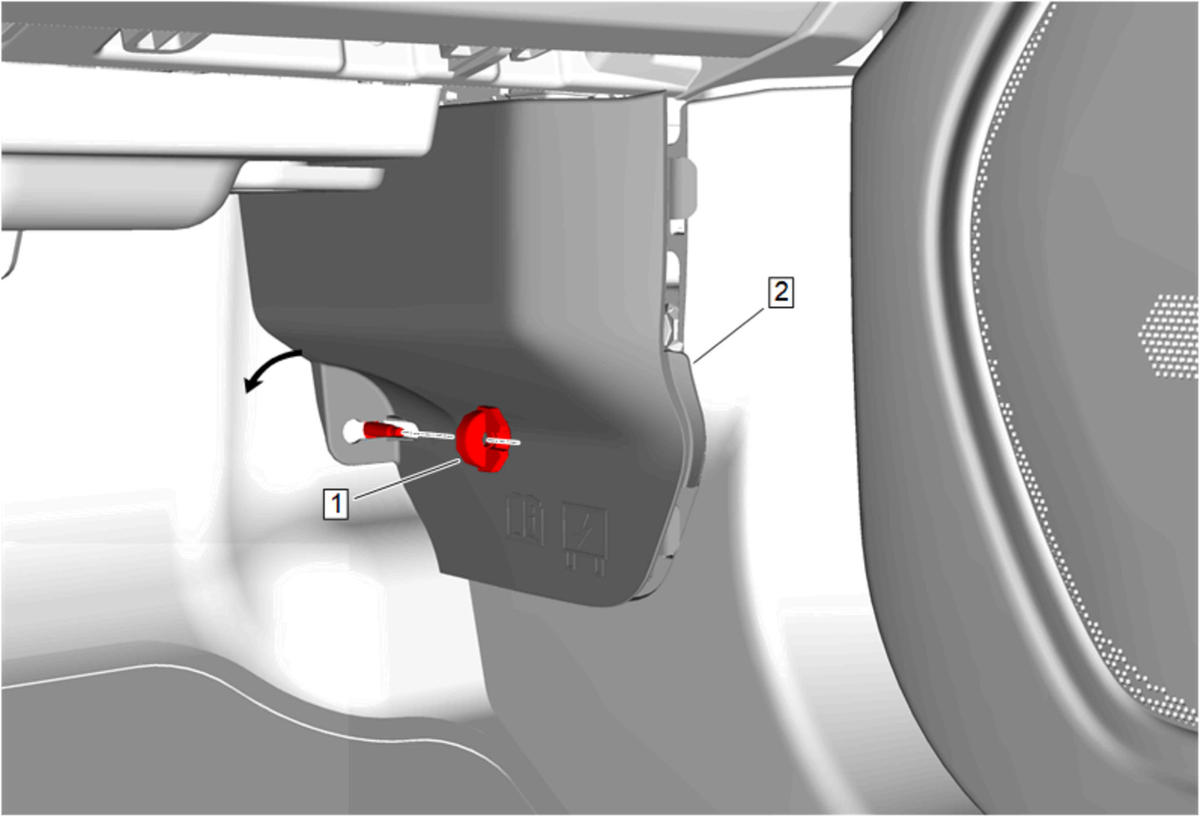

GM5338591Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the passenger side door to gain access to the front compartment fuse block cover on the right hand side lower hinge pillar.
1 Front Compartment Fuse Block Cover Wing Nut
CAUTION:

Refer to Fastener Caution .


Procedure
Install and hand tighten
2 Front Compartment Fuse Block Cover
Procedure
Grasp the left hand side of the front compartment fuse block cover and pull slightly to release the tab and swing out to the right and remove.
