Turn Signal Switch Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

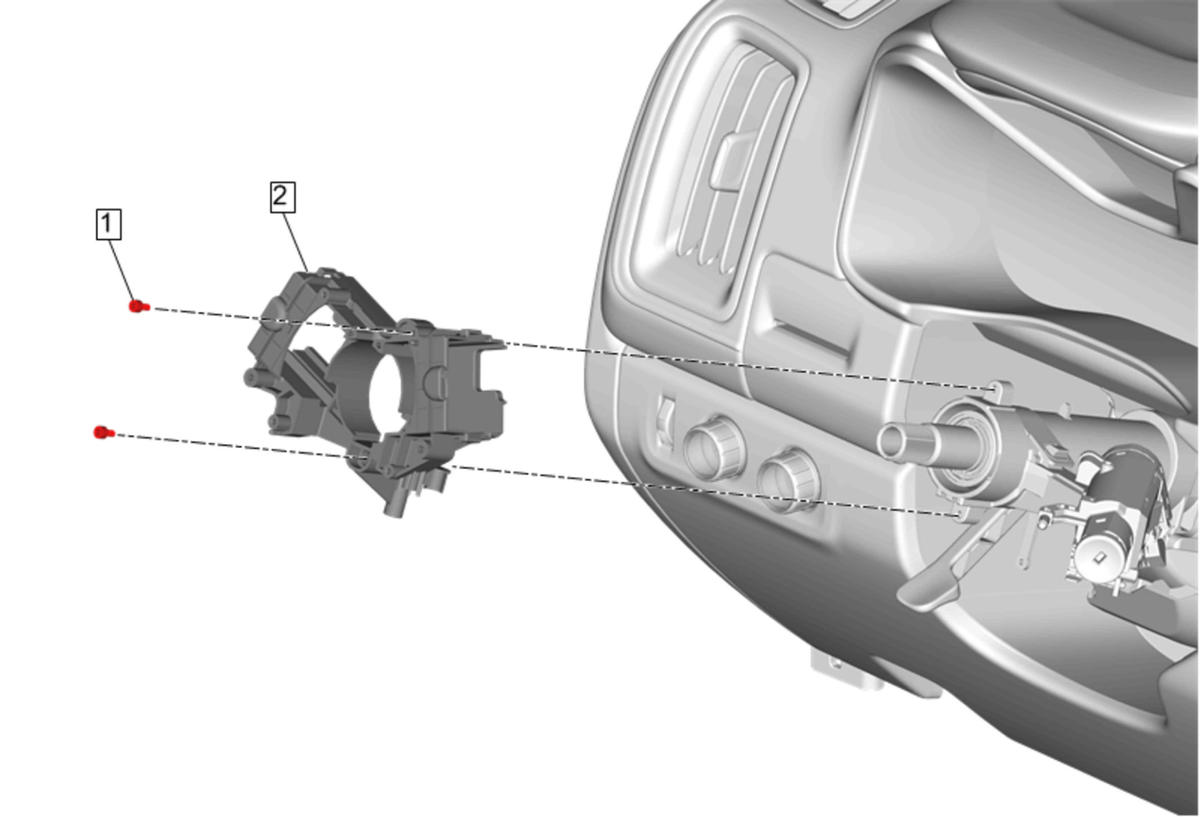

Callout	Component Name
Preliminary Procedures Steering Wheel Airbag Coil Replacement Turn Signal Switch Replacement Windshield Wiper and Windshield Washer Switch Replacement Theft Deterrent Module Replacement
1	Turn Signal Switch Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 15 N.m (11 lb ft)
2	Turn Signal Switch Bracket

Callout

Component Name

Preliminary Procedures

Turn Signal Switch Bracket Bolt [2x]

CAUTION:

Tighten
15 N.m (11 lb ft)

Turn Signal Switch Bracket
