Body Control Module Bracket Replacement

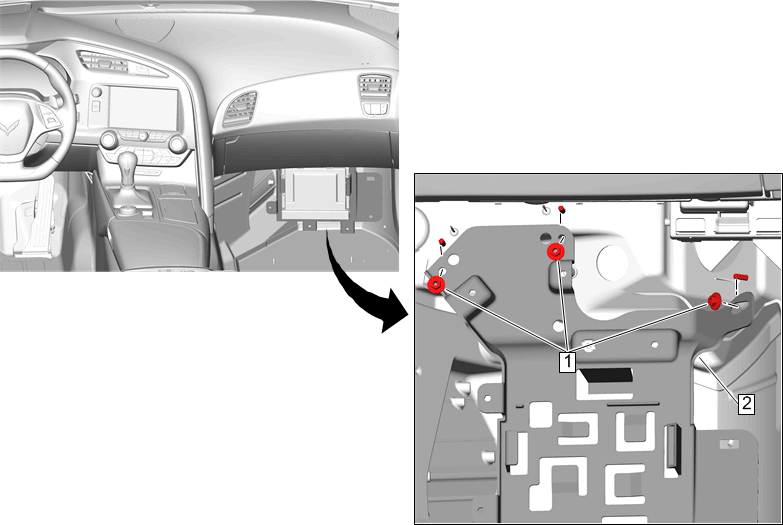

GM4644782Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Body Control Module Replacement
  2. Blower Motor Replacement
1 Body Control Module Bracket Nut [3x]
CAUTION:

Fastener Caution


Procedure
Unclip and reposition the 6 wiring harness retainers.
Tighten
9 N.m (80 lb in)
2 Body Control Module Bracket

Procedure

  1. Release the radio receiver from the body control module bracket.
  2. Remove the bracket from vehicle by repositioning bulkhead insulator panel as necessary.
  3. Pull downward and reposition the wiring harnesses as necessary to remove bracket from vehicle.
