Removal Procedure
WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front tire and wheel assemblies. Tire and Wheel Removal and Installation
- If equipped with the front leveling position sensor, disconnect the electrical connector.
- NOTE:
Support the lower control arm ball joint with a hydraulic jack.

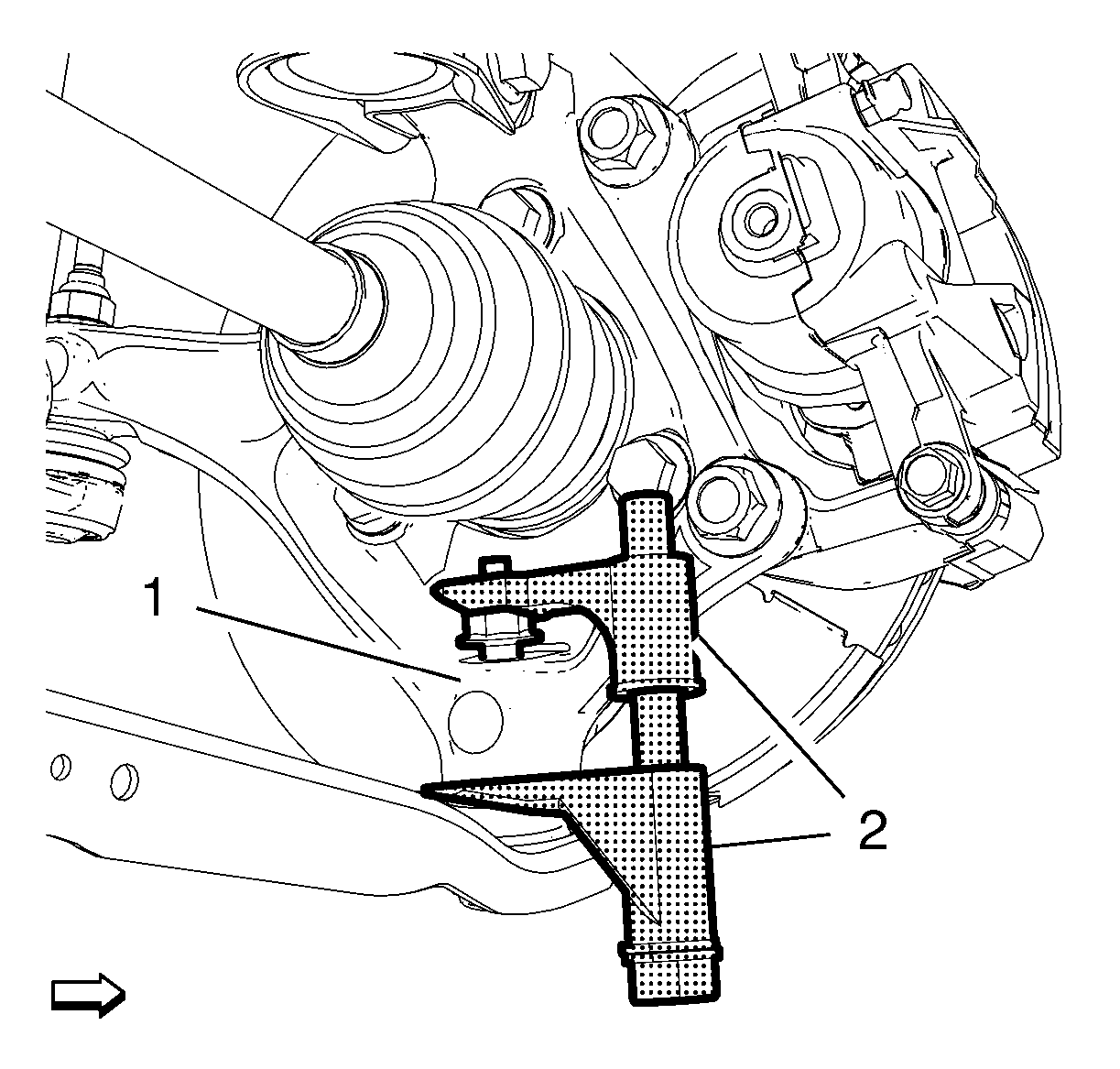

Nut (1) - Loosen
CH-42188-B separator (2)@Steering Knuckle(1) - Install
- Separate the steering knuckle from the lower ball joint.
- NOTE:
If necessary turn the steering knuckle in position.
Bolt (1)@Front Lower Control Arm Bushing(2) - Remove and DISCARD[2x]
- NOTE:
Hold against the nuts (1) to release the bolts (2). Use a suitable tool.
Bolt(2) - Remove and DISCARD[2x]
- Nut(1) - Remove and DISCARD[2x]
