Remote Control Door Lock Receiver Replacement (Hatchback)

WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

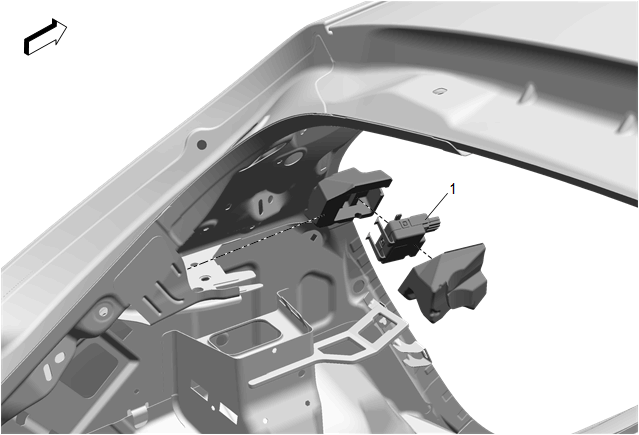

GM5125020
Callout Component Name
Preliminary Procedure
Body Lock Pillar Upper Trim Panel Replacement
1 Remote Control Door Lock Receiver

Procedure

  1. Disconnect the electrical connector.
  2. Remove the foam block.
  3. Remove the remote control door lock receiver from the foam block.
