Windshield Wiper System Module Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

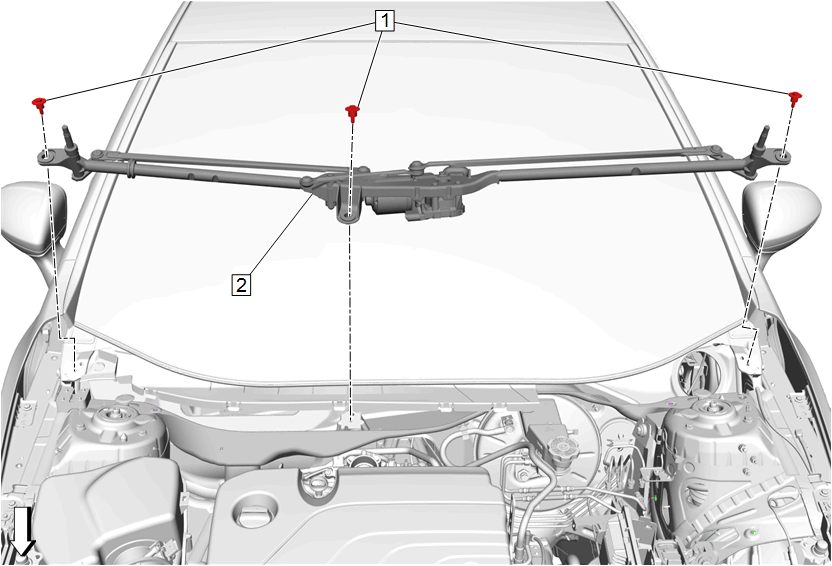

Callout	Component Name
Preliminary Procedures Air Inlet Grille Panel Replacement Dash Upper Extension Panel Opening Cover Replacement
1	Windshield Wiper System Module Bolt [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Windshield Wiper System Module Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Air Inlet Grille Panel Replacement
Dash Upper Extension Panel Opening Cover Replacement

Windshield Wiper System Module Bolt [3x]

CAUTION:

Fastener Caution

Tighten
9 N.m (80 lb in)

Windshield Wiper System Module
Procedure
Disconnect the electrical connector.
