Shift Lock Control Wiring Schematics
>>
Shift Lock
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

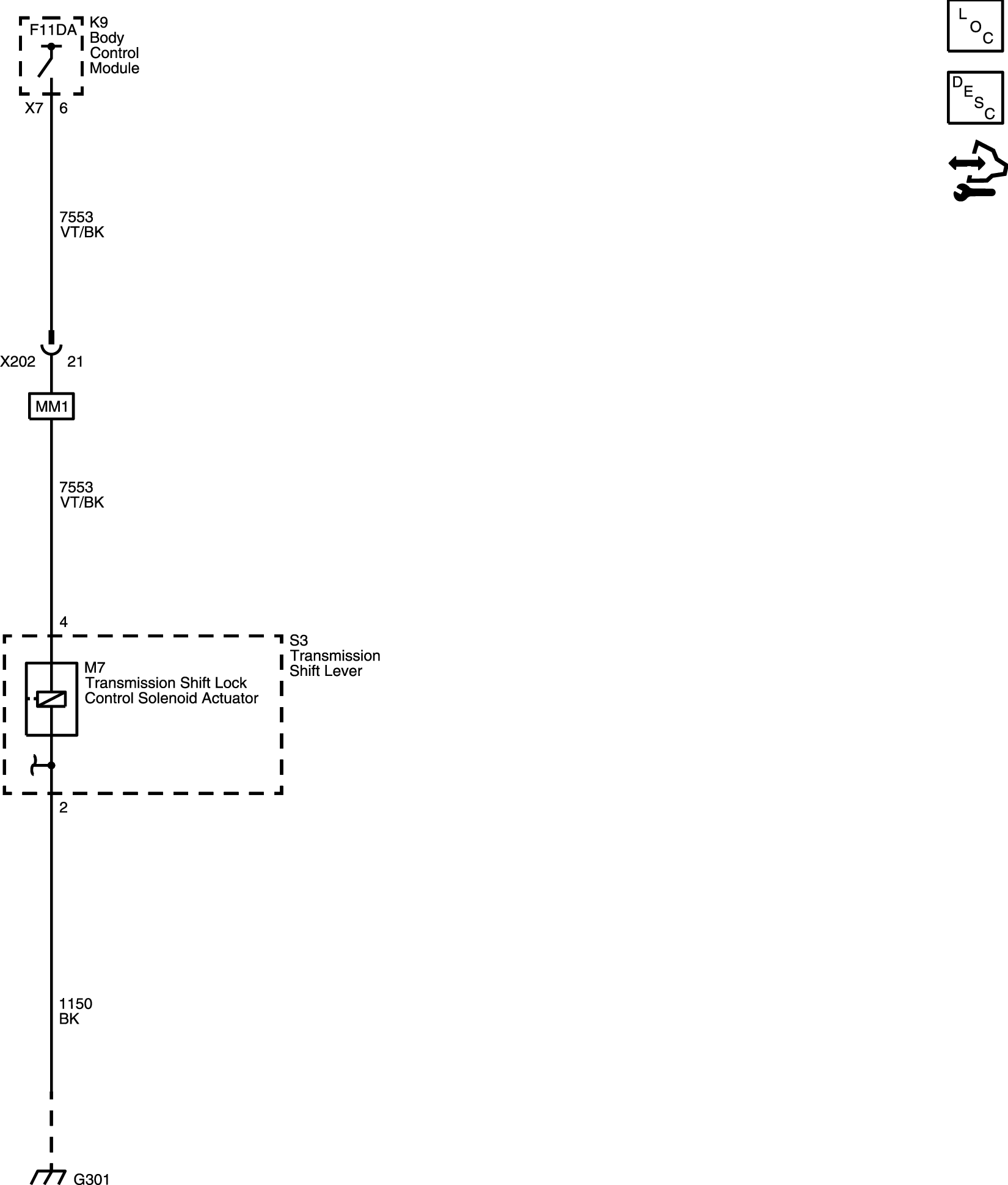

Shift Lock
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
