Stop Lamp Switch Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

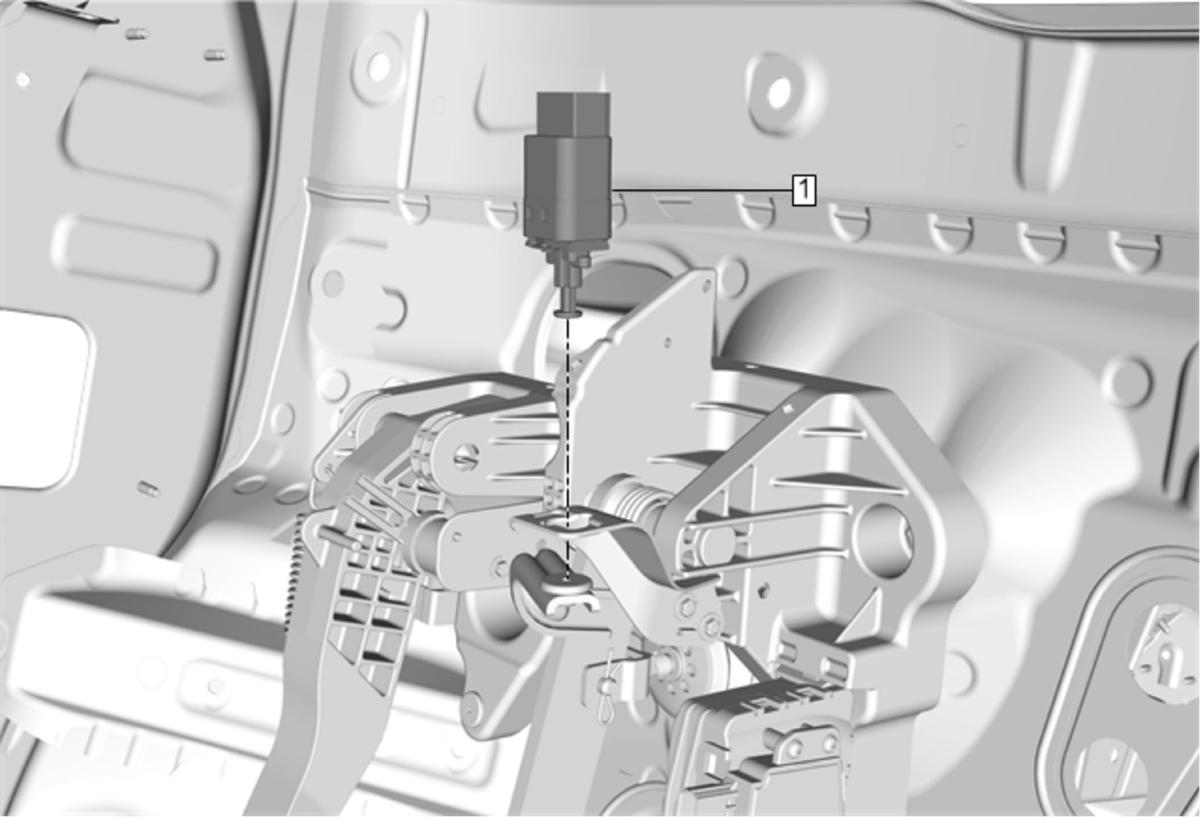

GM4195505
Callout Component Name
Preliminary Procedure
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
1 Stop Lamp Switch

Procedure

  1. Disconnect the electrical connector.
  2. Rotate the stop lamp switch counterclockwise to remove from the bracket.
  3. Rotate the stop lamp switch clockwise to install to the bracket.
  4. Adjust the stop lamp switch. Refer to Stop Lamp Switch Adjustment .
