3rd Row Seat Folding Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Right Side)Quarter Lower Rear Trim Panel Replacement (Left Side)

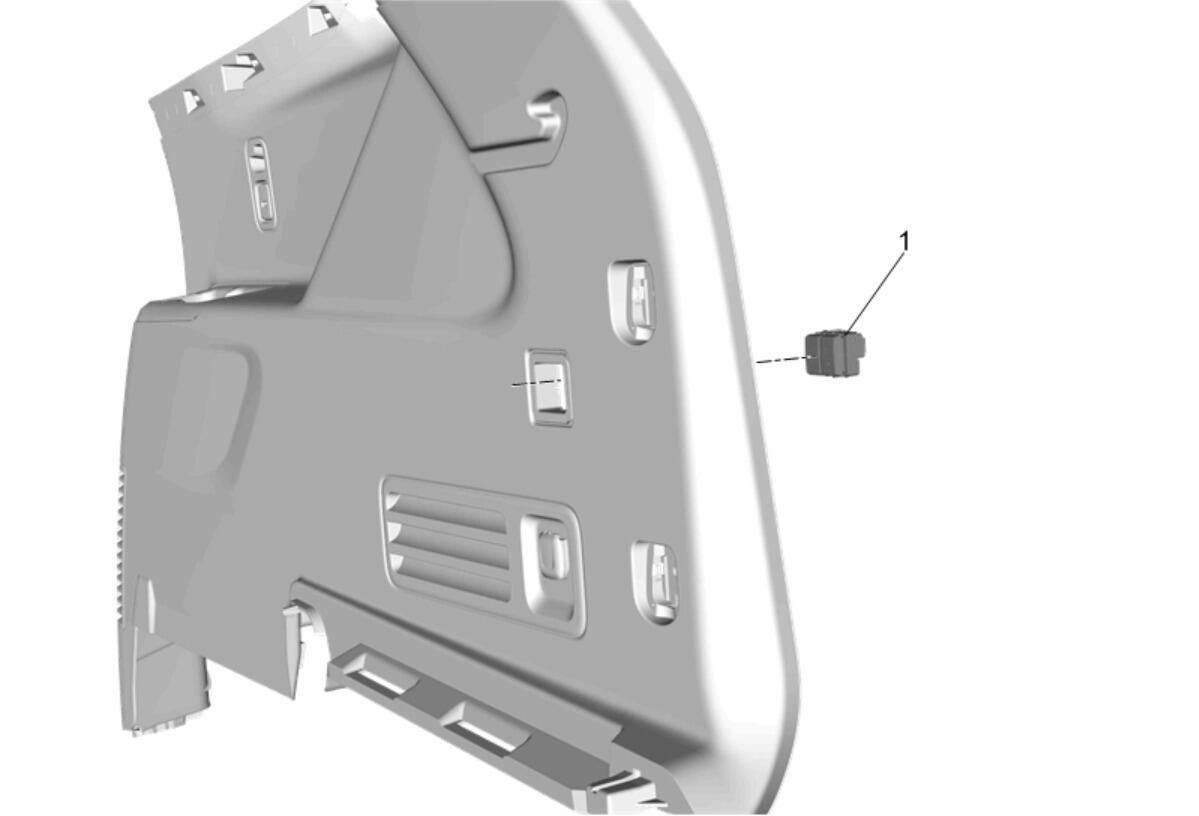

1	3rd Row Seat Folding Switch Procedure Use a plastic trim tool to release the switch from the trim panel. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Quarter Lower Rear Trim Panel Replacement (Right Side)Quarter Lower Rear Trim Panel Replacement (Left Side)

3rd Row Seat Folding Switch

Procedure

Use a plastic trim tool to release the switch from the trim panel.
Disconnect the electrical connector.
