Installation Procedure

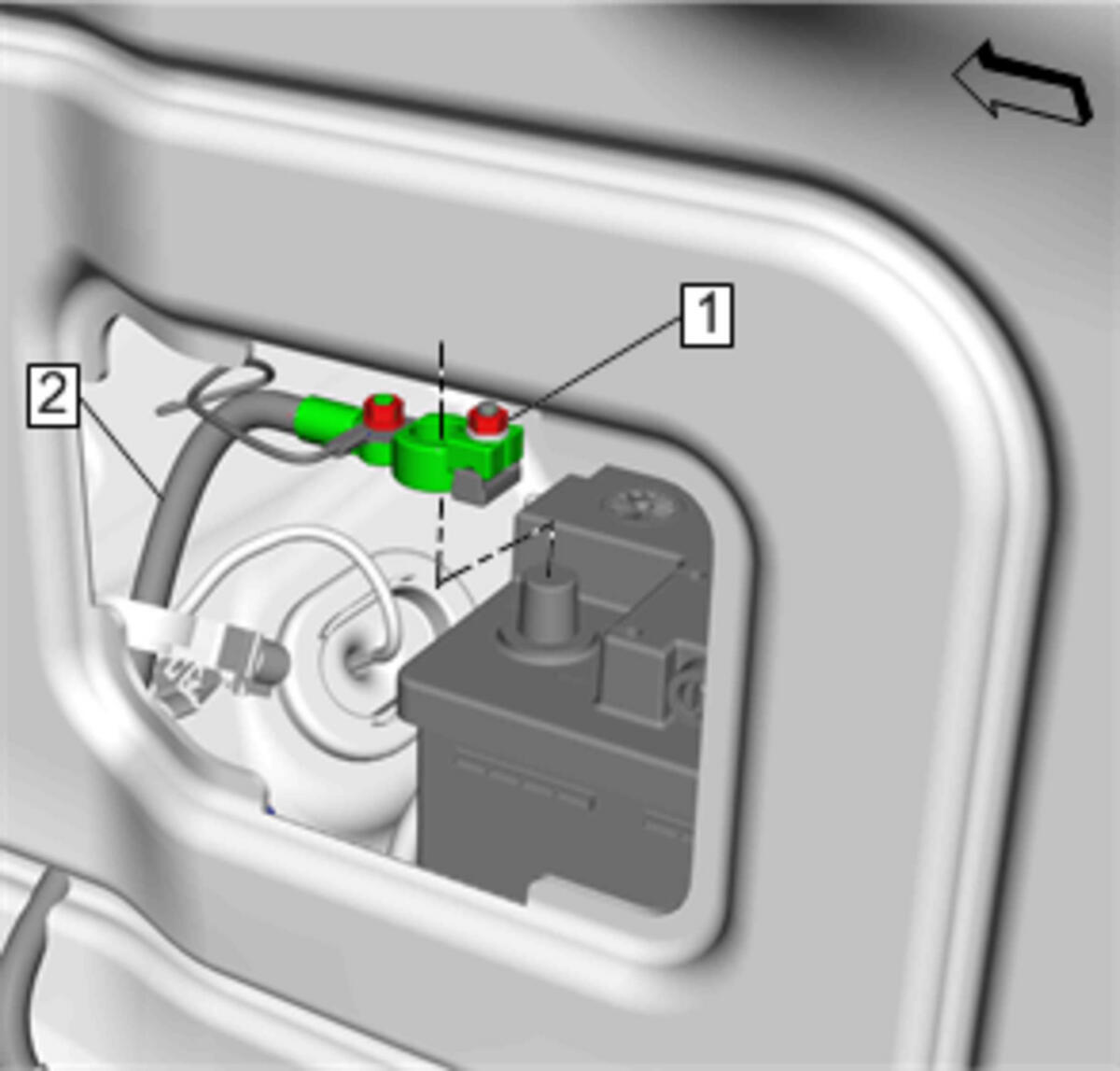

  1. GM4195442Courtesy of GENERAL MOTORS COMPANY

    Install the negative battery cable to the battery. (2)

    2. CAUTION:

    Refer to Fastener Caution .

  2. Battery Negative Post Clamp Nut (1) - Tighten 7 N.m (62 lb in)

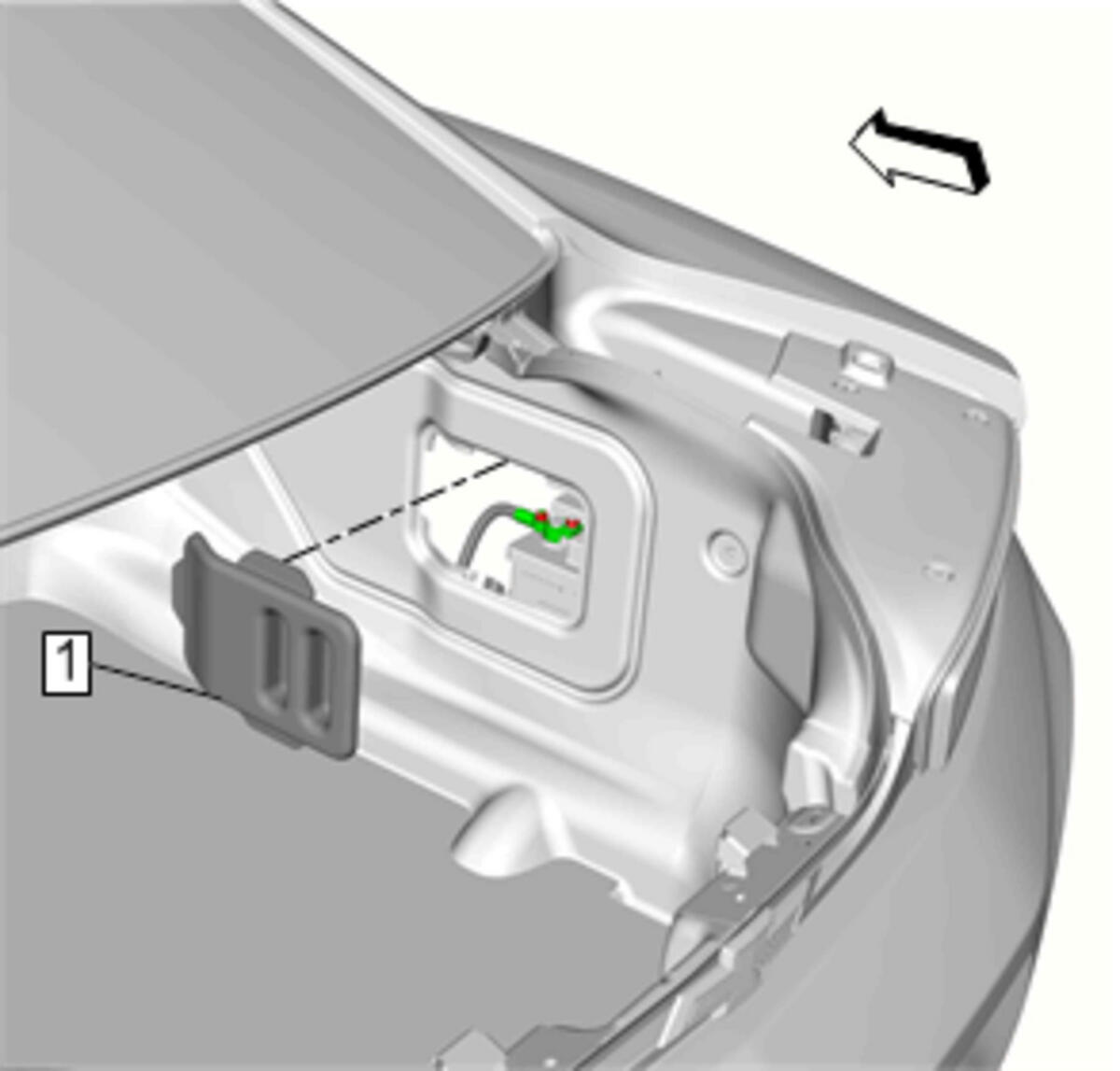

  3. GM4195439Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Access Door (1) - Install
