Installation Procedure

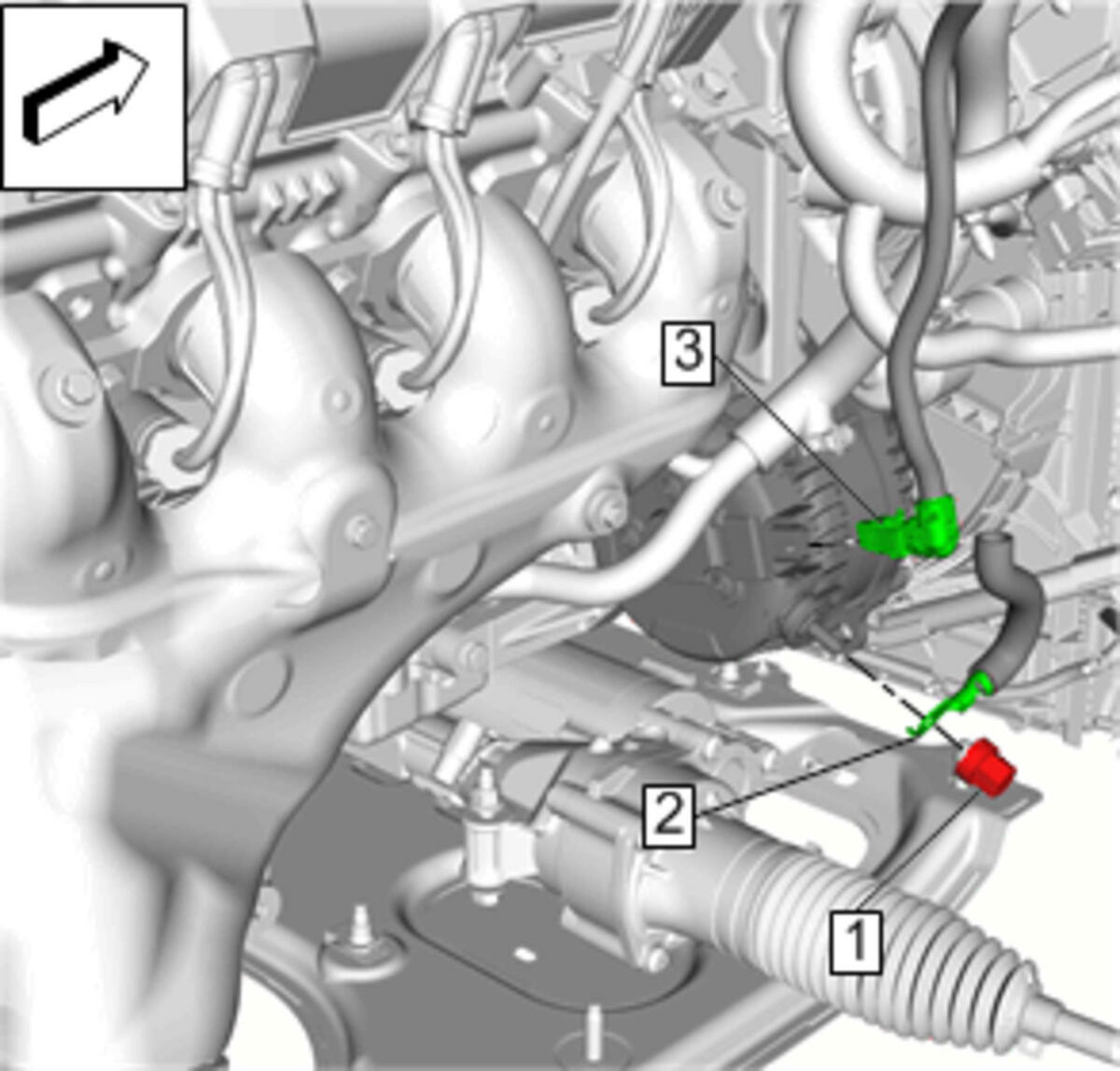

  1. GM4210404Courtesy of GENERAL MOTORS COMPANY

    Starter Solenoid Cable (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Fastener (1) - Install and tighten 15 N.m (11 lb ft)
  3. Electrical Connector (3) - Connect

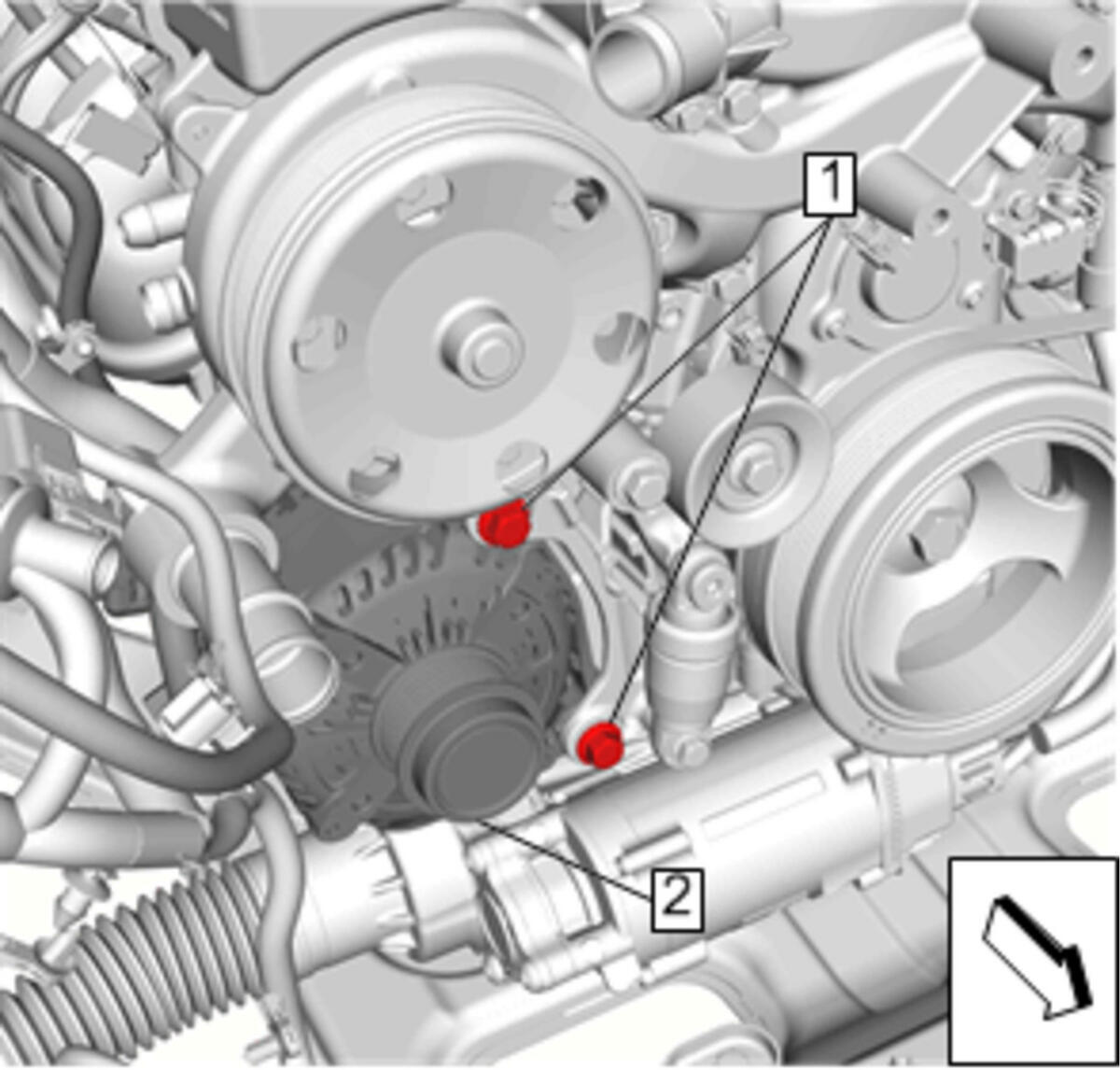

  4. GM4210406Courtesy of GENERAL MOTORS COMPANY

    Generator (2) - Install

  5. Generator Bolt (1) - Install and tighten [2x] 58 N.m (43 lb ft)

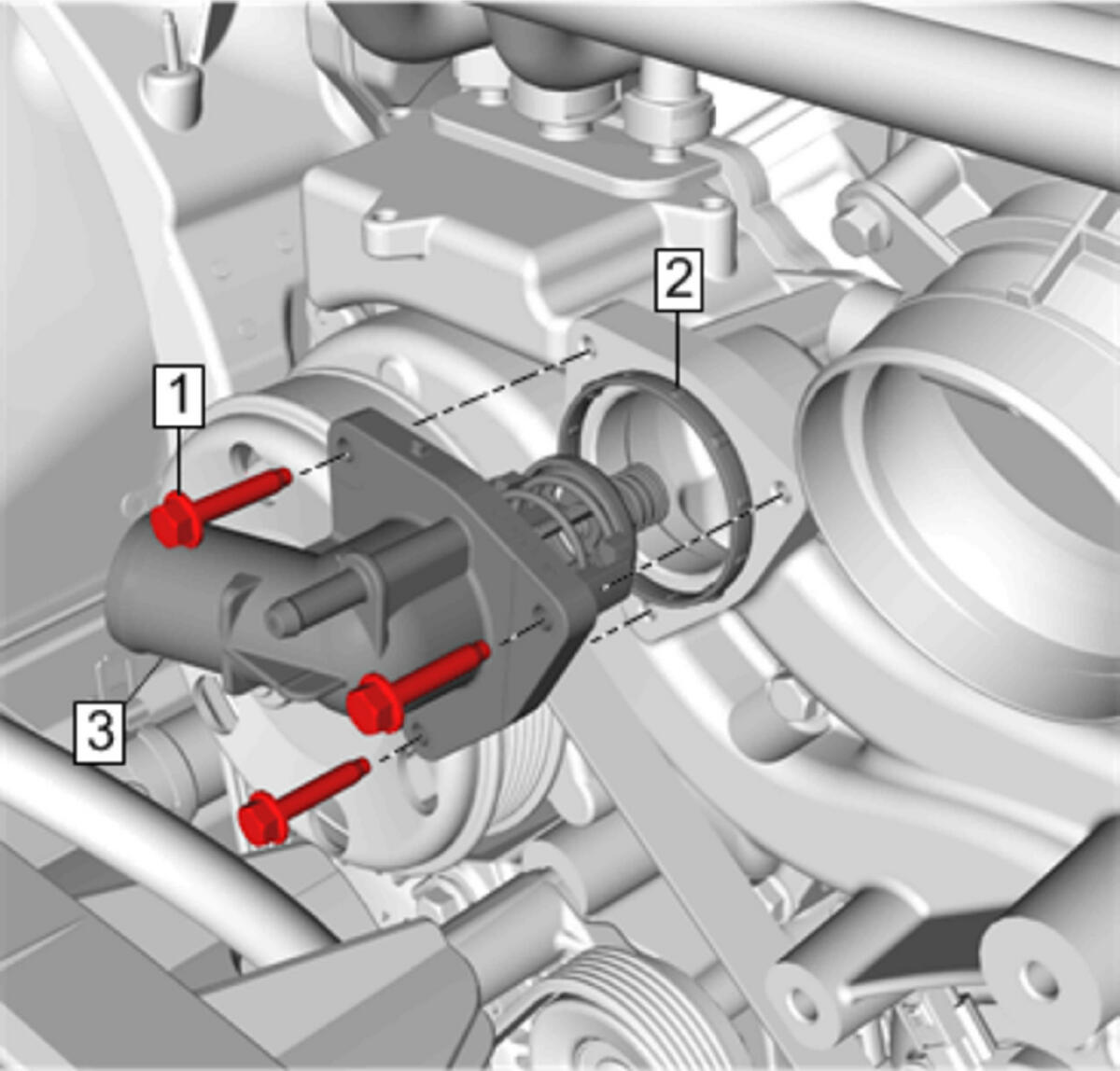

  6. GM4184124Courtesy of GENERAL MOTORS COMPANY

    Water Outlet (3) - Install - Water Outlet Replacement (LT1, LT4)

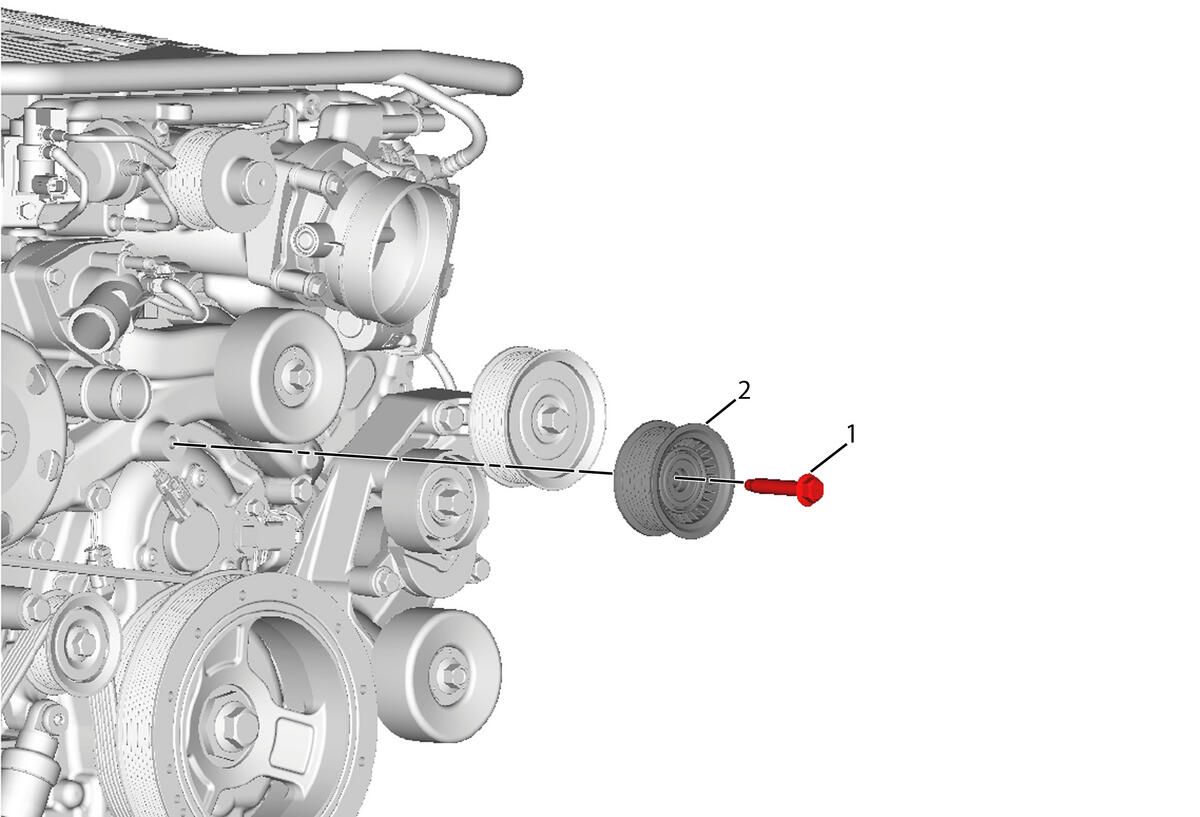

  7. GM3966749Courtesy of GENERAL MOTORS COMPANY

    Supercharger Belt Idler Pulley (2) - Install - Supercharger Belt Idler Pulley Replacement (Engine Coolant Manifold - Upper) , or Supercharger Belt Idler Pulley Replacement (Engine Coolant Manifold - Lower) , or Supercharger Belt Idler Pulley Replacement (Supercharger Belt Tensioner Bracket)

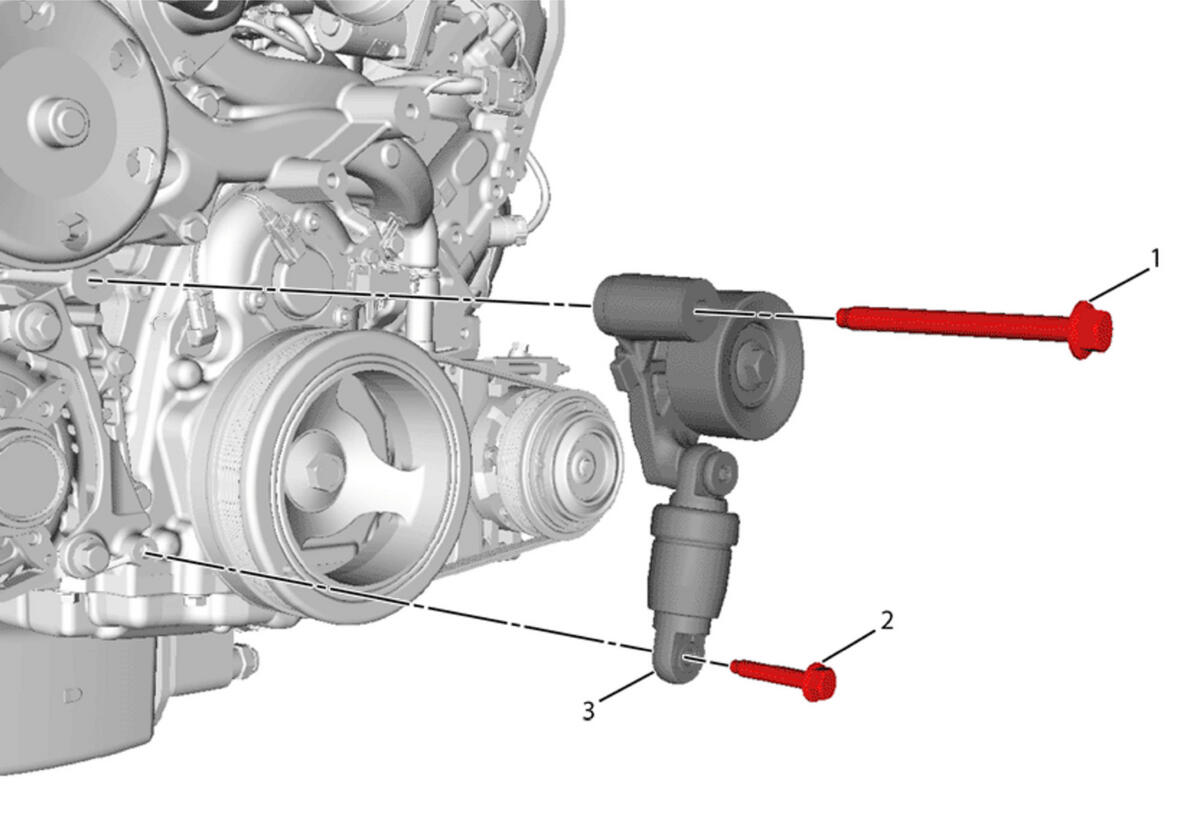

  8. GM4204921Courtesy of GENERAL MOTORS COMPANY

    Drive Belt Tensioner (3) - Install - Drive Belt Tensioner Replacement - Accessory (LT4)

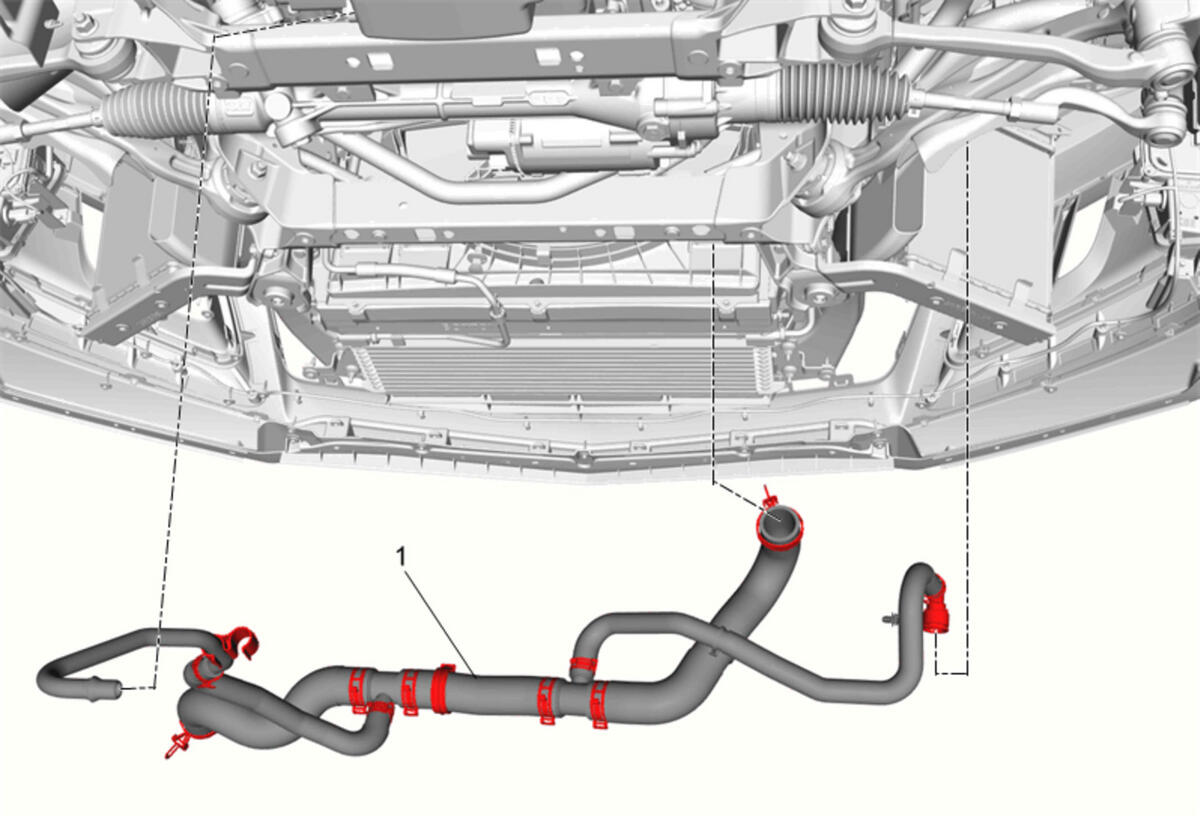

  9. GM4551295Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose (1) - Install - Radiator Outlet Hose Replacement (LT4)

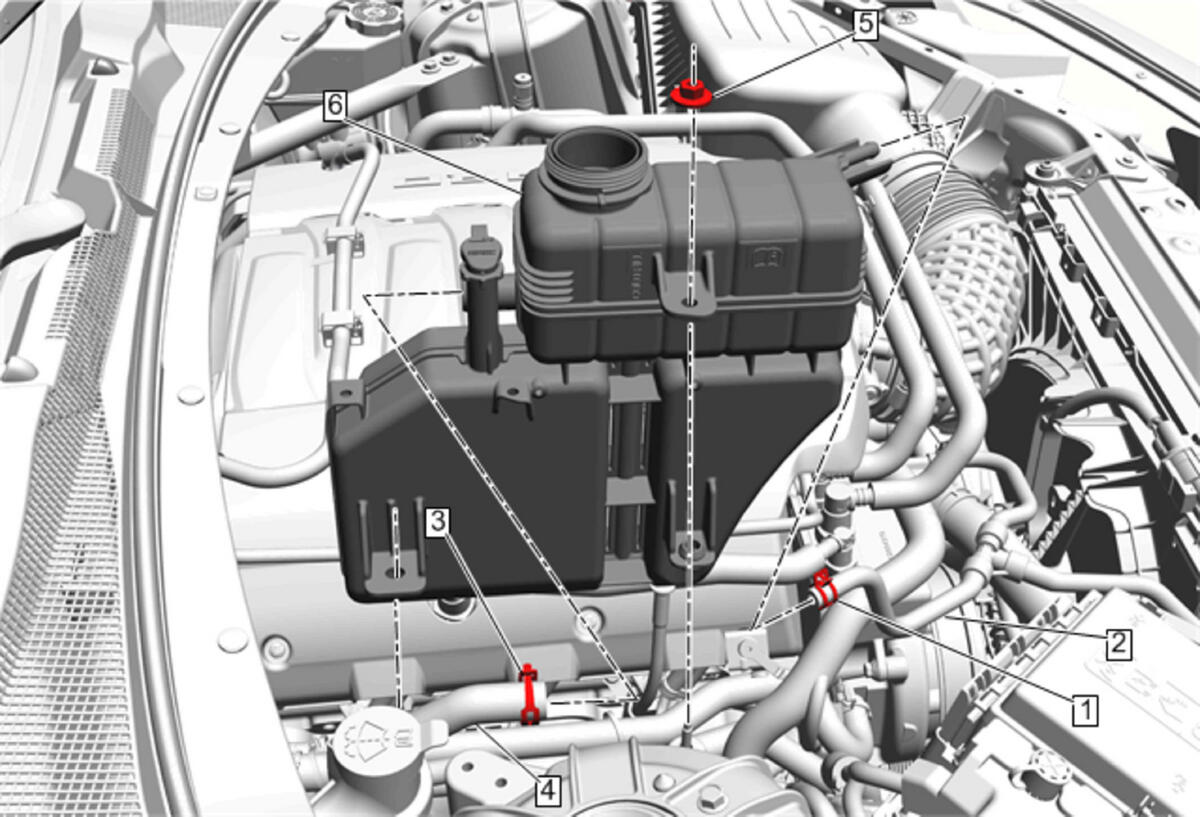

  10. GM4178662Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank (6) - Install - Radiator Surge Tank Replacement (LTG)

  11. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection .
