Rear of Front Fascia Components

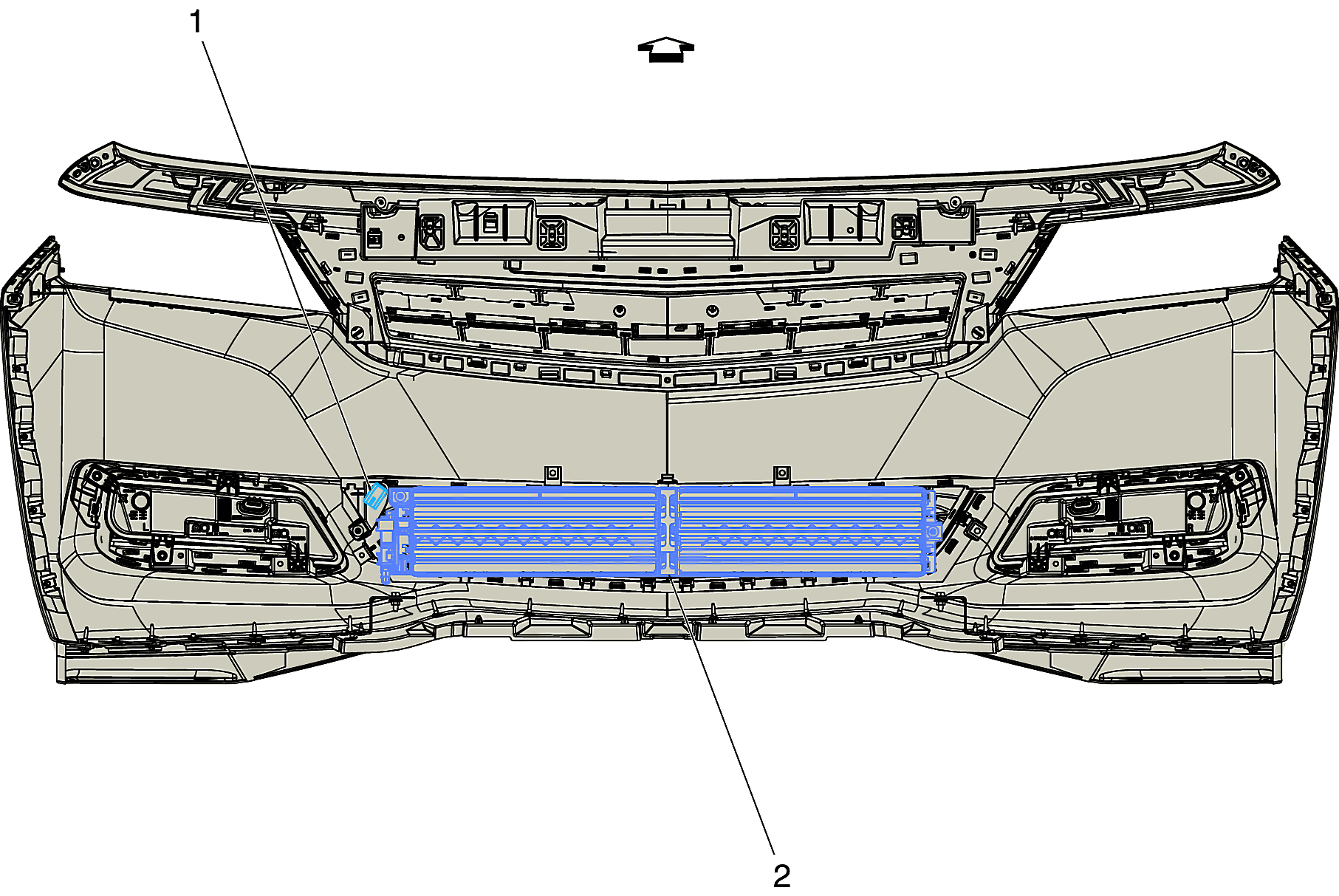

GM4820962Courtesy of GENERAL MOTORS COMPANY
Rear of Front Fascia Components

Component Name Callout
B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor 1
M96A Active Grille Air Shutter 1 Actuator 2
