Accessory AC and DC Power Control Module Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

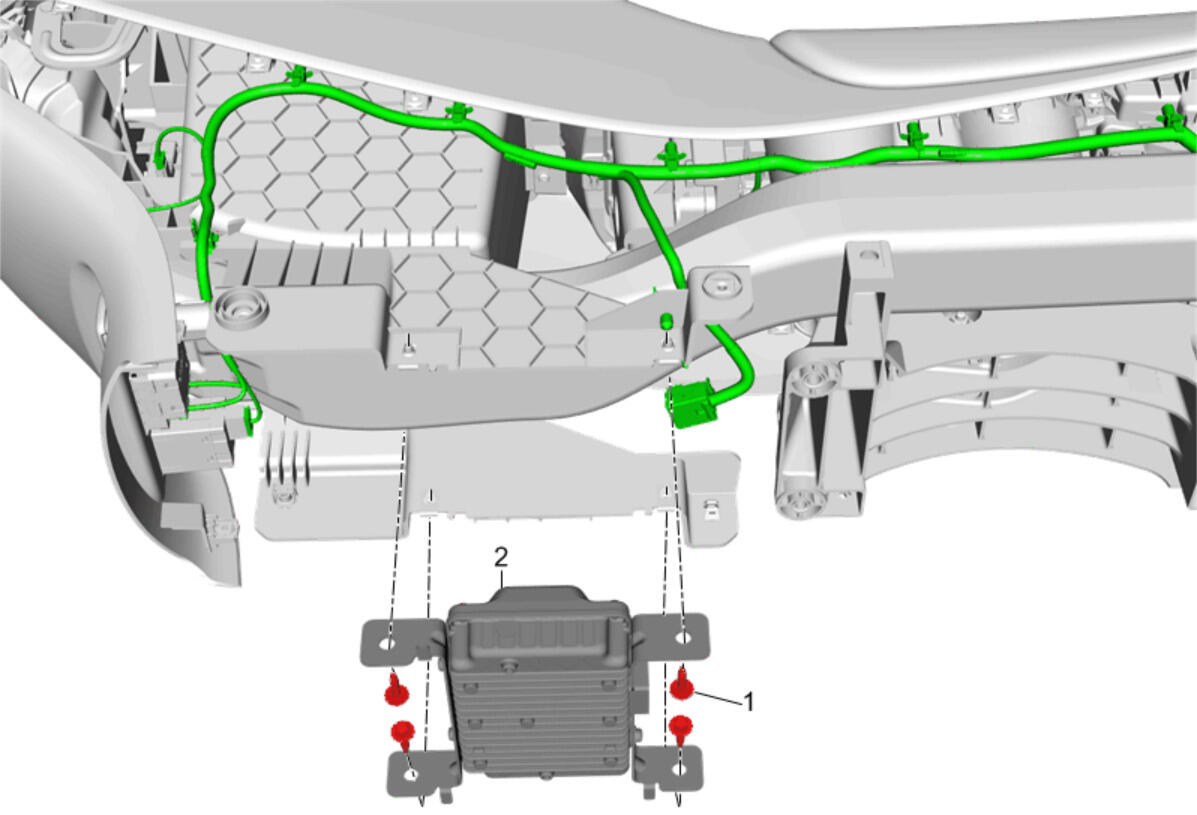

Callout	Component Name
Preliminary Procedures Battery Negative Cable Disconnection and Connection (Without KL9)Battery Negative Cable Disconnection and Connection (With KL9) Front Floor Console Replacement
1	Accessory AC and DC Power Control Module Fastener[4x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Accessory AC and DC Power Control Module Procedure Disconnect the electrical connector. Transfer components as necessary. Control Module References for programming and set-up information, if required.

Callout

Component Name

Preliminary Procedures

Battery Negative Cable Disconnection and Connection (Without KL9)Battery Negative Cable Disconnection and Connection (With KL9)
Front Floor Console Replacement

Accessory AC and DC Power Control Module Fastener[4x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Accessory AC and DC Power Control Module

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
Control Module References for programming and set-up information, if required.
