Door Lock Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

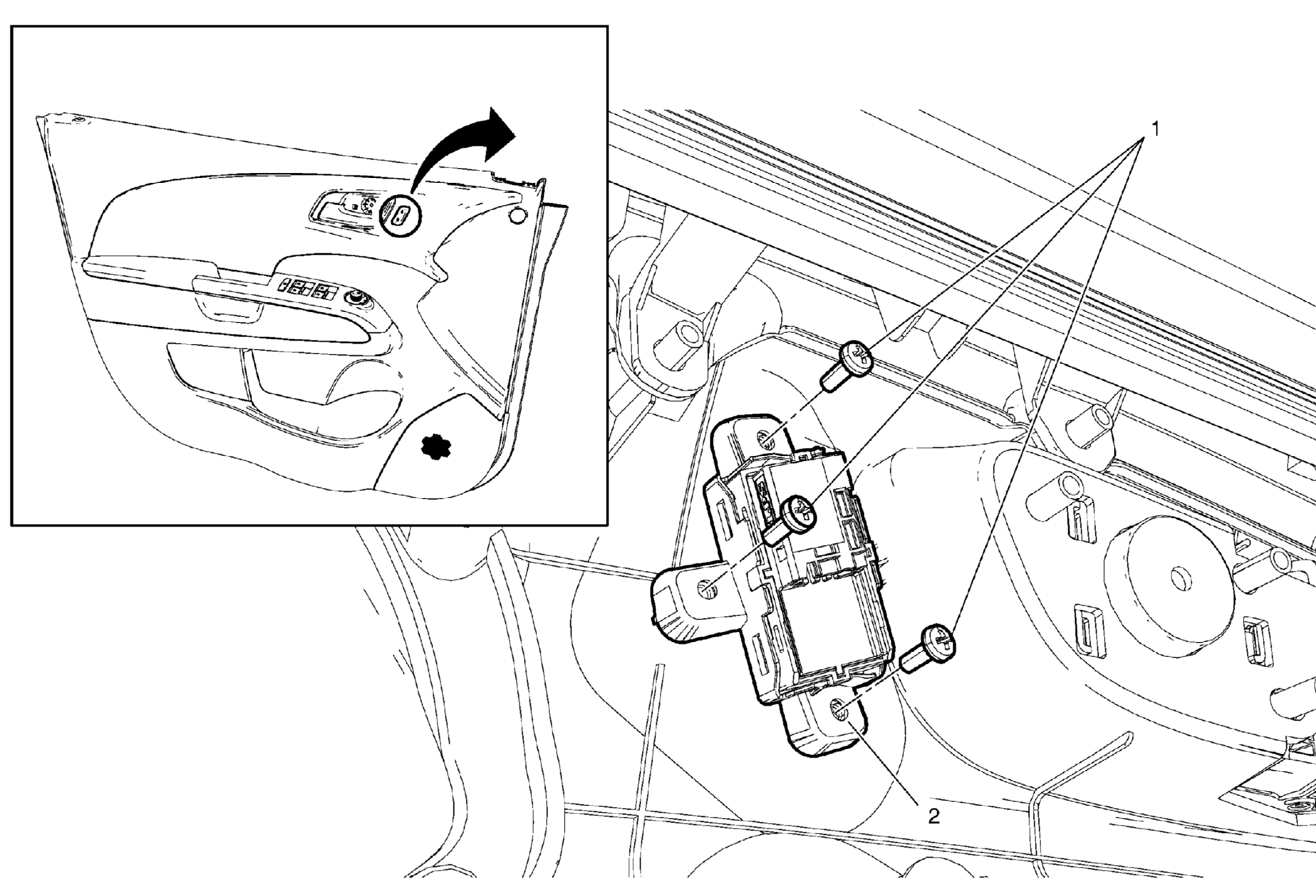

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement .
1	Door Lock Switch Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Door Lock Switch Assembly Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures, if required.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement .

Door Lock Switch Fasteners (Qty: 3)

CAUTION:

Door Lock Switch Assembly

Procedure

Disconnect the electrical connector.
Refer to Control Module References for programming and set up procedures, if required.
