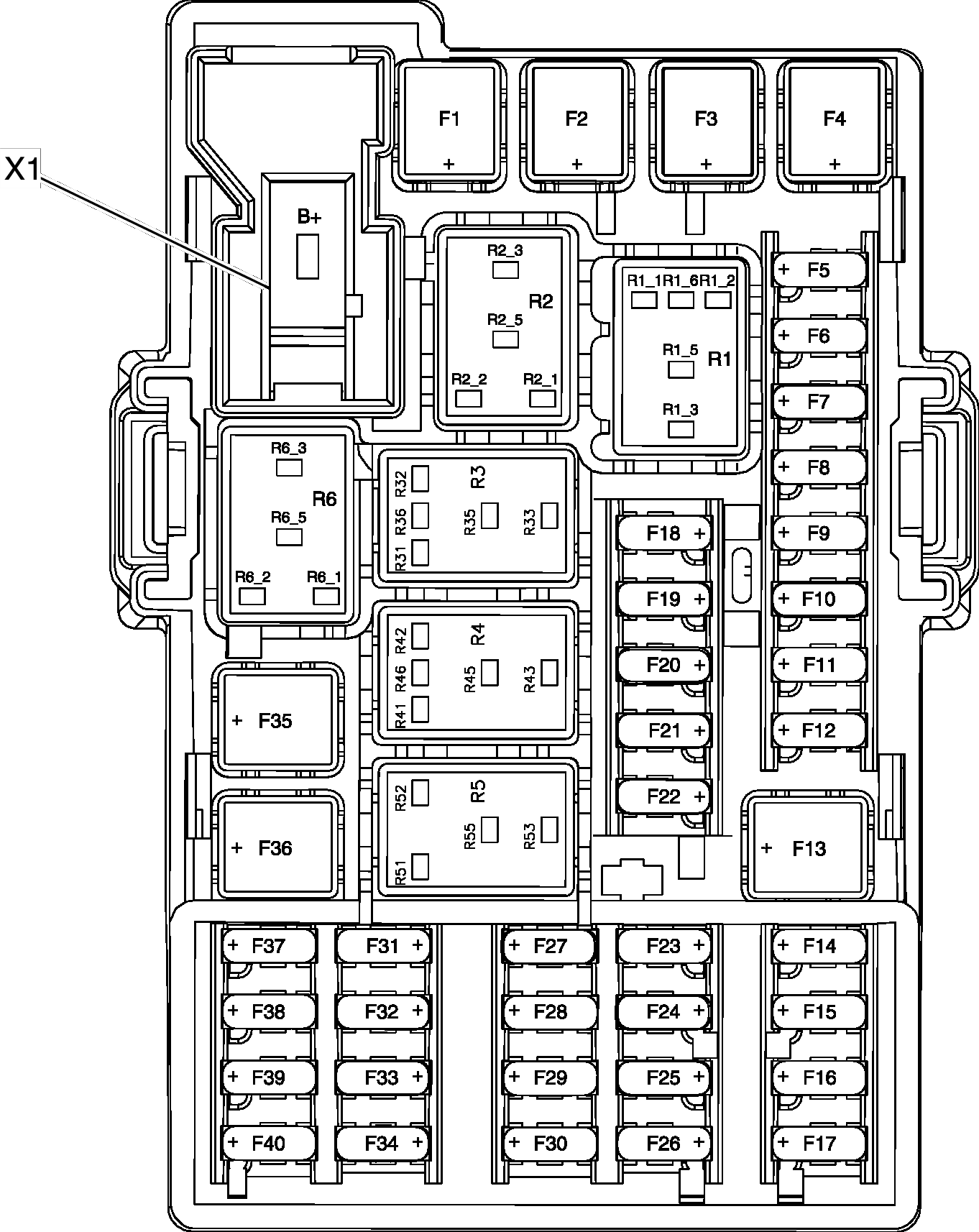

X51A Fuse Block - Instrument Panel, Top View

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
F1	IRAP ACCY	F1DA	30A	KR76 Retained Accessory Power Relay
F2	EMPTY	F2DA	-	Not Used
F3	PWR WNDW FRONT	F3DA	30A	M74D Window Motor - Driver M74P Window Motor - Passenger
F4	EMPTY	F4DA	-	Not Used
F5	BCM1	F5DA	20A	K9 Body Control Module
F6	BCM2	F6DA	20A	K9 Body Control Module
F7	BCM3	F7DA	30A	K9 Body Control Module
F8	BCM4	F8DA	30A	K9 Body Control Module
F9	BCM5	F9DA	25A	K9 Body Control Module
F10	BCM6	F10DA	20A	K9 Body Control Module
F11	BCM7	F11DA	20A	K9 Body Control Module
F12	BCM8	F12DA	30A	K9 Body Control Module
F13	PWR WNDW REAR	F13DA	30A	S79LR Window Switch - Left Rear S79RR Window Switch - Right Rear
F14	L/GATE	F14DA	10A	KR95A Liftgate Release Relay (Hatchback) KR95B Rear Compartment Lid Release Relay (Notchback)
F15	SDM	F15DA	10A	K36 Inflatable Restraint Sensing and Diagnostic Module
F16	DLC	F16DA	15A	X84 Data Link Connector
F17	DLIS	F17DA	2A	S39 Ignition Switch
F18	HVAC1	F18DA	10A	K33 HVAC Control Module
F19	CGM	F19DA	20A	K56 Serial Data Gateway Module
F20	LDW/FCA	F20DA	10A	B174W Frontview Camera - Windshield
F21	TRAILER1	F21DA	20A	Not Used
F22	AUDIO	F22DA	15A	A11 Radio X83 Auxiliary Audio Input
F23	RAIN SNSR	F23DA	5A	Not Used
F24	PAS/SBSA	F24DA	10A	K182 Parking Assist Control Module
F25	TELEMATICS	F25DA	10A	K73 Telematics Communication Interface Control Module
F26	IPC	F26DA	10A	P16 Instrument Cluster
F27	SPARE	F27DA	20A	Not Used
F28	IPC/AOS	F28DA	10A	P14 Passenger Air Bag Disable Indicator P16 Instrument Cluster
F29	EMPTY	F29DA	-	Not Used
F30	HLLD SW	F30DA	10A	S30 Headlamp Switch
F31	HTD STR WHL	F31DA	7.5A	X85 Steering Wheel Air Bag Coil M8 Blower Motor
F32	HVAC2	F32DA	10A	K33 HVAC Control Module M8 Blower Motor
F33	CLOCKSPRING	F33DA	2A	S70L Steering Wheel Controls Switch - Left (K34) S70R Steering Wheel Controls Switch - Right X85 Steering Wheel Air Bag Coil
F34	TRAILER2	F34DA	10A	Not Used
F35	EMPTY	F35DA	-	Not Used
F36	EMPTY	F36DA	-	Not Used
F37	ESCL	F37DA	10A	Not Used
F38	CIGAR APO	F38DA	20A	E32 Cigarette Lighter Receptacle
F39	S/ROOF SW	F39DA	10A	K61 Sunroof Control Module (CF5) S72 Sunroof Switch (CF5)
F40	SPARE	F40DA	10A	Not Used
Relays
R1	-	-	-	Not Used
R2	IRAP RELAY	KR76 Retained Accessory Power Relay	35A	F38DA F39DA
R3	L/GATE RELAY	KR95A Liftgate Release Relay	20A	M30 Liftgate Latch (Hatchback)
R3	L/GATE RELAY	KR95B Rear Compartment Lid Release Relay	20A	M40 Rear Compartment Lid Latch (Notchback)
R4	-	-	-	Not Used
R5	RUN RELAY	KR32E Blower Motor Relay	35A	F31DA F32DA M8 Blower Motor
R6	RAP/ACCY	KR76 Retained Accessory Power Relay	35A	F38DA F39DA
