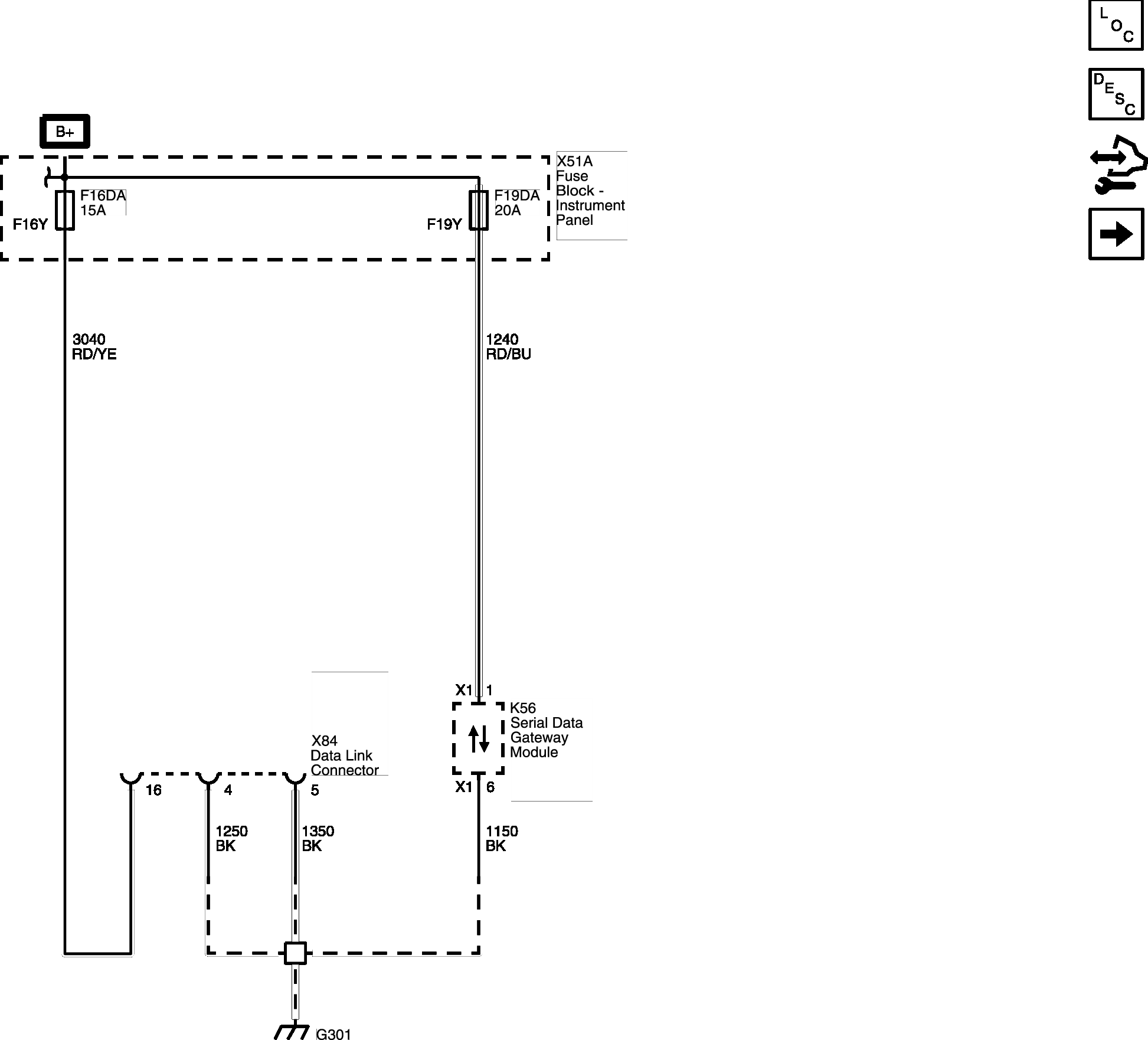

Serial Data Gateway Module and Data Link Connector Power and Ground
Courtesy of GENERAL MOTORS COMPANY
