Installation Procedure
WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Ensure the fork of the brake pedal position sensor is positioned over the brake pedal post.
Install the brake pedal position sensor to the brake pedal bracket.

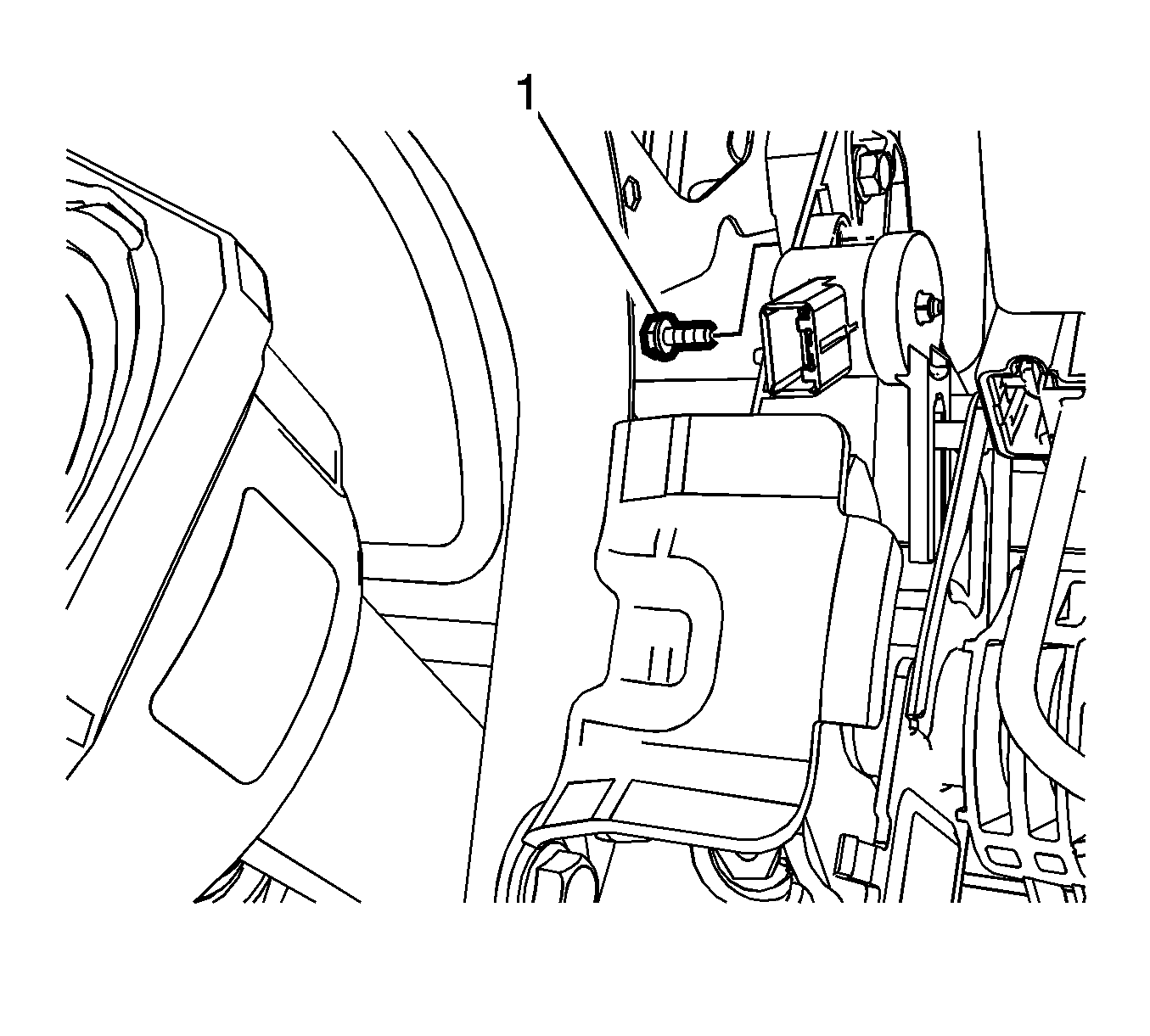

- Install the brake pedal position sensor bolt (1) and tighten to 3 N.m (27 lb in).
- Connect the brake pedal position sensor electrical connector.
- Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
- Install the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement .
CAUTION:
Refer to Fastener Caution .
