Stop Bulb Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

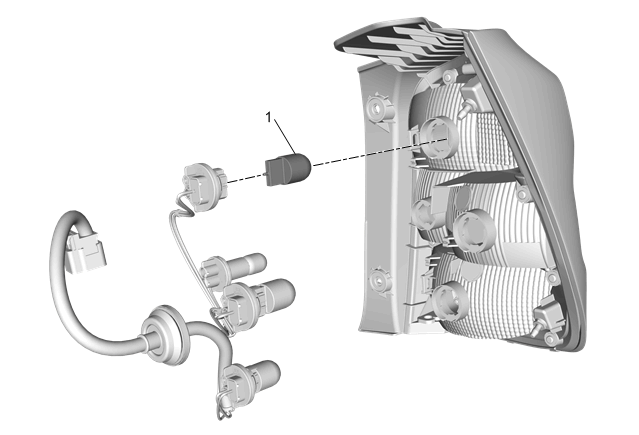

GM4625386Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Tail Lamp Replacement (Sedan) Tail Lamp Replacement (Hatchback) .
1 Stop Bulb

Procedure

  1. Rotate the bulb socket counterclockwise to remove it from the lamp housing.
  2. Pull the bulb straight from the lamp socket.
