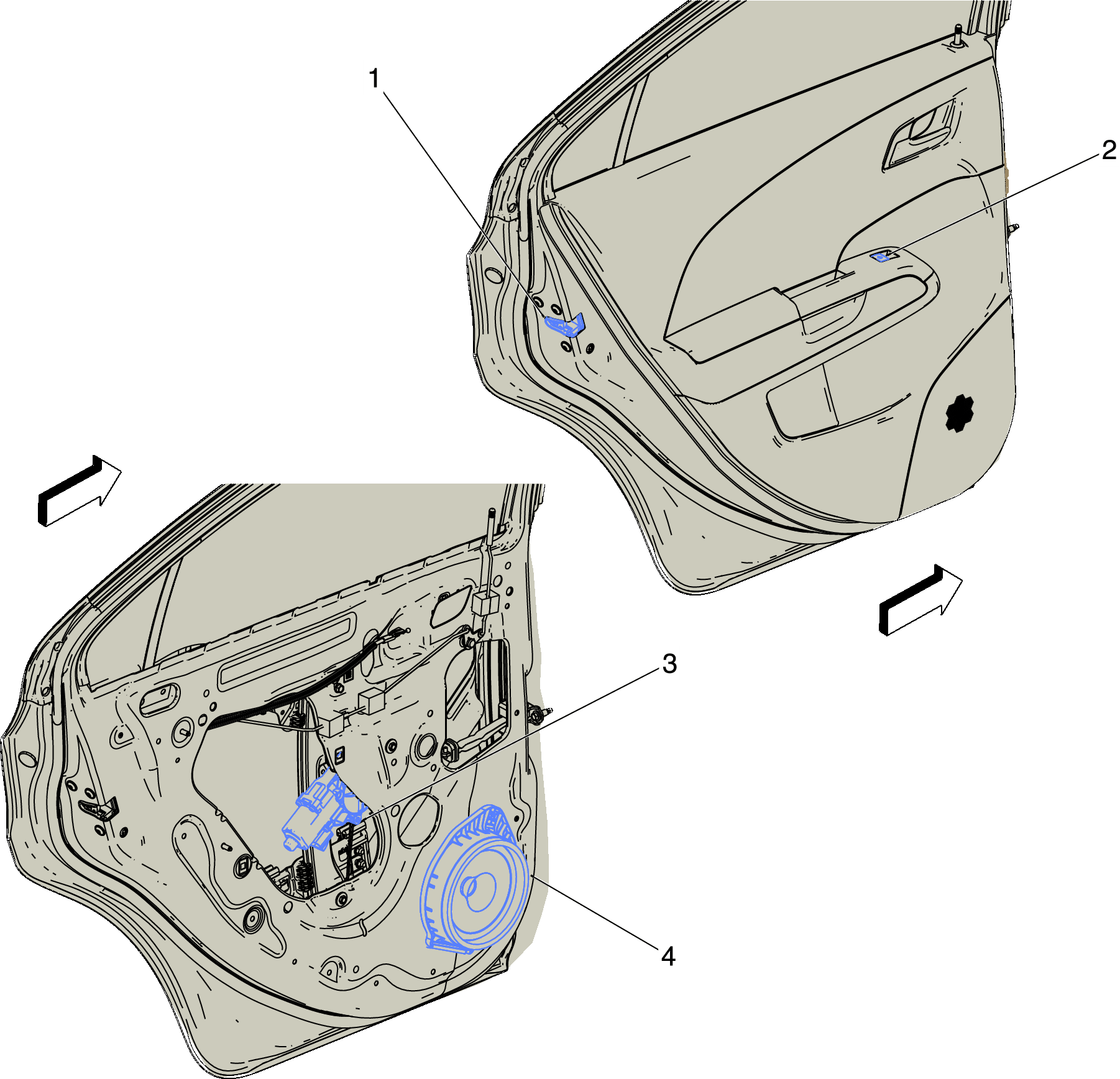

Left Rear Door Components

GM2540402Courtesy of GENERAL MOTORS COMPANY
Left Rear Door Components

Component Name Callout
A23LR Door Latch Assembly - Left Rear A23LR Door Latch Assembly - Left Rear 1
S79LR Window Switch - Left Rear (AEQ) S79LR Window Switch - Left Rear 2
M74LR Window Motor - Left Rear M74LR Window Motor - Left Rear 3
P19AL Speaker - Left Rear Door P19AL Speaker - Left Rear Door (UQ3) 4
