Home
>>
Chevrolet
>>
2020
>>
Spark LS, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>
Local Interconnect Network (LIN 2 of 2)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

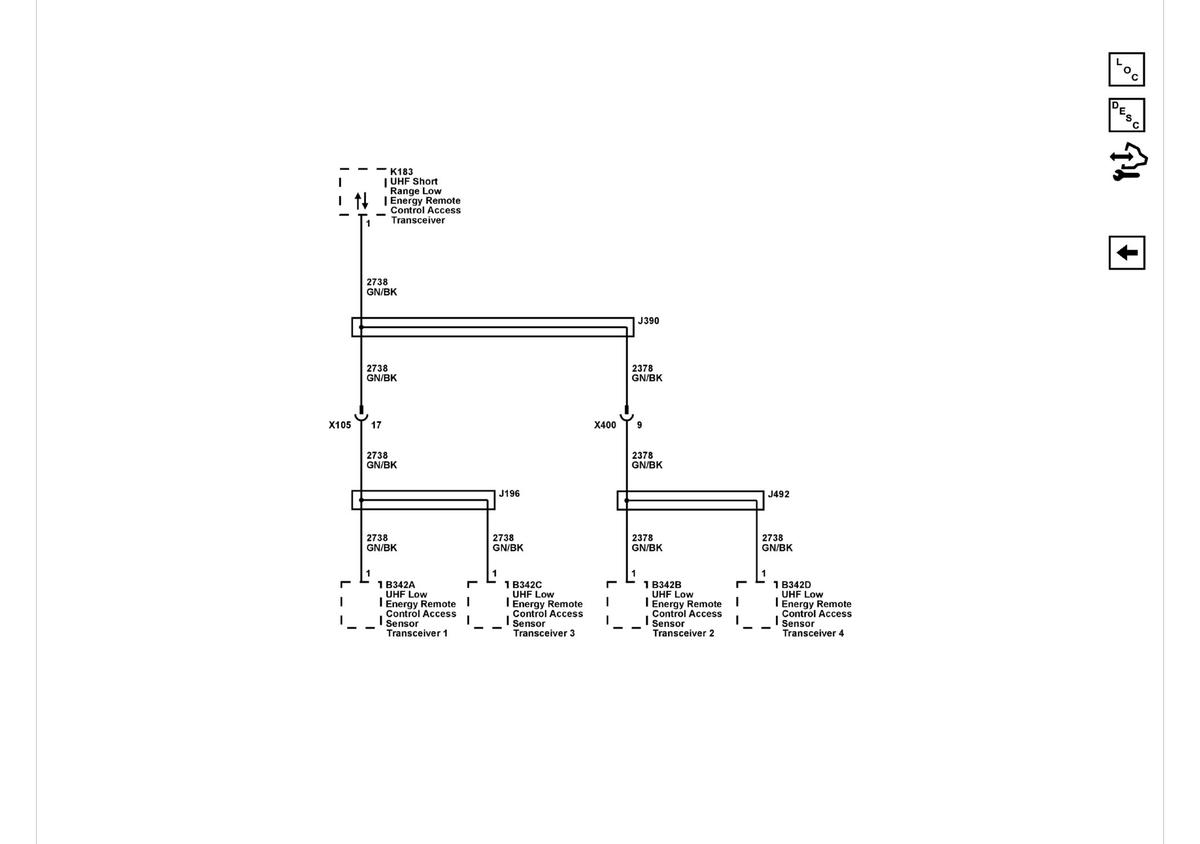

Local Interconnect Network (LIN 2 of 2)
Courtesy of GENERAL MOTORS COMPANY
