Spark Plug Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the ignition coils. Refer to Ignition Coil Replacement , and Ignition Coil Replacement (LV7) . |
|

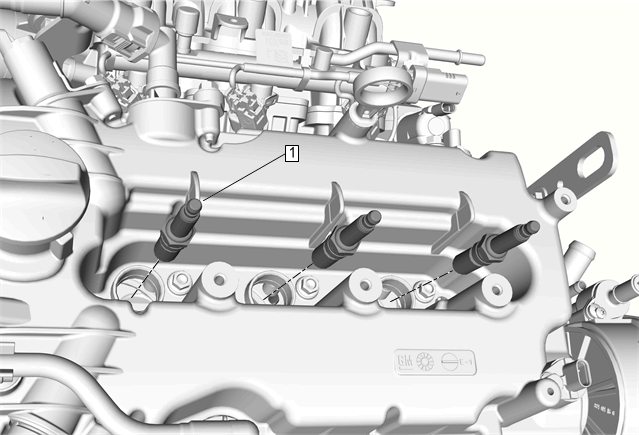

| 1 | Spark Plug
CAUTION:
Refer to Fastener Caution . Procedure Remove the spark plug (1). Tighten 17 N.m (13 lb ft) Special Tools EN-51149 Spark Plug Wrench For equivalent regional tools, refer to Special Tools . |
