Installation Procedure
Front Side Door Inside Handle Cable (1) - Install - Front Side Door Inside Handle Cable Replacement
Front Side Door Outside Handle Cable (1) - Install - Front Side Door Outside Handle Cable Replacement

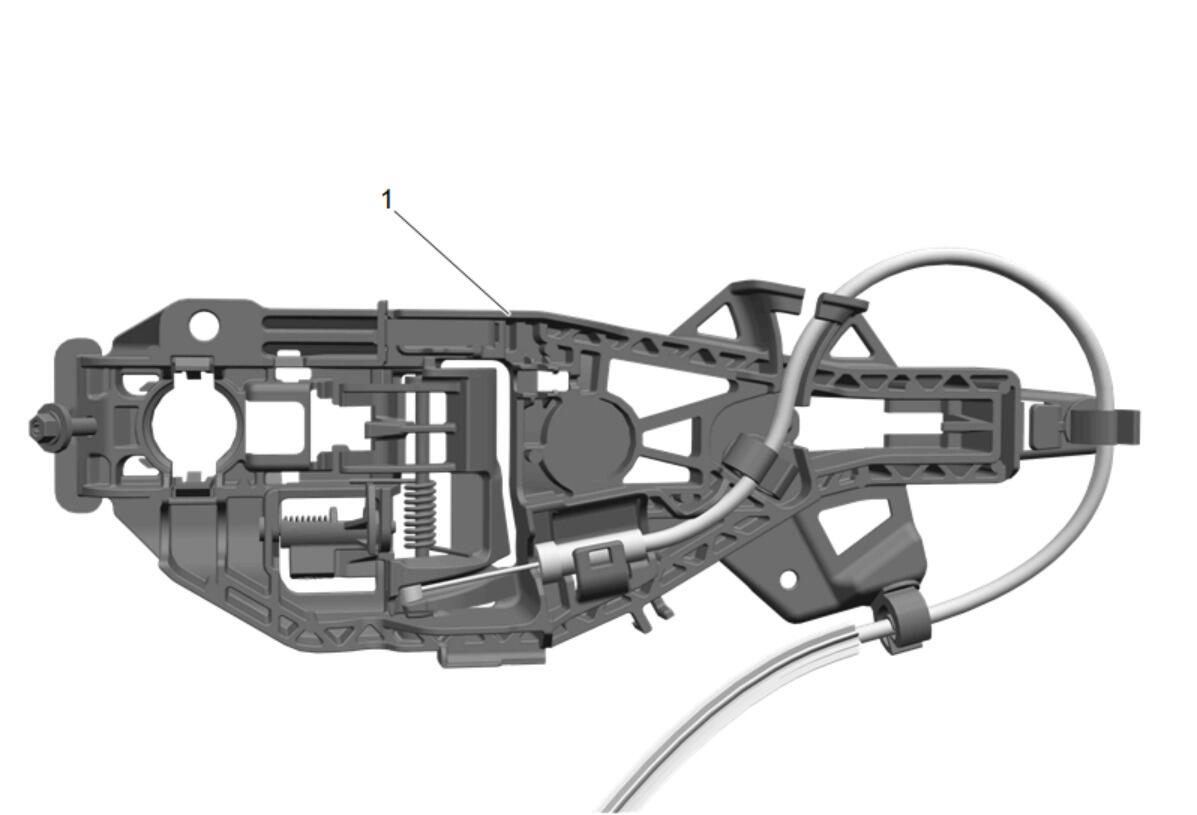

Front Door Outside Handle Bracket (1) - Install
- Front Side Door Latch (2) - Install
-

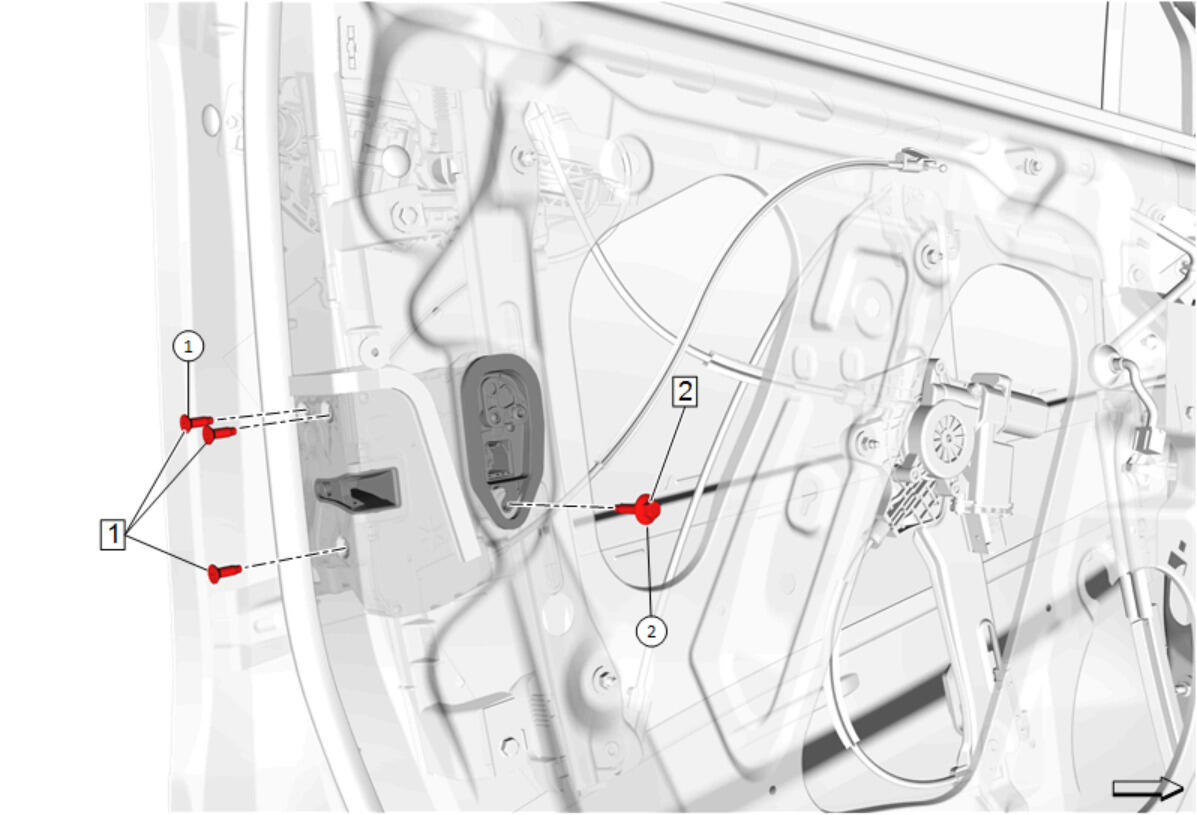

Fig 1: Identifying Front Side Door Latch Bolts And Screw With Loosening Sequence And Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY
CAUTION:Refer to Fastener Caution
NOTE:Install and torque the four latch bolts in proper sequence to prevent damage to the latch mechanism.
Front Side Door Latch Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)
- Front Side Door Latch Screw (2) - Install and tighten 11 N.m (97 lb in)
- Connect the electrical connector.
Front Side Door Outside Handle Bracket (1) - Install - Front Side Door Outside Handle Bracket Replacement

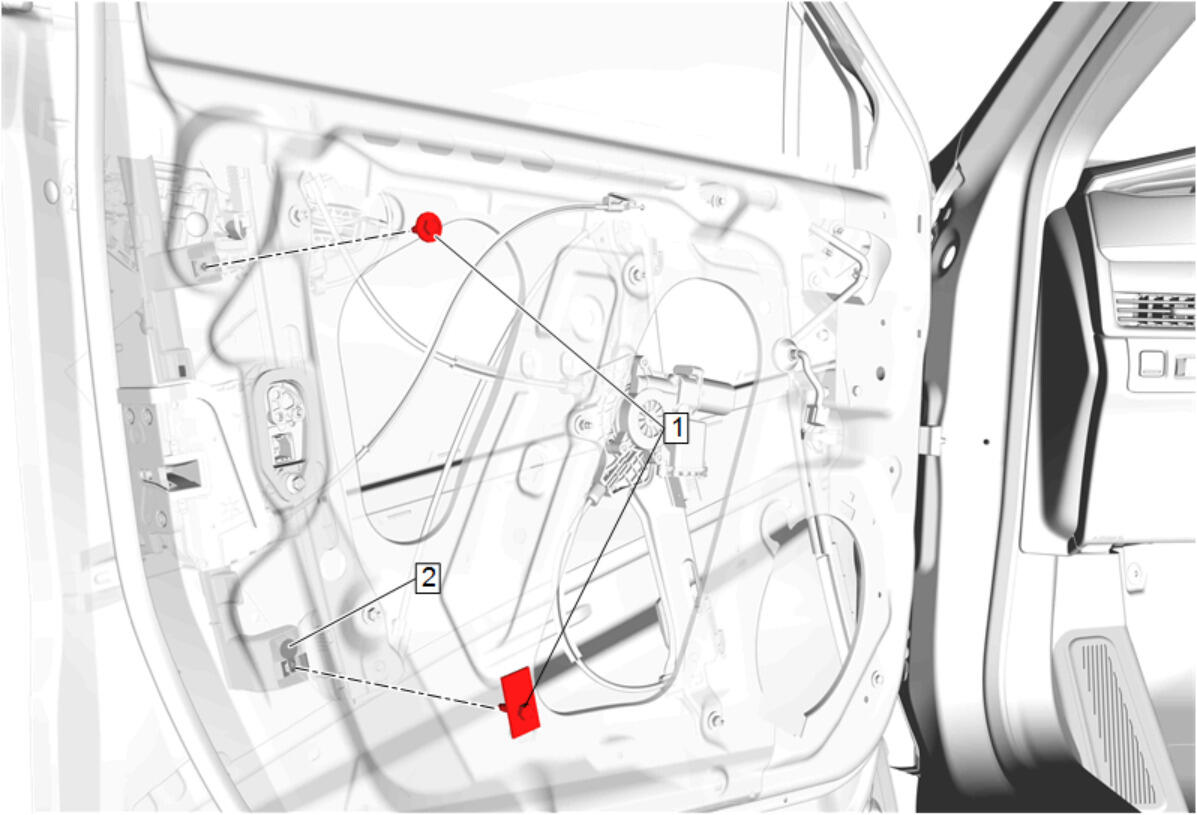

Front Side Door Window Rear Channel Retainer (2) - Install - Front Side Door Window Channel Retainer Replacement

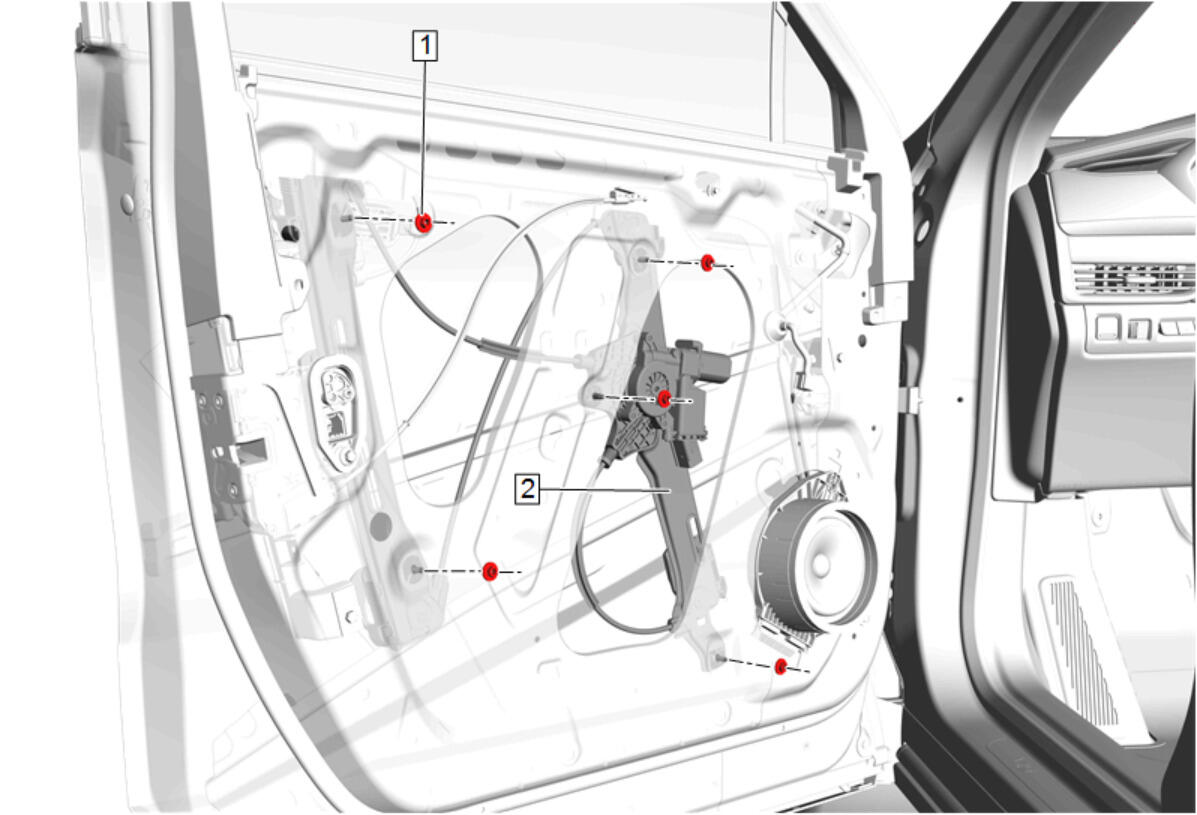

Front Side Door Window Regulator (2) - Install - Front Side Door Window Regulator Replacement

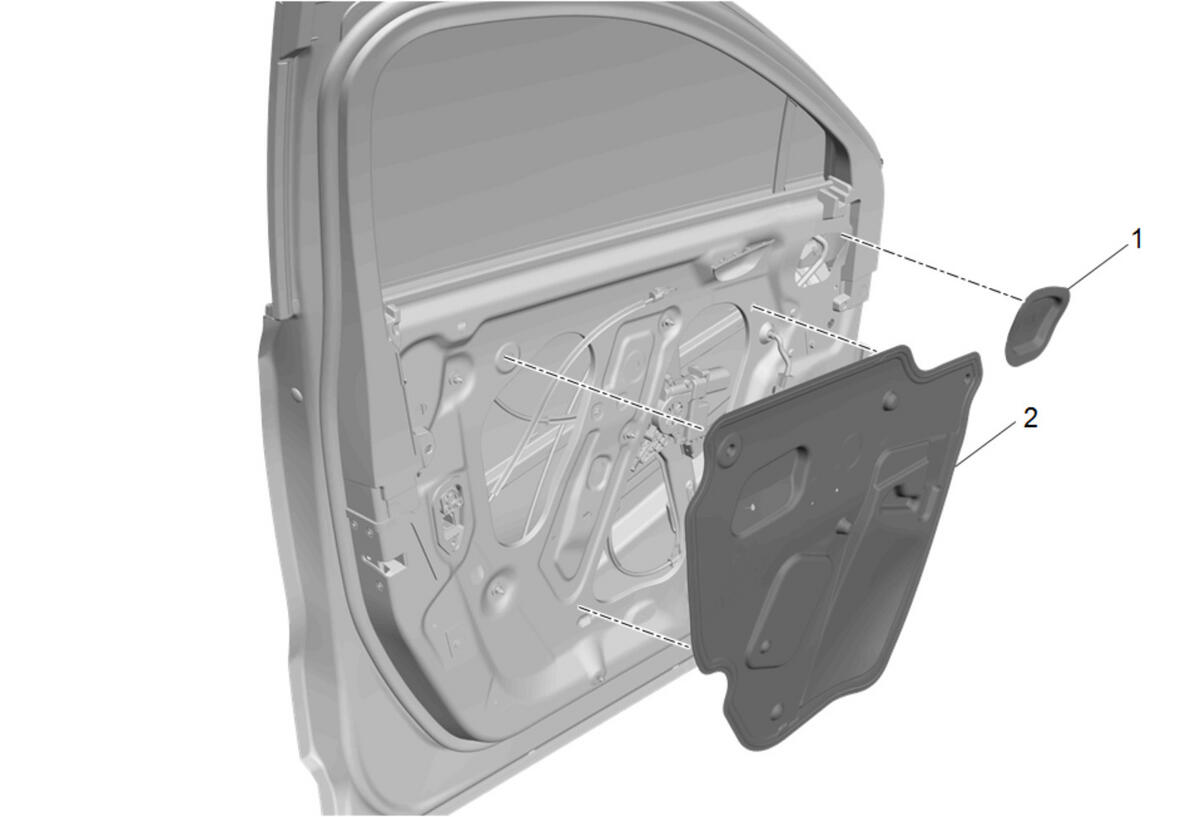

Front Side Door Water Deflector (2) - Install - Front Side Door Water Deflector Replacement
- Inspect the door latch and outside handle for proper operation before installing the door trim.
