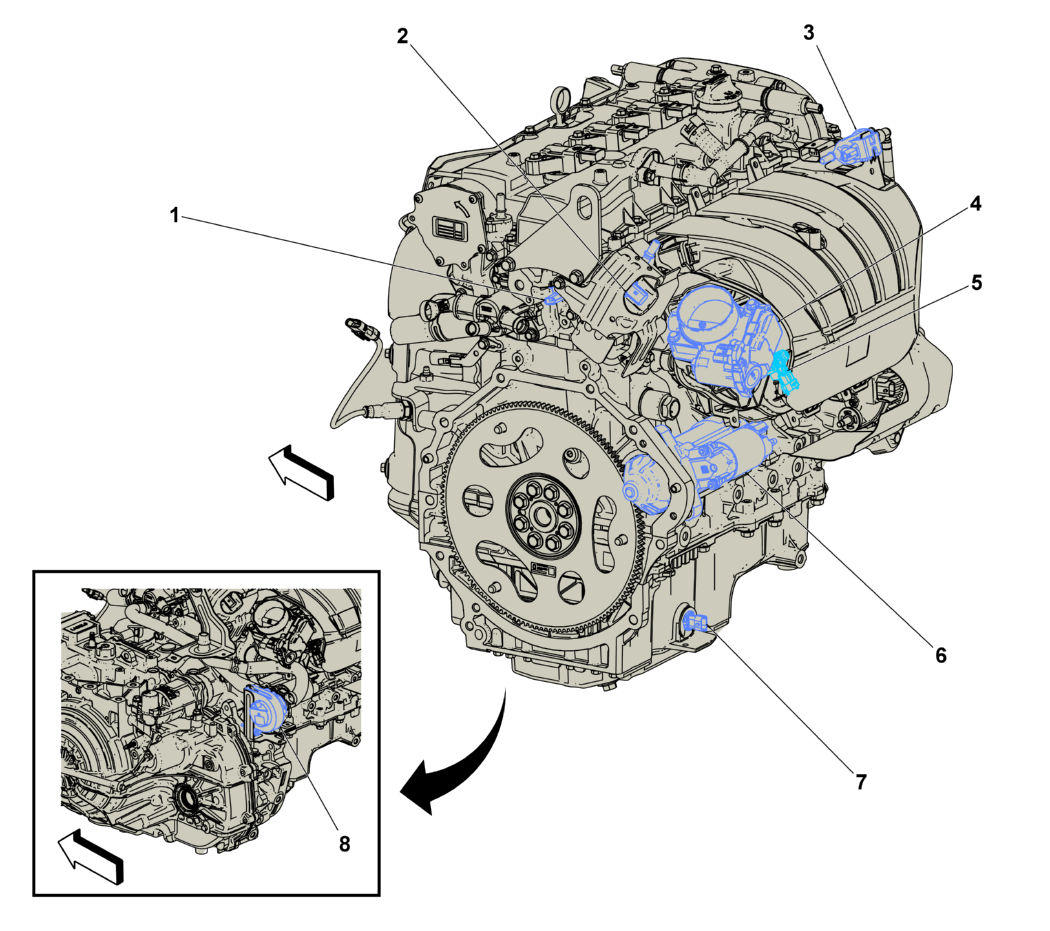

Left Rear of Engine Components (LCV)
Left Rear of Engine Components (LCV)
| Component Name | Callout |
|---|---|
| B23F Camshaft Position Sensor - Intake (LCV/LSY) B23F Camshaft Position Sensor - Intake (LCV/LSY) | 1 |
| G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump | 2 |
| Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LCV/LGX) | 3 |
| Q38 Throttle Body Q38 Throttle Body | 4 |
| B74 Manifold Absolute Pressure Sensor (LCV/LGX) B74 Manifold Absolute Pressure Sensor (LCV) | 5 |
| M64 Starter Motor M64 Starter Motor X1 , or M64 Starter Motor X2 (LCV) | 6 |
| B35 Engine Oil Level Switch (LCV/LGX) B35 Engine Oil Level Switch (LCV) | 7 |
| G36 Auxiliary Heater Coolant Pump (LCV/LGX) G36 Auxiliary Heater Coolant Pump (LCV/LGX) | 8 |
