Right and Rear Engine Compartment Components

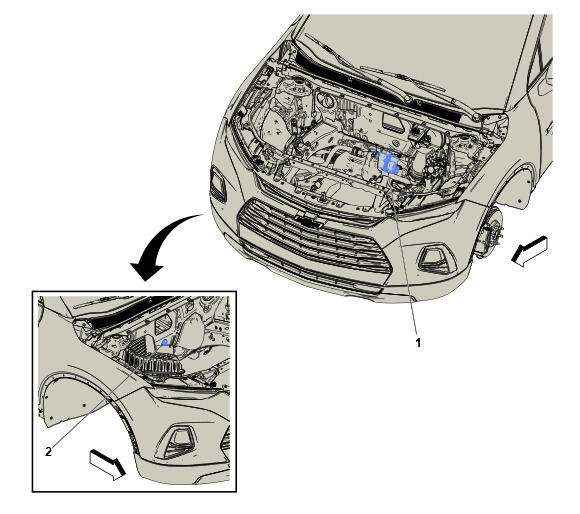

GM5128959Courtesy of GENERAL MOTORS COMPANY
Right and Rear Engine Compartment Components

Component Name Callout
K43 Power Steering Control Module K43 Power Steering Control Module X1 , or K43 Power Steering Control Module X2 (LCV/LGX) , or K43 Power Steering Control Module X2 (LSY) 1
B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor (LCV/LGX) , or B75C Multifunction Intake Air Sensor (LSY) 2
