Rear of Engine Components (LGX)

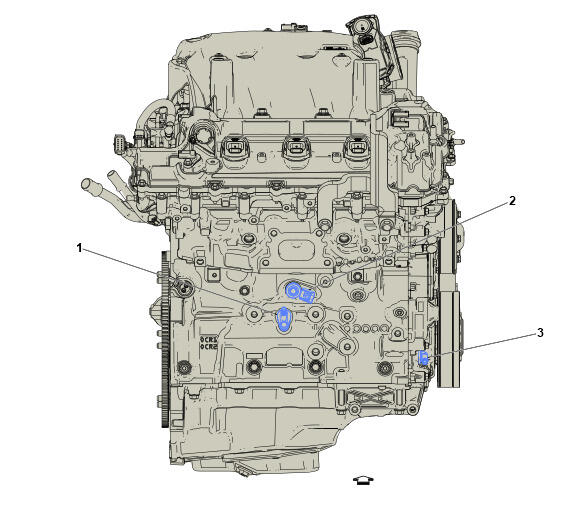

GM5128790Courtesy of GENERAL MOTORS COMPANY
Rear of Engine Components (LGX)

Component Name Callout
B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LCV/LGX) 1
B68A Knock Sensor 1 B68A Knock Sensor 1 (LCV/LGX) 2
Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (LGX) 3
