Installation Procedure

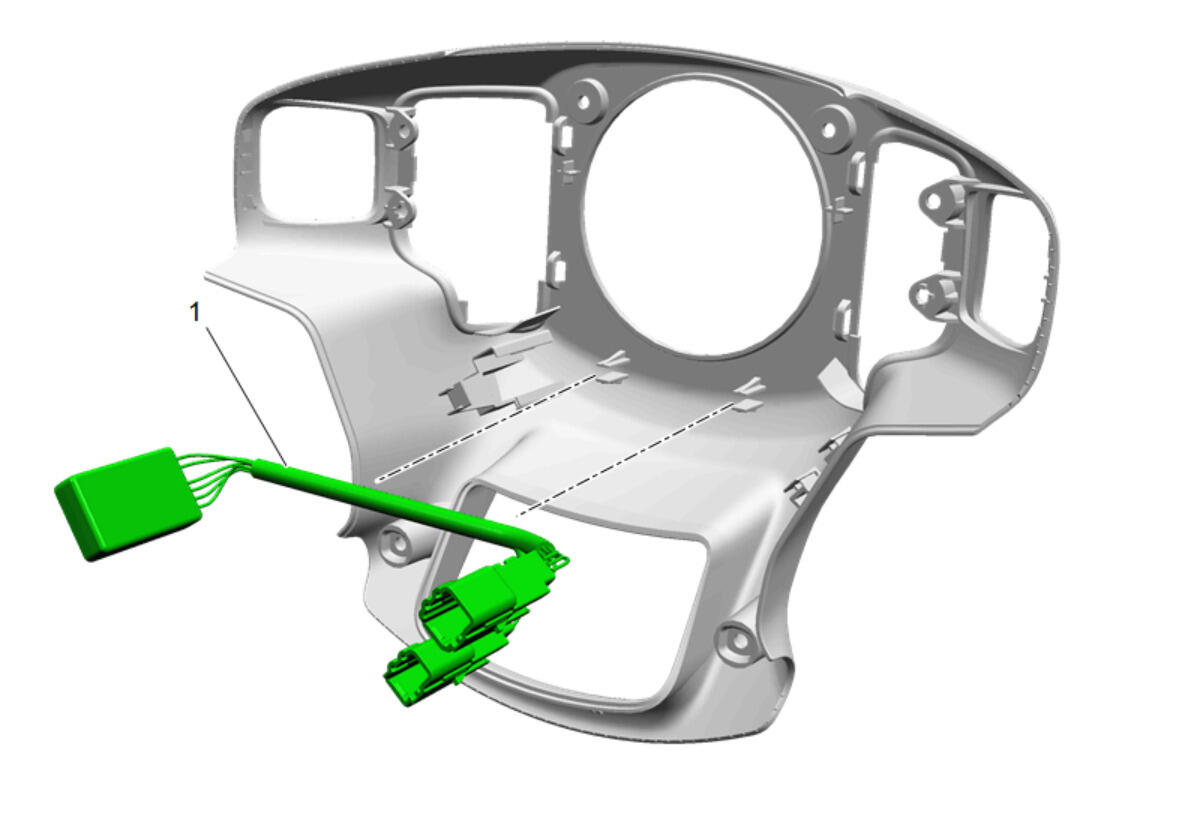

  1. GM5132086Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Heat Control Module (1) - Install

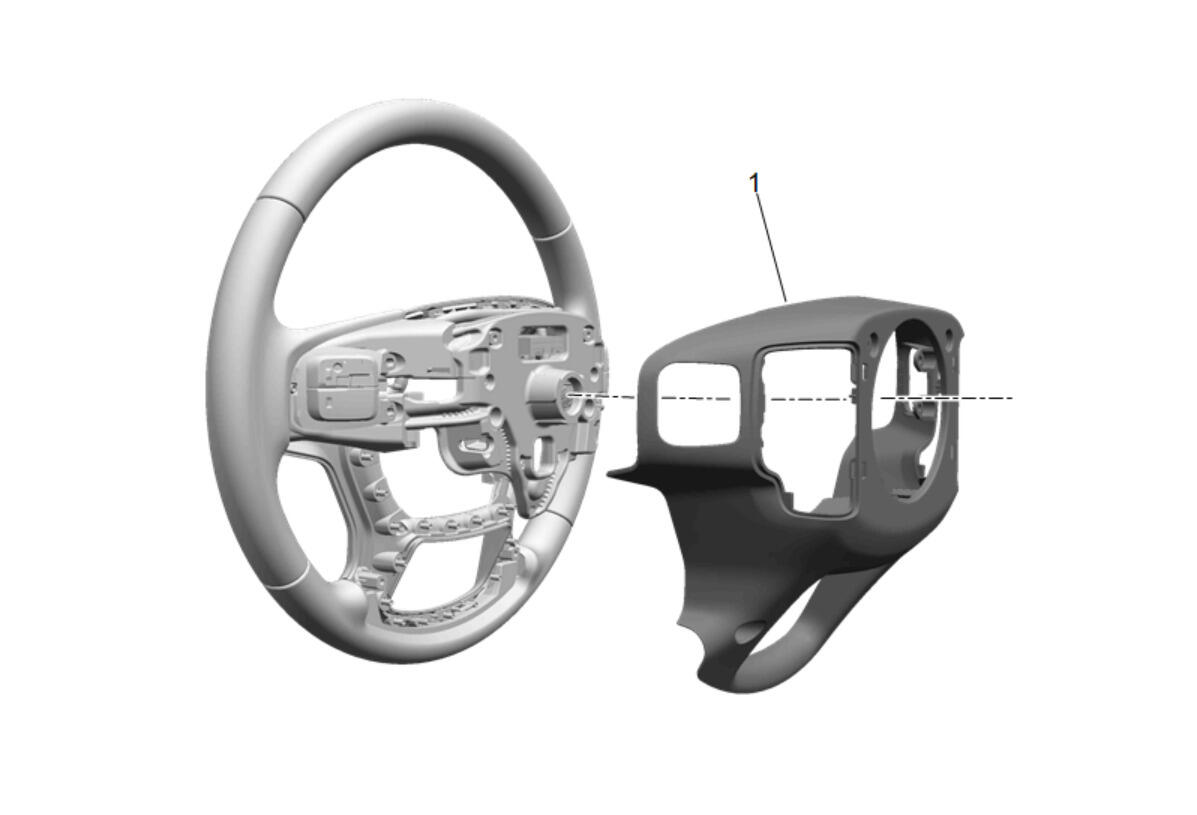

  2. GM5046761Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Shroud (1) - Install - Steering Wheel Shroud Replacement

  3. GM5131786Courtesy of GENERAL MOTORS COMPANY

    Install the steering wheel. (1) Steering Wheel Replacement

  4. Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement

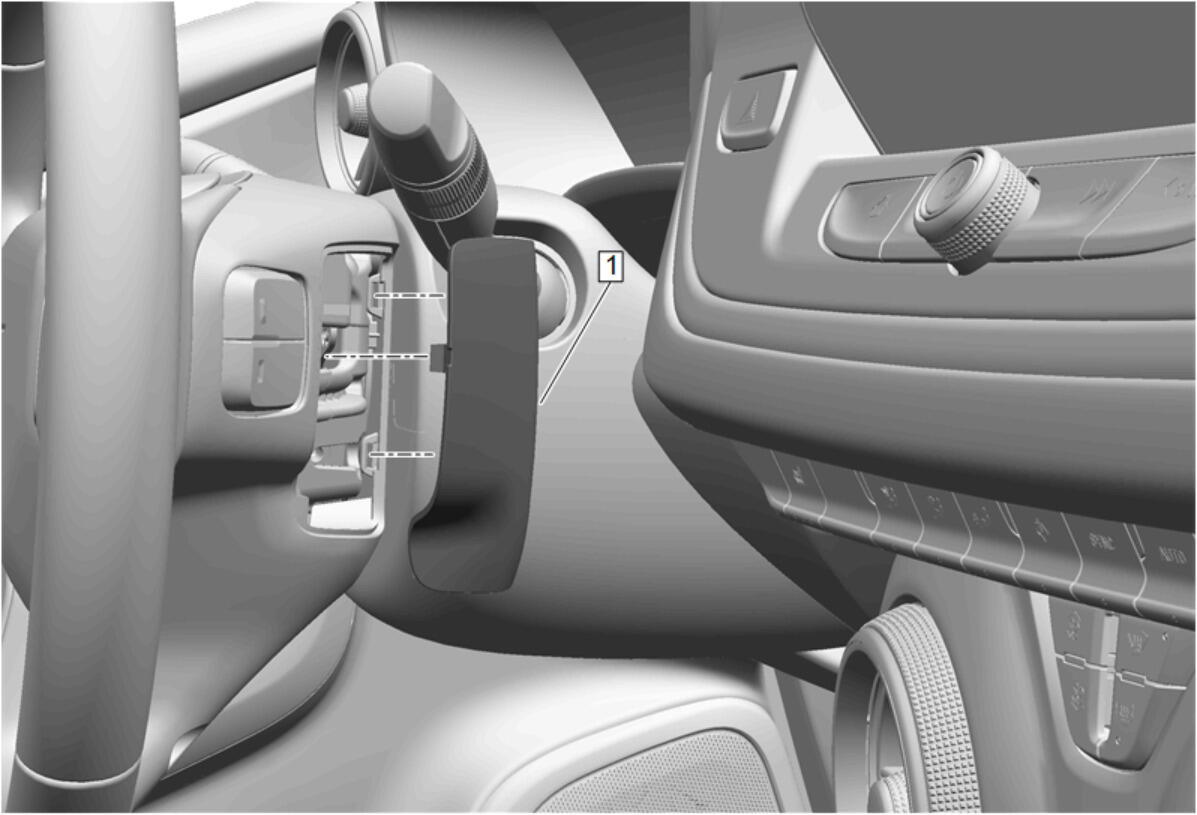

  5. GM5131762Courtesy of GENERAL MOTORS COMPANY

    Install the 2 steering wheel airbag access hole covers (1). Steering Wheel Airbag Access Hole Cover Replacement
