Removal Procedure

NOTE:

Some components not shown for graphic clarity.

Steering Column Lower Trim Cover - Remove - Steering Column Lower Trim Cover Replacement (N37) , or Steering Column Lower Trim Cover Replacement (N38)
Courtesy of GENERAL MOTORS COMPANY

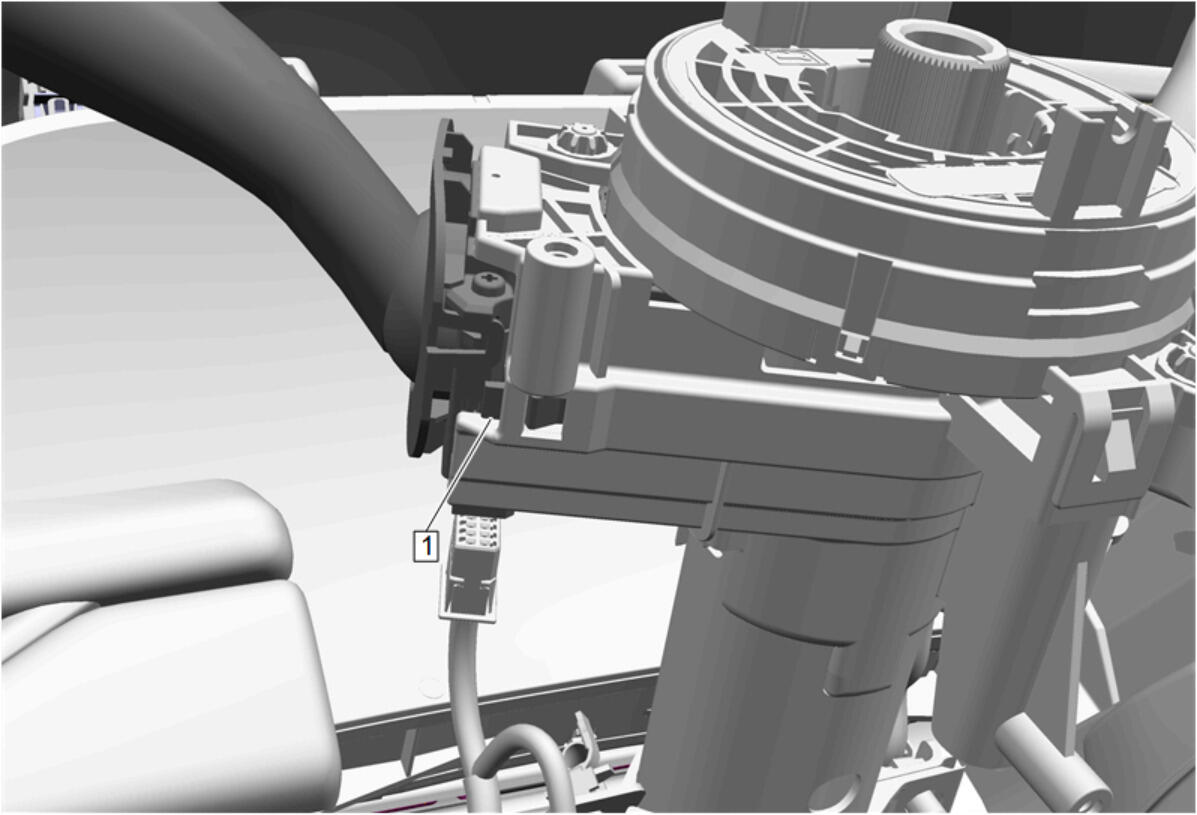

Disengage the turn signal switch lower retaining tab (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

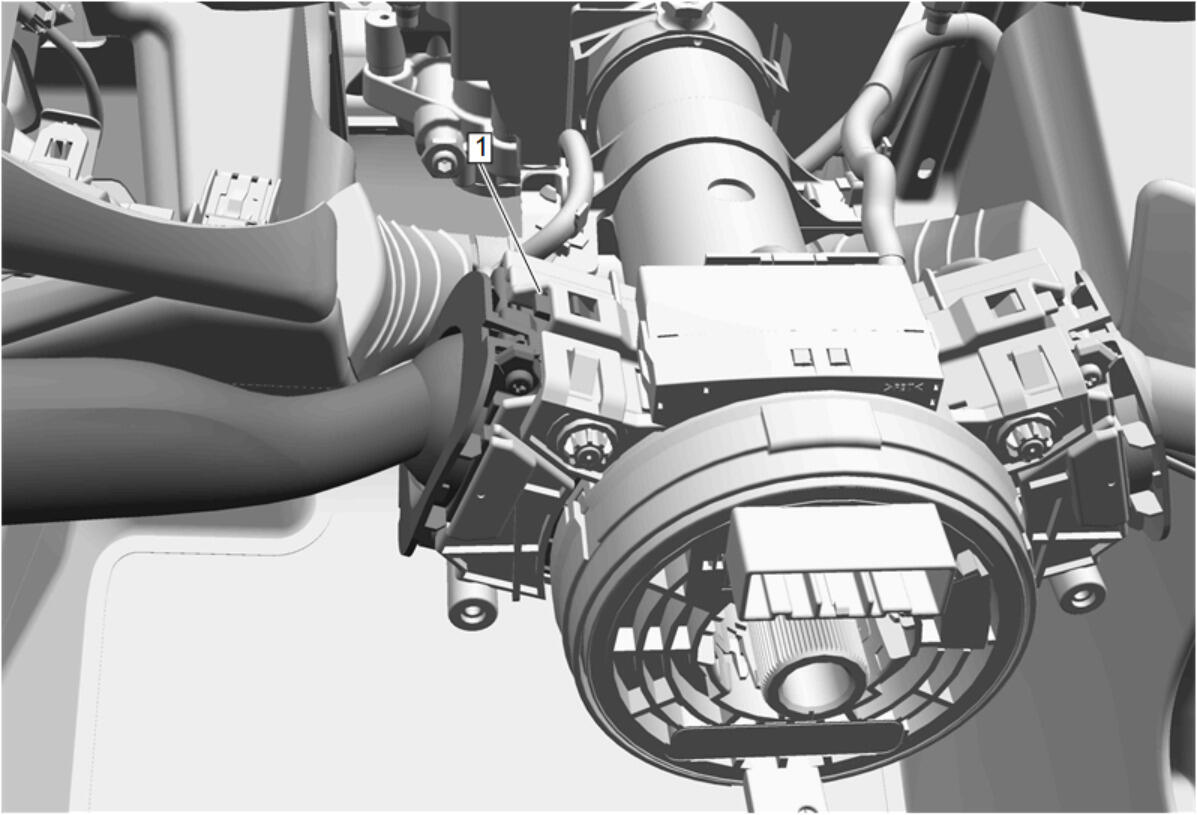

Disengage the turn signal switch upper retaining tab (1).
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector.
Turn Signal Switch (1) - Remove
