Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

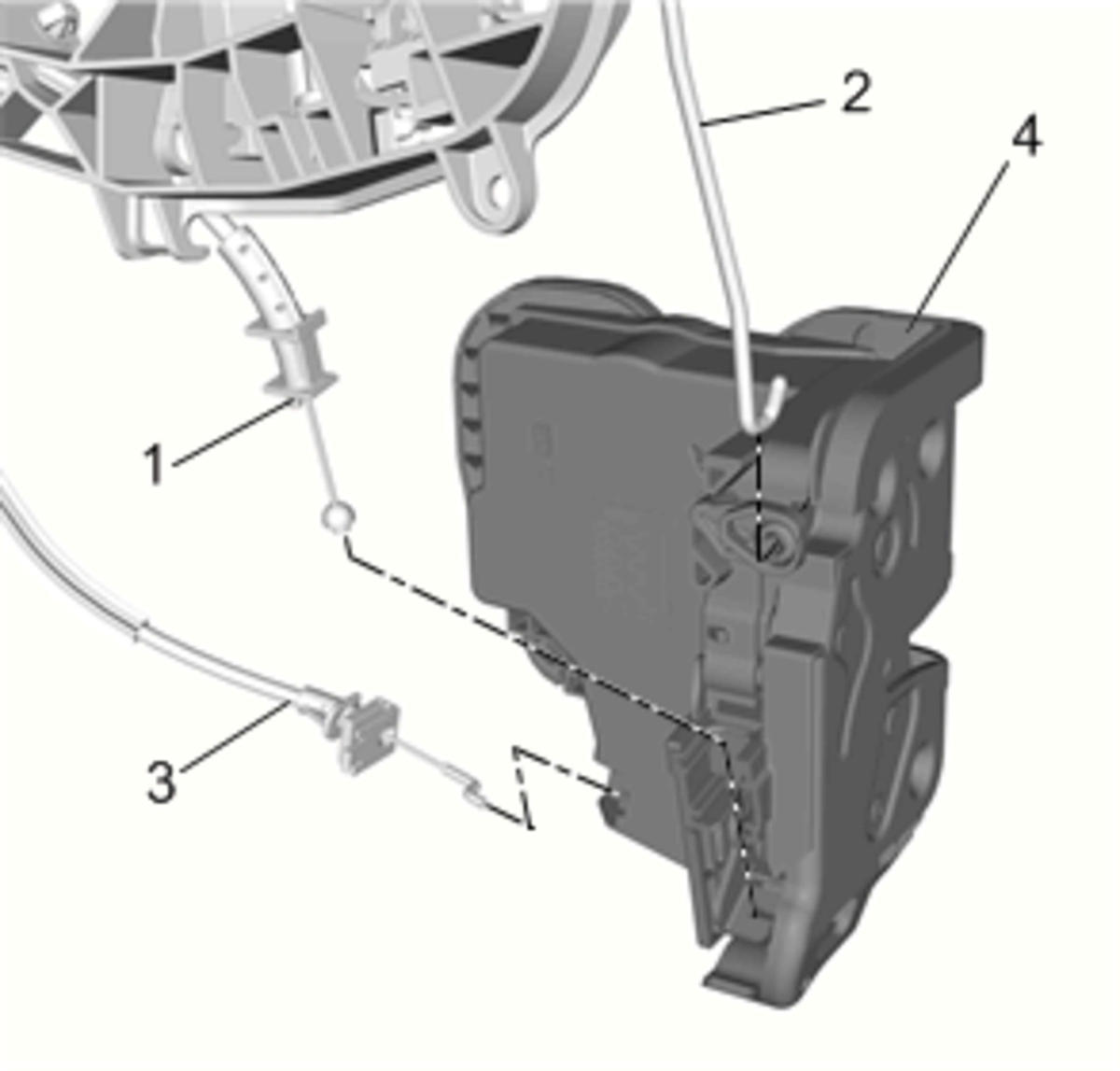

Front Side Door Outside Handle Cable (1) @ Front Side Door Latch (4) - Install - Front Side Door Outside Handle Cable Replacement

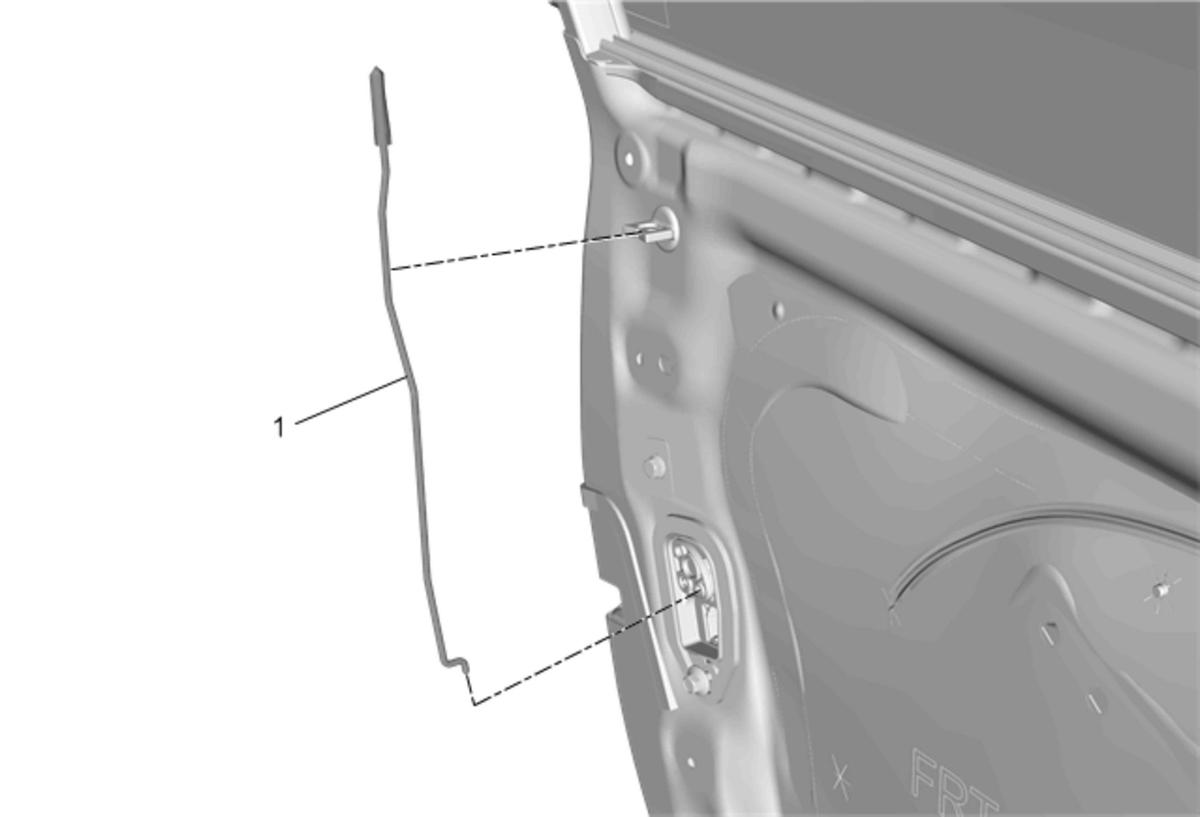

{ If equipped } Front Side Door Lock Cylinder Rod (2) @ Front Side Door Latch (4) - Install - Front Side Door Lock Cylinder Rod Replacement
Front Side Door Inside Handle Cable (3) @ Front Side Door Latch (4) - Install - Front Side Door Inside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

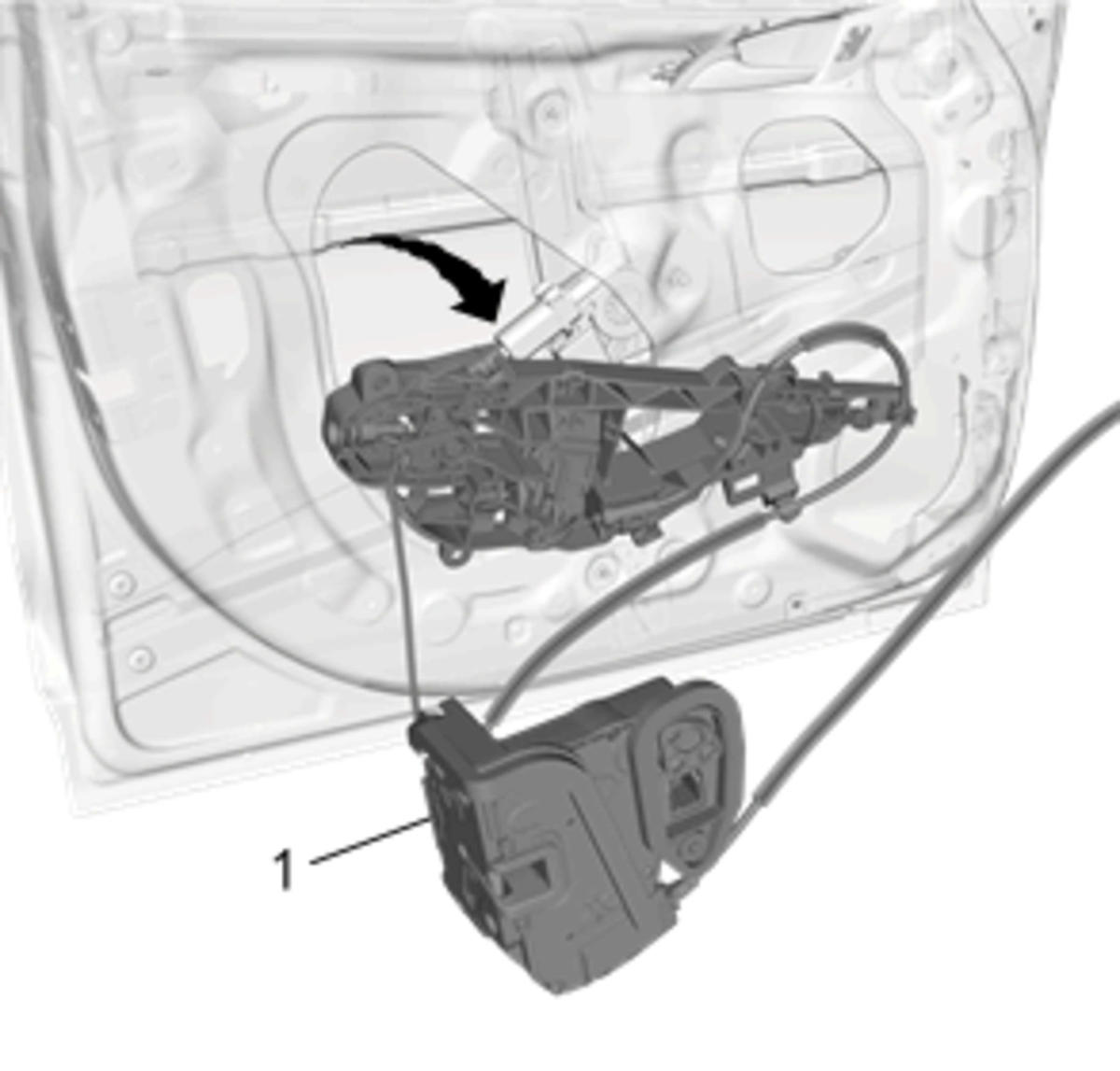

Install the front side door latch with front side door outside handle bracket to the front side door.
Connect and clip the electrical connector in place.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

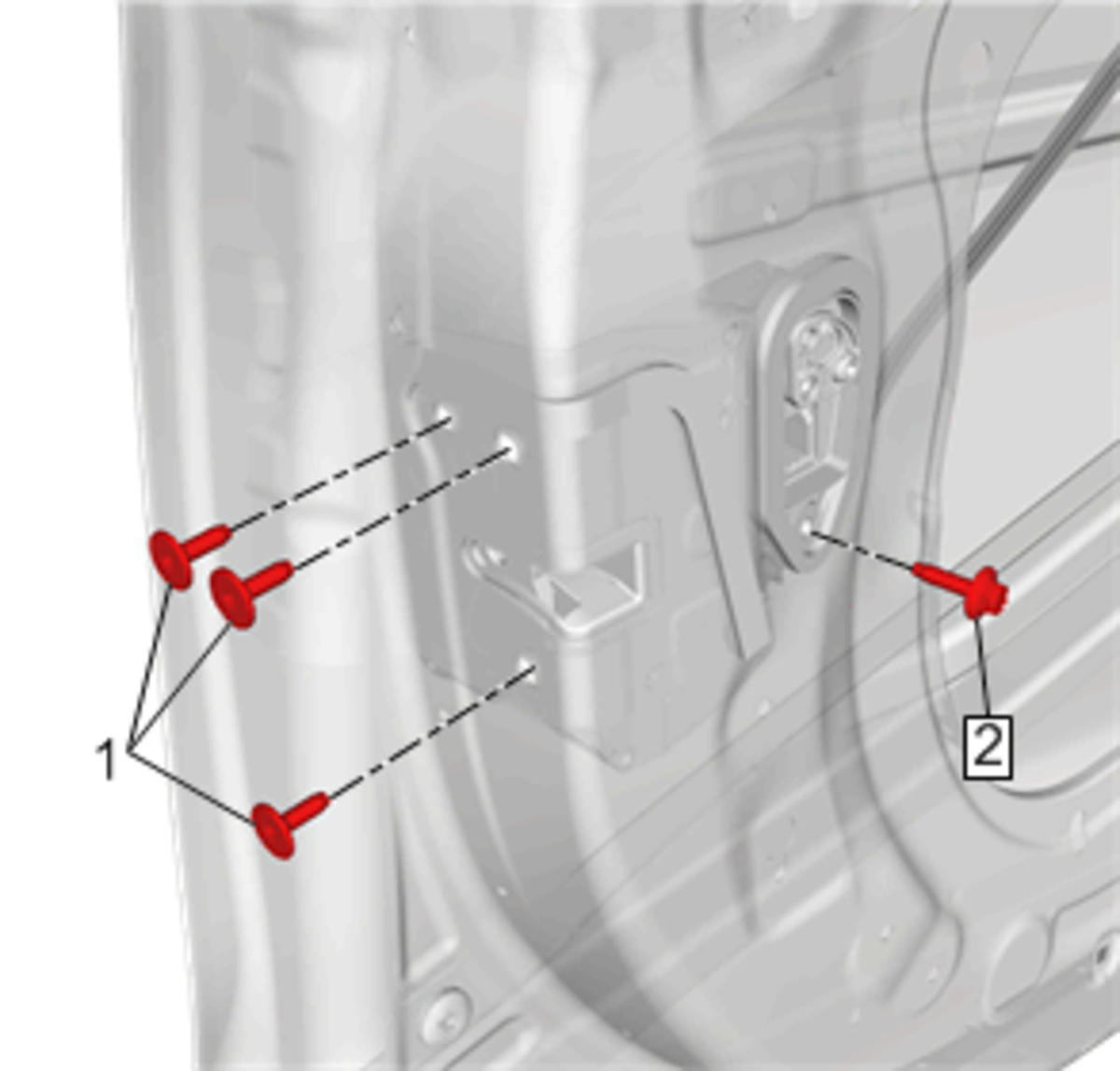

Front Side Door Latch Fastener (1) - Install and tighten [ 3x ] 9 N.m (80 lb/in)
Front Side Door Latch Fastener (2) - Install and tighten 9 N.m (80 lb/in)
Courtesy of GENERAL MOTORS COMPANY

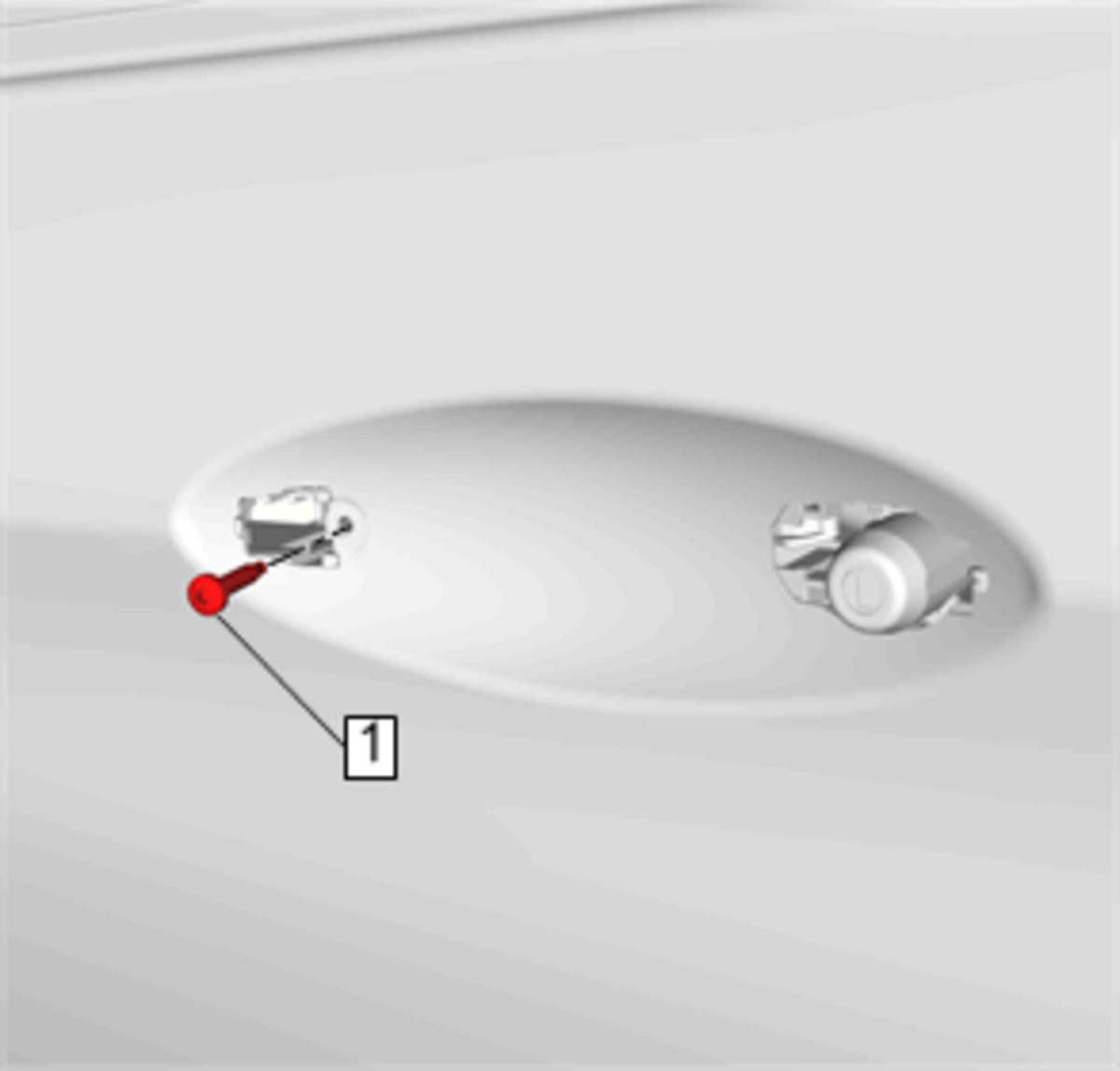

Front Side Door Outside Handle Bracket Fastener (1) - Install and tighten 5 N.m (44 lb/in)
Courtesy of GENERAL MOTORS COMPANY

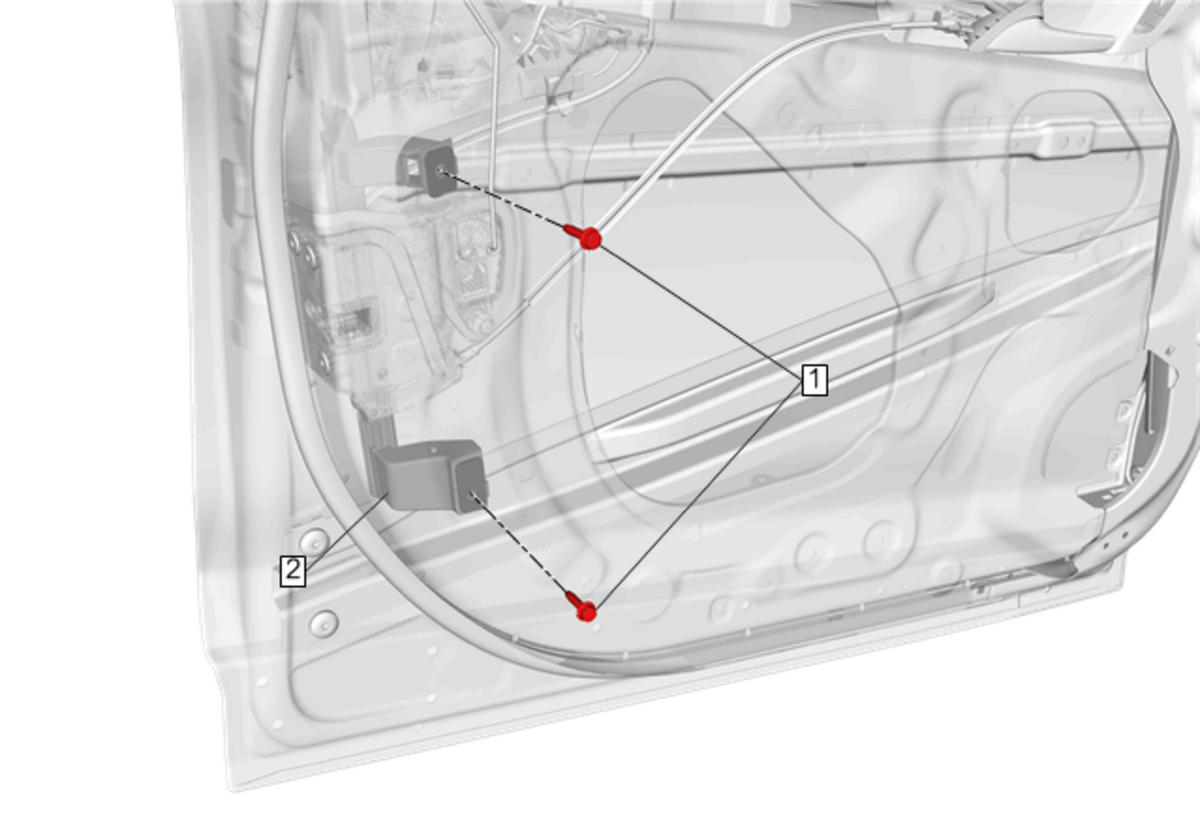

Front Side Door Window Channel Retainer (2) - Install - Front Side Door Window Channel Retainer Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle (1) - Install - Front Side Door Outside Handle Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Locking Rod Knob (1) - Install - Front Side Door Locking Rod Knob Replacement
Courtesy of GENERAL MOTORS COMPANY

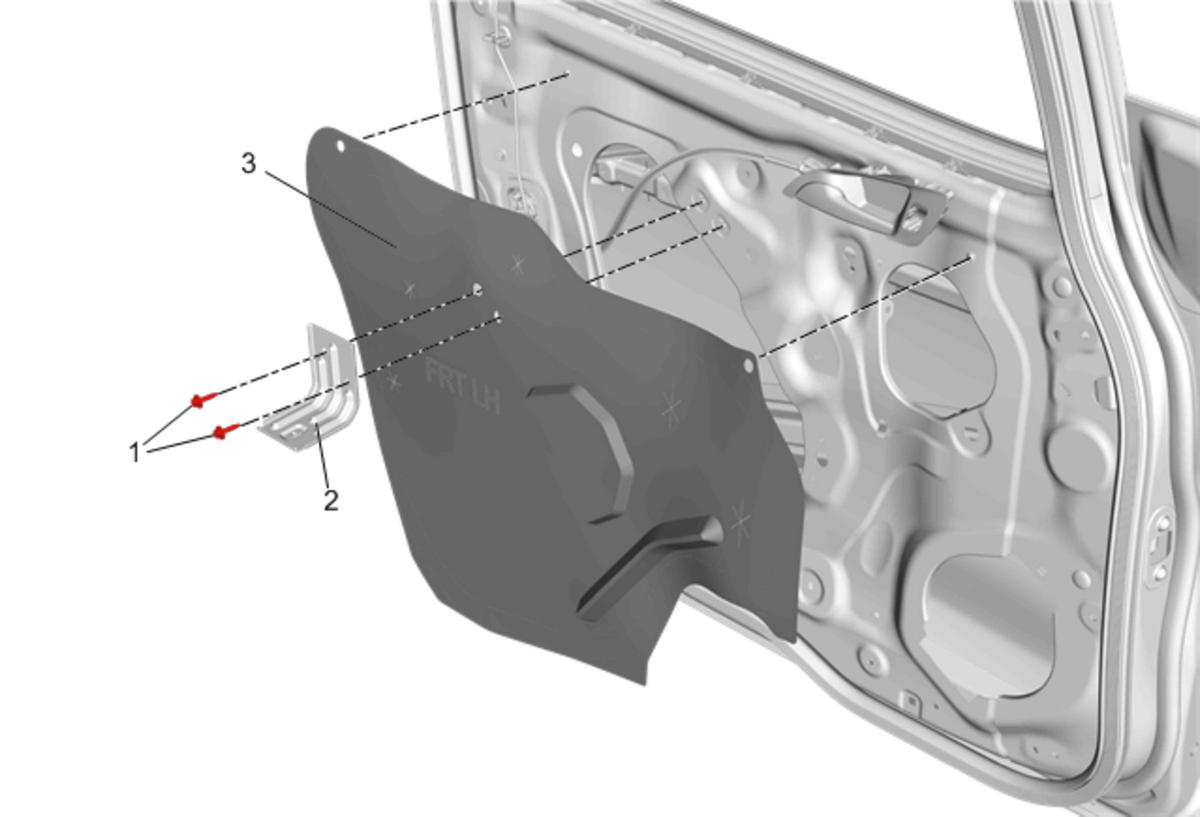

Front Side Door Water Deflector (3) - Install - Front Side Door Water Deflector Replacement

NOTE:

Ensure that the door lock system operates properly before installing the trim.
