Front View Driver Information Camera Bracket Replacement

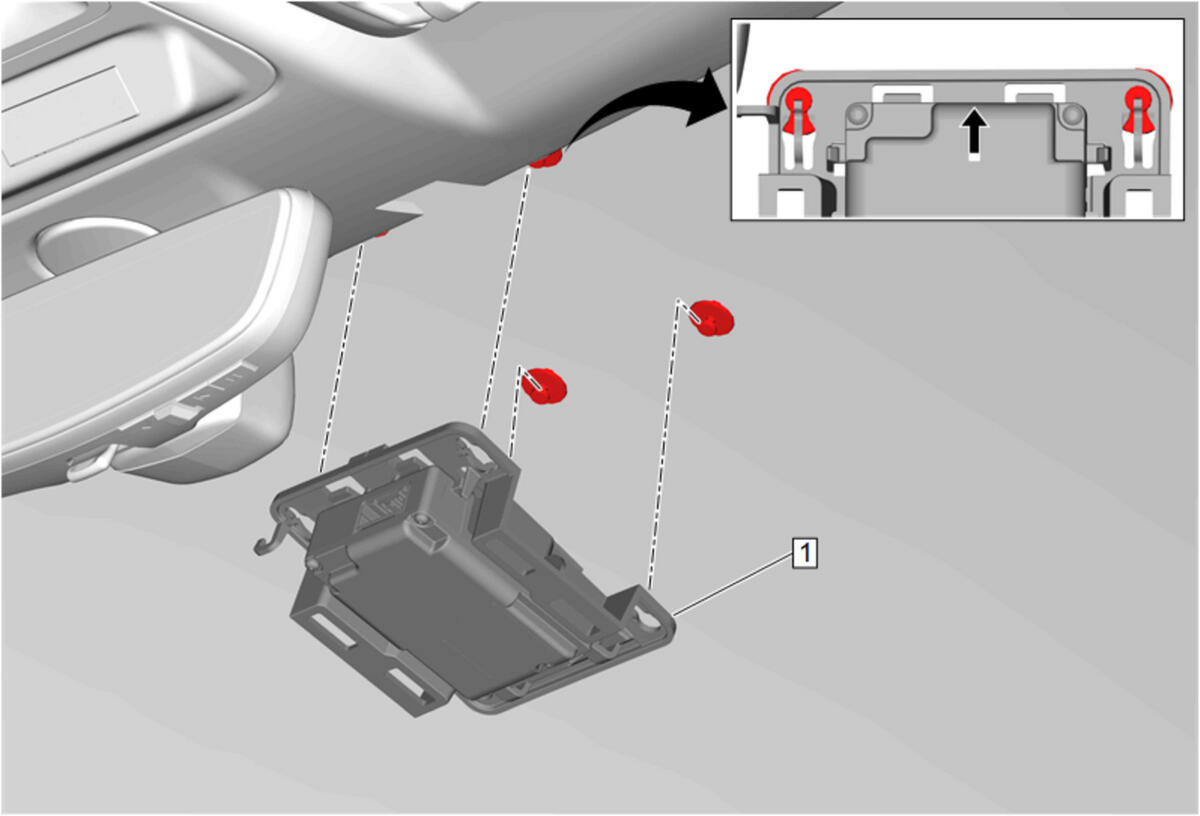

GM5092282

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Windshield Multifunction Sensor Mount Bracket Cover Replacement (Without UEU) , or Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UEU)

1

Front View Driver Information Camera Bracket

Procedure

Disconnect the electrical connector.
Release the retaining tabs and slide the bracket upward to disengage pins. Gently pull from windshield.
Transfer components as necessary.
Ensure the inside of the windshield is clean before reinstalling the bracket.

NOTE:

Do Not remove or service the sensor farm pins.
