Door Lock Switch Replacement - Passenger Front

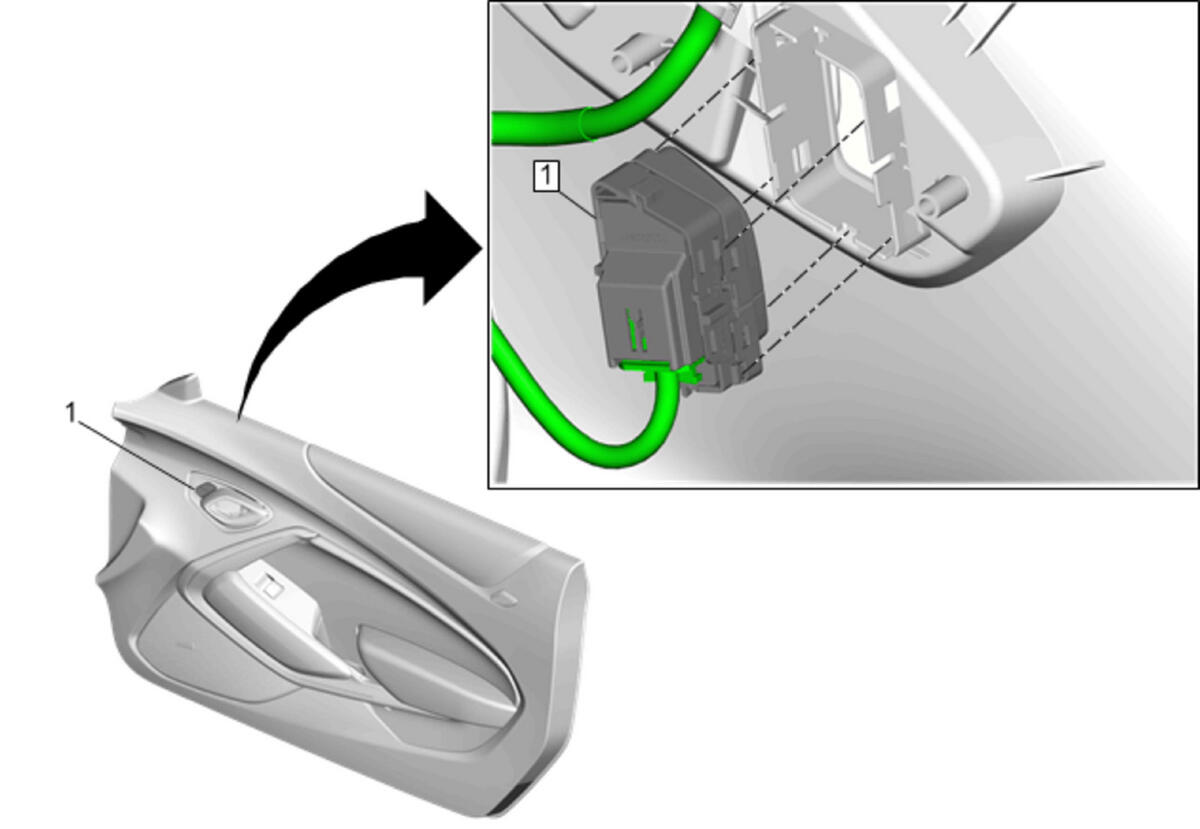

GM4194704Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Side Door Trim Replacement
  2. Reposition front side door trim sound dampener fabric.
1 Door Lock Switch Passenger Front

Procedure

  1. From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.
  2. Disconnect the electrical connector.
  3. Control Module References for programming and setup information, if required.
