Installation Procedure

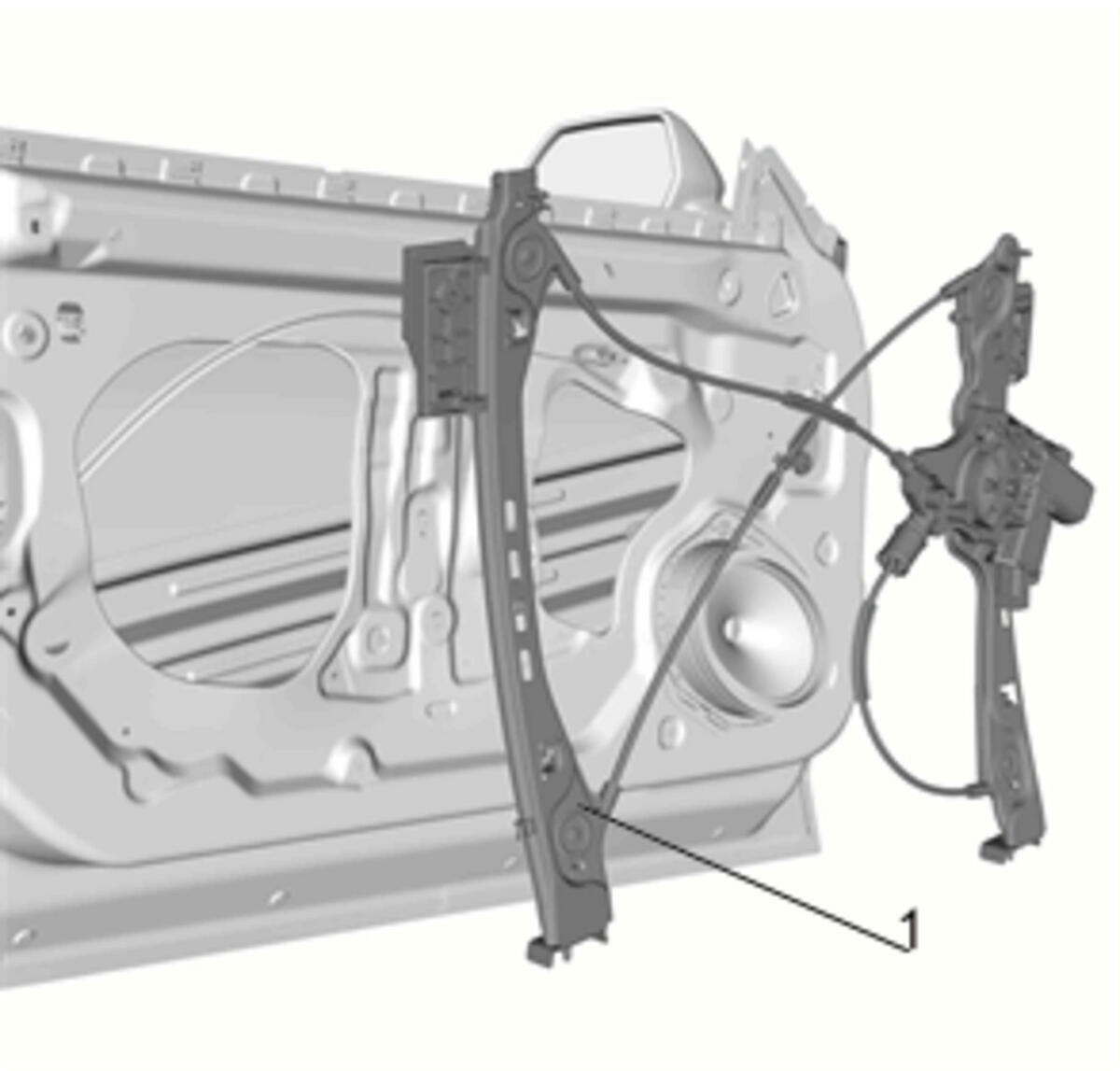

  1. GM4170671Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Regulator (1) - Install

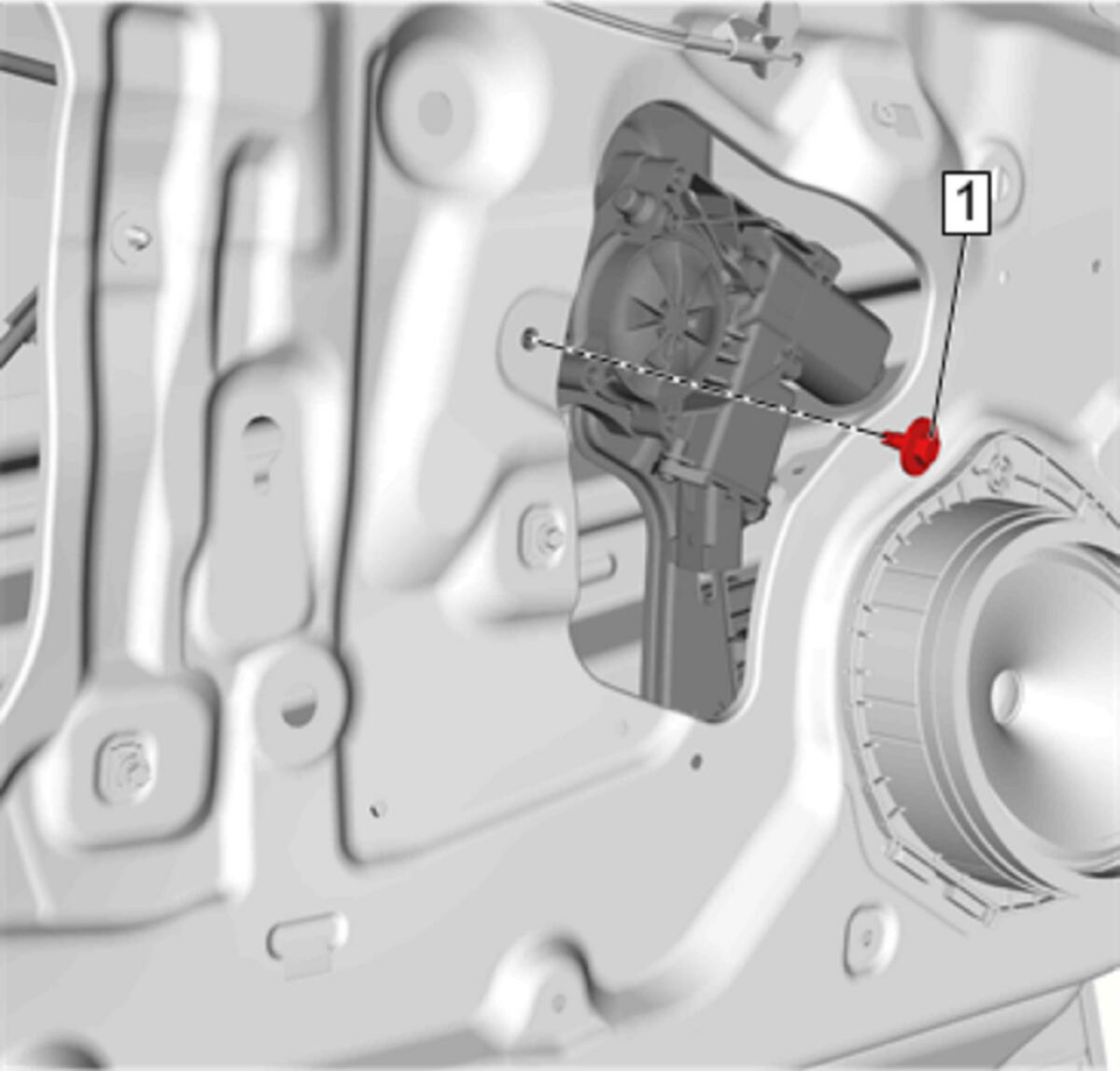

  2. GM4373853Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Regulator Bolt (1) - Install and tighten 10 N.m (89 lb in)

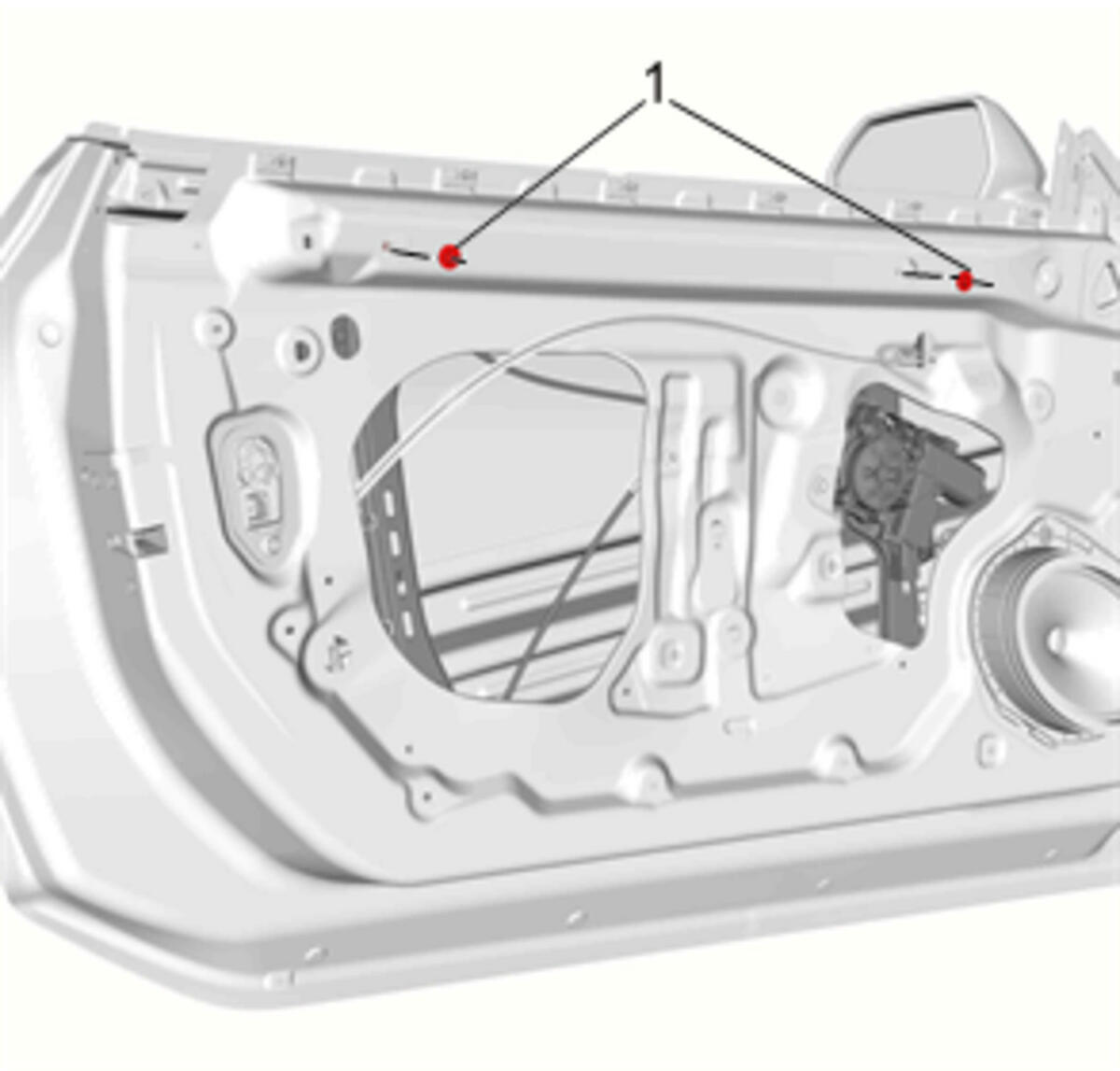

  3. GM4170666Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Regulator Upper Nut (1) - Install and tighten [2x] 10 N.m (89 lb in)

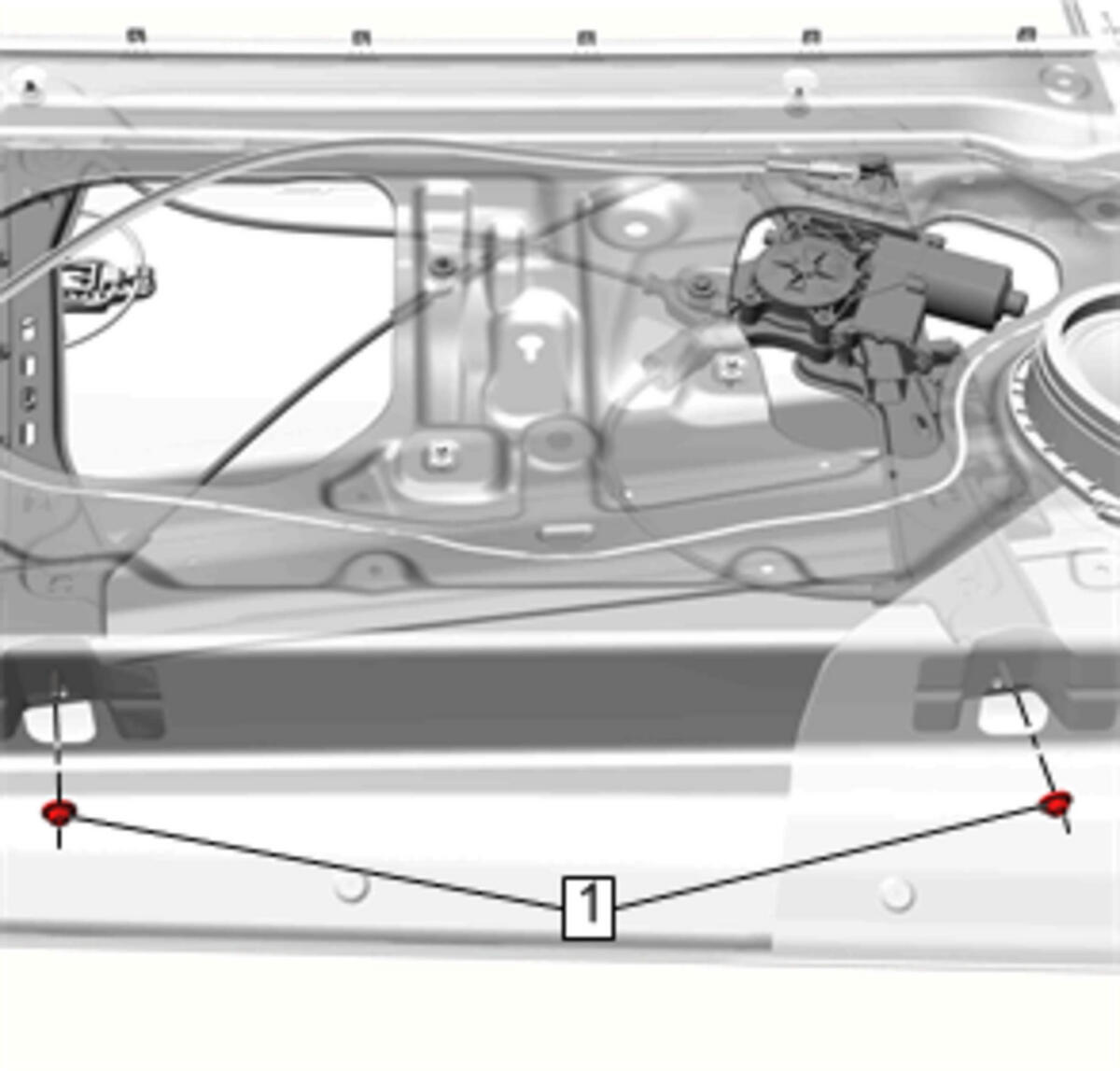

  4. GM4170650Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Regulator Lower Nut (1) - Install and tighten [2x] 10 N.m (89 lb in)

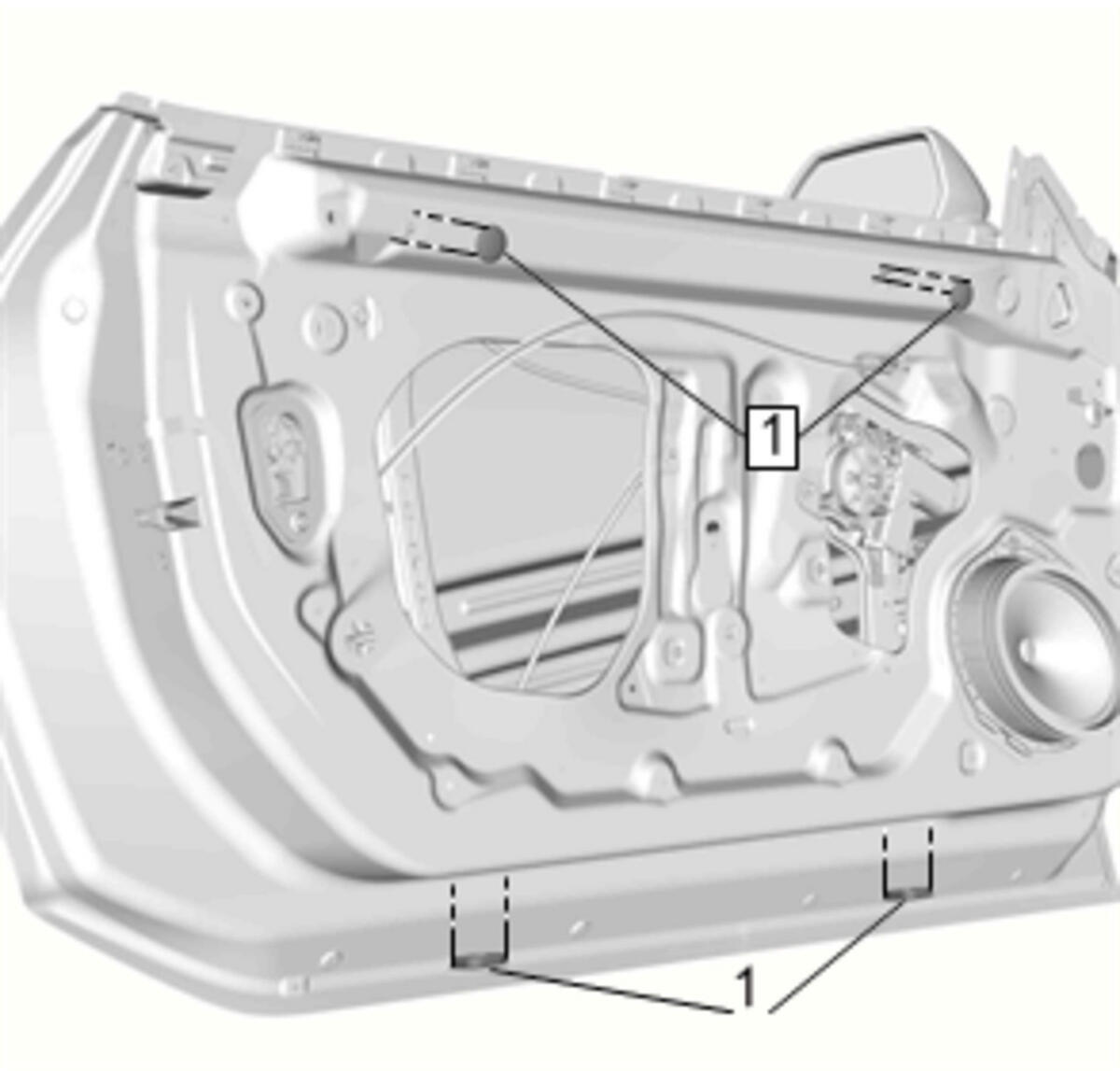

  5. GM4170657Courtesy of GENERAL MOTORS COMPANY

    Door Plug (1) - Install [4x]

  6. Connect the electrical connector.
  7. Front Side Door Window Replacement  - Install
  8. After installation, program the window regulator motor. Window Motor Programming - Express Function
