Quarter Window Regulator Motor Replacement

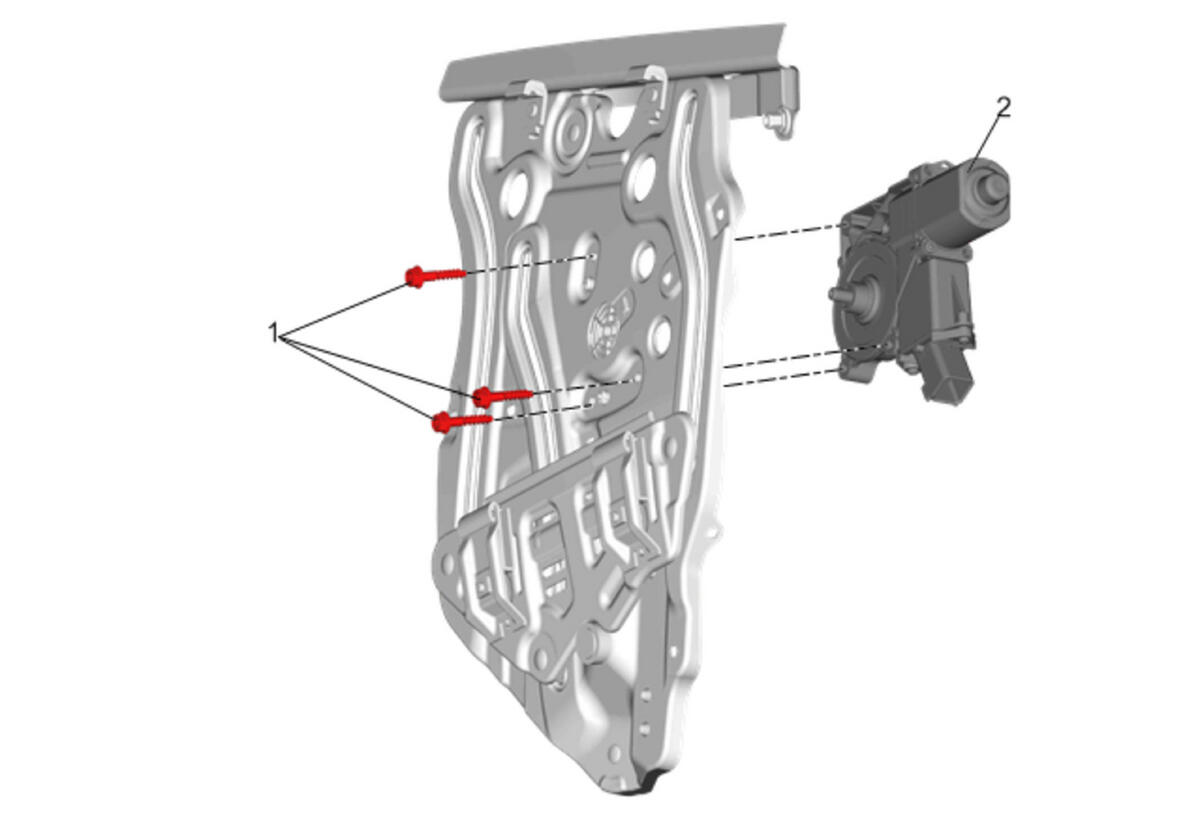

GM4175340Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Quarter Window Regulator Replacement
1 Quarter Window Regulator Motor Screw [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Quarter Window Regulator Motor

Procedure

  1. Disconnect the electrical connector.
  2. When installing the regulator motor ensure the gear washer is in place.
  3. Window Motor Programming - Express Function
  4. Inspect the quarter window for proper operation before securing the quarter trim.
