Removal Procedure
- Rear Compartment Lid - Open
- Rear window lower seal - Remove
- Electrical connectors - Disconnect
- Cover to protect the following parts from broken glass:
- Upper dash pad
- Defroster outlets and A/C outlets
- Seats and carpeting
- Using the appropriate tool, carefully cut around the lace, start in the center working from side to side of the window to access the urethane adhesive bead, if equipped.
- NOTE:
Keep the cutting edge of the tool against the window.
This will allow the urethane adhesive to be separated from the window.
- Leave a base of urethane on the pinchweld flange.
- The only suitable lubrication is clear water.
- BO-24402-A Glass Sealant Remover (Cold Knife).
- Use commercially available glass cutting tool.

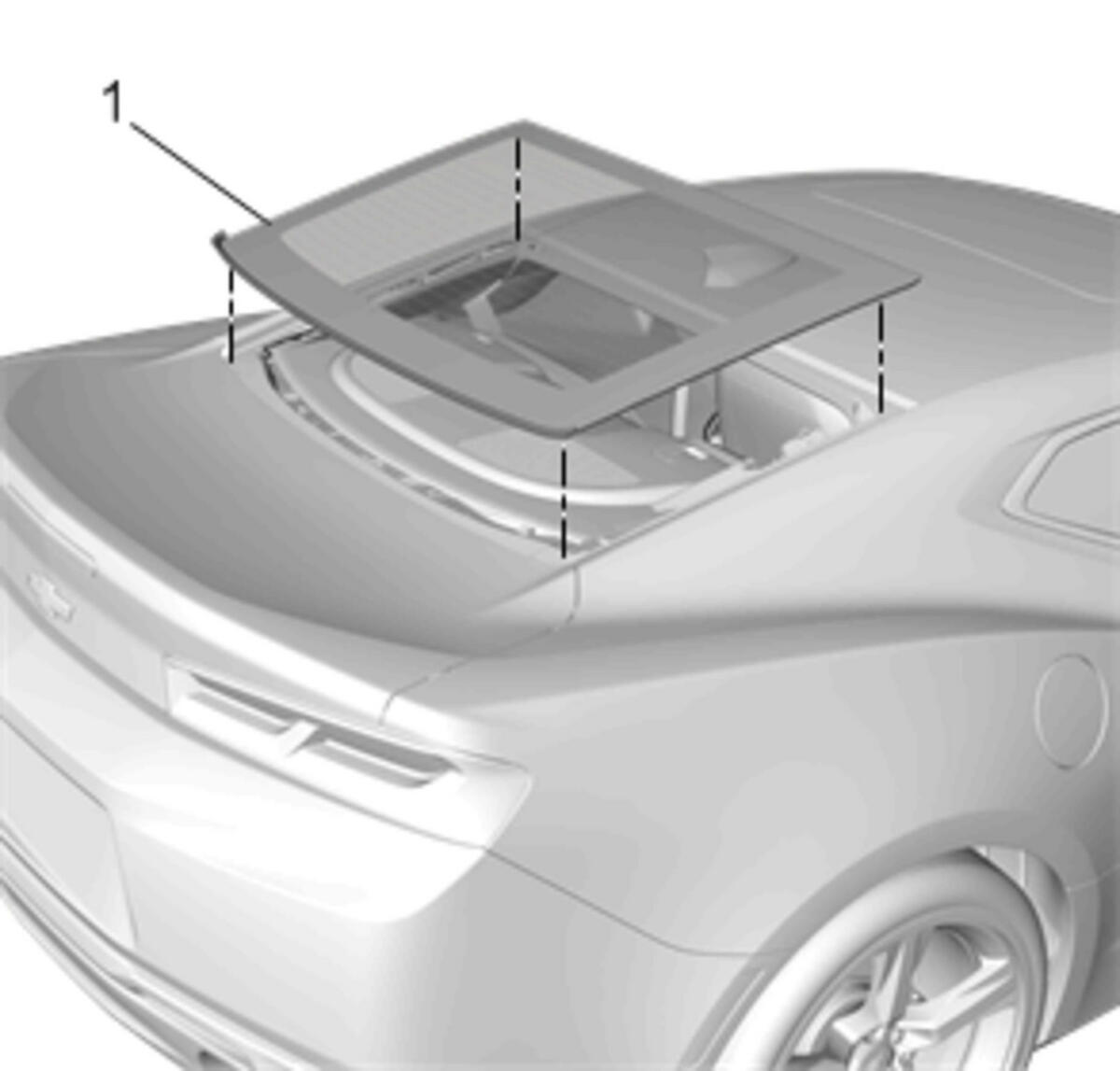

With the aid of an assistant lift the rear window (1) from the opening.
WARNING:
If a window is cracked but still intact, crisscross the window with masking tape in order to reduce the risk of damage or personal injury.
NOTE:
Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and inner trim.
WARNING:
If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.
WARNING:
Refer to Glass and Sheet Metal Handling Warning .
